1 INTRODUCTION

Adverse drug reactions (ADRs) represent a significant risk to patient safety according to a recent report {R1} . A recent National Patient Safety Agency (NPSA) report quoted a study which found that an estimated 6.5% of hospital admissions are due to an adverse drug reaction {R1} .

Currently, information about a patient’s propensity (that is, risk) for suffering an ADR to a given drug is not recorded or displayed consistently across the NHS, which could result in its ambiguous or incomplete communication.

This guidance aims to support clear and unambiguous communication of the known ADR risks for a patient which is also appropriate for a wide range of settings throughout the NHS.

Clinical software applications that record or display ADR risks must provide sufficient information to allow the user to make good clinical decisions, such as:

• Whether to prescribe a medication

• Whether to take additional actions (such as administering the drug in a hospital).

The users must also be able to determine whether the patient’s current symptoms are attributable to an ADR.

This guidance is written with the assumption that the display of a list of ADR risks would be featured in clinical applications in addition to automatic warning alerts based upon Decision Support Systems (DSS). Therefore, the guidance scope does not cover such DSS alerts and the reader should not assume that the designs in this document would remove the need for such alerts.

Another important issue associated with the recording and subsequent display of adverse drug reactions is that of maintaining data quality. In writing this guidance, attempts have been made to ensure that data display requirements do not encourage poor data quality at the point of entry. For example, this guidance does not require the display of data that is unavailable to the clinician who enters the risk. Also, this guidance mandates that the application faithfully reflects certain key data, such as the causative agent of the reaction risk, in the form in which it was entered. The issue of maintaining ADR risk data quality is a theme which will be usefully addressed in any future work addressing user interface design for entering ADR risks.

Important

The visual representations used within this document to display the guidance are illustrative only. They are simplified in order to support understanding of the guidance points. Stylistic choices, such as colours, fonts or icons, are not part of the guidance and, unless otherwise specified, are therefore not mandatory requirements for compliance with the guidance in this document.

1.1 Definitions of Adverse Drug Reactions

The World Health Organisation defines ‘adverse drug reactions’ as “any response to a drug which is noxious and unintended, and which occurs at doses normally used in humans for prophylaxis, diagnosis, or therapy of disease, or for the modification of physiological function” {R2} . In other words, in normal cases, the drug itself is not toxic, but for some patients, the drug will provoke a negative physiological response.

However, beyond this general notion of what is an adverse drug reaction, there are many sub-definitions and opposing classifications.

Page 1

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Many taxonomies categorise adverse drug reaction risks according to whether they are immunologic-mediated or not. Some also make the distinction between Type A (pharmacological) and Type B (hypersensitivity). For example, Figure 1 shows a classification of adverse drug reactions from the Medical Journal of Australia {R5} :

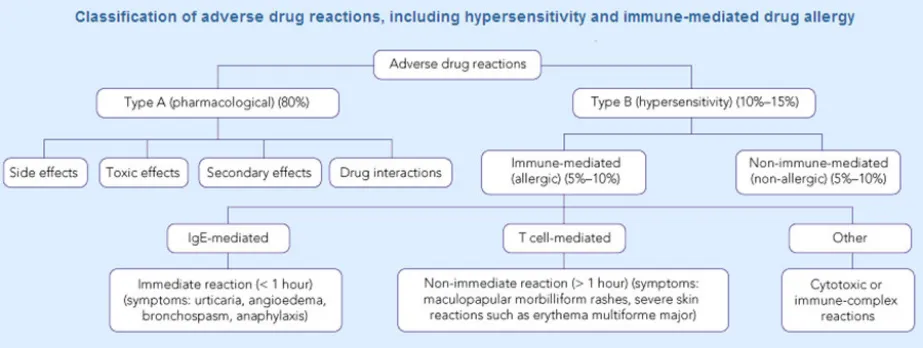

Figure 1: Classification of Adverse Drug Reactions

Another report describes how there are multiple sub-groups within the category of immunological reactions alone, the most common being Type 1, or “allergy”, and that immunological reactions only account for 5-10% of adverse reactions {R13} .

It would be fair to say that most clinicians would not be familiar with such a detailed classification. NHS Connecting for Health (NHS CFH), who commissioned this guidance, categorises adverse drug reactions into three categories:

1. Allergic drug reaction

A response to a pharmaceutical product to which an individual has become sensitised, in which histamine, serotonin and other vasoactive substances are released, in response to an immune system-mediated reaction.

This causes systemic symptoms which can include pruritus, erythema, flushing, urticaria, angio-oedema, nausea, diarrhoea, vomiting, laryngeal oedema, bronchospasm, hypotension, cardiovascular collapse and death.

2. Adverse drug reaction

A response to a pharmaceutical product which is noxious and unintended and which occurs at doses normally used in man for prophylaxis, diagnosis, or therapy of disease or for modification of physiological function.

3. Drug intolerance

An undesirable effect produced by the pharmacological actions of a pharmaceutical product at therapeutic or sub-therapeutic dosages and which prevents the patient from tolerating treatment with that product.

1.2 Risks versus Events

This guidance will take the approach that an adverse drug reaction can be expressed in terms of an actual reaction event or in terms of a future risk to the patient. As will be shown later in the document, this is an important distinction, given that a patient can experience a reaction (event) without the clinician believing that the drug represents a serious future risk; or, conversely, the clinician may wish to record that the patient is at risk of adversely reacting to a given medication, even if the details of any past reaction are not known. For example, the patient may tell the clinician that they are allergic to penicillin, but are not able to recall any specific reaction event to justify this

Page 2

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

risk. The clinician may therefore wish to record this as a risk and not an event. Obviously, the confusion of ‘risk’ and ‘event’ at this point could be dangerous as future readers of the risk information could place undue confidence in the risk if they think that the clinician has witnessed a reaction in the patient.

Therefore, this guidance distinguishes between the risk of a future reaction and the event of past reaction, but acknowledges that these two sets of data are intimately linked and that this should be reflected in the user interface.

1.3 Customer Need

Avoiding known adverse reactions to drugs is a well-recognised and important goal within the NHS. Communicating the risk of a drug to a specific patient is an important step in achieving this.

To achieve this communication, the user must be able to:

• Check if the patient is believed to be at risk of suffering adverse reactions if they are administered one or more drugs, or if there is a stated absence of risks for that patient.

• Decide if one or more adverse drug reactions should influence the current clinical decision

• Predict what additional actions should be taken in response to the risk of one or more adverse drug reactions

In order to prevent the administration of drugs known to be dangerous to a patient, the NHS must ensure that their clinicians are provided with sufficient information to:

• Identify the presence or confirm the positive absence of adverse drug reactions

• Determine the previous outcomes (including reaction) of the drug being administered

• Form an opinion on future outcomes if the drug is again administered.

1.4 Scope

1.4.1 In Scope

Structure of list Guidance on how the list is structured and ordered.

Content of risk phrase Guidance on the information that needs to be included in the expression of an adverse drug reaction risk.

The information is prioritised: some information must be immediately visible, whereas other information can be available upon interrogation by the user (for example, a click away).

Content of supporting events, including previous adverse reaction events (high level)

Guidance on the supporting information that may be featured to justify the risk phrases, including adverse reaction events. This guidance addresses content at a high level rather than at a detailed level.

Format of list Guidance on how to format the words and phrases within the list, including tabular arrangement, punctuation and text formatting.

Justification of risks Guidance on how to display justification of risks. This information may be encoded or may be free text, and may include details of the reaction events that support the expression of a risk. The guidance outlines the types of information that should be available, but without specifying the precise structure or content of the information.

Displaying dates and times Guidance on which dates and times to display, where and how to display them.

Displaying source of risk Guidance on how to communicate the source of the risk, such as whether a clinician witnessed a reaction or the patient recounted a risk or event.

Displaying authorship of risk Guidance on communicating the author of a risk, including their name, role and location

Page 3

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

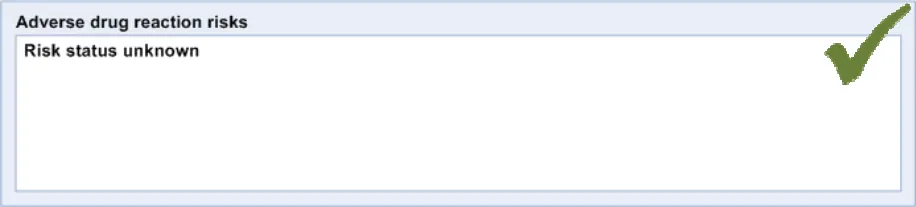

Communicating absence of risks Guidance on communicating where no risks have been recorded, including:

           - Where a positive absence has been recorded (for example, ‘no known drug allergies’)

           - Where the patient has not been asked

           - Where information is simply not available

No Decision Support Guidance on communicating where a risk will not trigger Decision Support mechanisms, including alerts, because the risk is either not encoded (that is, it is free text) or because the causative agent in the risk is not included in the Decision Support reference list.

Displaying risks in narrative text Guidance on how to display risk phrases as part of narrative text, as opposed to in a list/table.

Table 1: In Scope

1.4.2 Out of Scope

Content and structure of adverse drug Guidance does not cover the content or structure of the adverse drug reaction events that reaction event details support the risk phrases. It will not specify what detailed information must be included in the description of a reaction event.

However, the guidance will cover how to show reaction event summaries and will use examples of detailed reaction event descriptions to show how events may be displayed as justification for the risks that they support.

System-initiated adverse drug reaction Guidance does not cover adverse drug reaction warnings and alerts. warning and alert messages

Dealing with long lists of adverse drug Guidance does not cover how to deal with long lists of adverse drug reaction risks. reaction risks

Displaying an abbreviated status of a Guidance does not cover how to display an abbreviated status of a patient’s ADR risks, such patient’s ADR risks as an entry on a patient’s identification banner.

Table 2: Out of Scope

1.5 Assumptions

A1 The structured terminology used as exemplars for this guidance will be SNOMED CT [®] and the Dictionary of Medicines and Devices (dm+d).

A2 Appropriate subsets within SNOMED CT and dm+d are available.

A3 The user interface design should follow the agreed NHS CFH position on the structure of ADR notes, unless there are patient safety reasons not to do so.

A4 The application will be able to recognise that the encoded terms ‘allergy to penicillin’ and ‘intolerance to penicillin’ are subtypes of ‘propensity to adverse reaction to penicillin’.

Table 3: Assumptions

Page 4

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

1.6 Dependencies

D1 The availability of appropriate data sets, for example, SNOMED CT subsets

D2 The following CUI guidance documents. Changes in these documents may affect the current guidance:

- Design Guide Entry – Date Display

- Medications Management – Medication Line – User Interface Design Guidance

- Displaying Graphs and Tables – User Interface Design Guidance

- Design Guide Entry – Terminology – Display Standards for Coded Information

D3 Certain guidelines are dependent upon the fact that the medication terminology used contains the same length terms as the current version of the dm+d

Table 4: Dependencies

Page 5

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

2 GUIDANCE OVERVIEW

2.1 Visual Summary of the Guidance

The following section provides a diagrammatic representation of the design guidance, emphasizing the process flow and introducing where in the flow the various guidance areas apply.

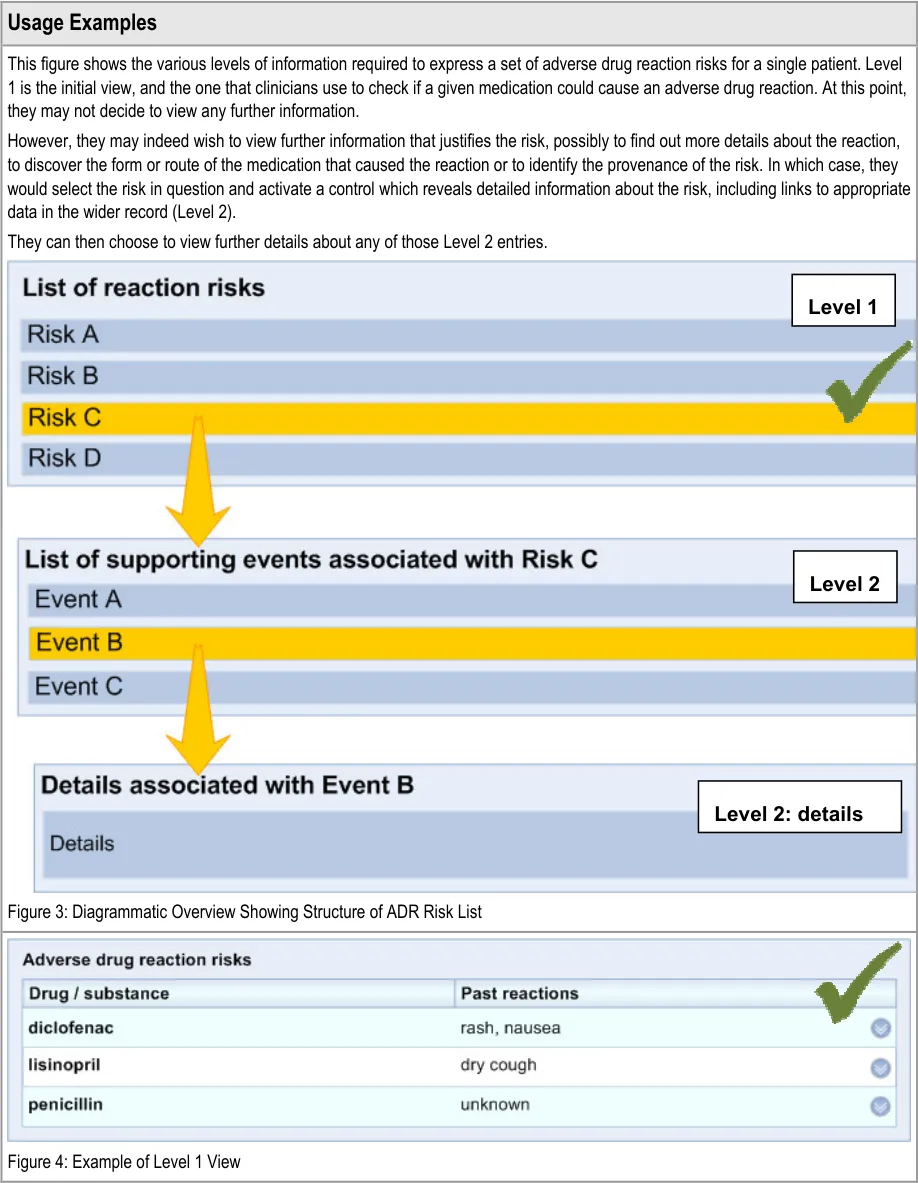

Figure 2 provides an overview of the ADR display, in this case shown as a list (views are discussed later in this document):

3.3.1 Structure of adverse drug reaction risk list

3.3.2 Content of adverse drug reaction risk list

3.3.4 Format of list

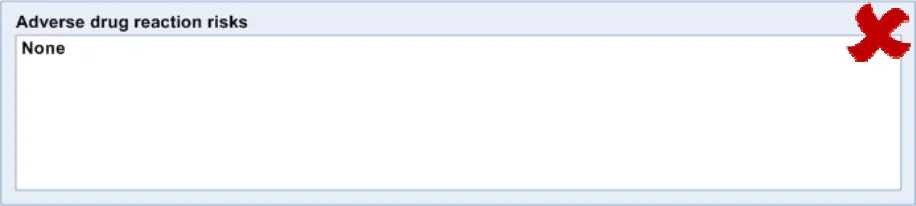

3.3.8 Displaying absence of risk

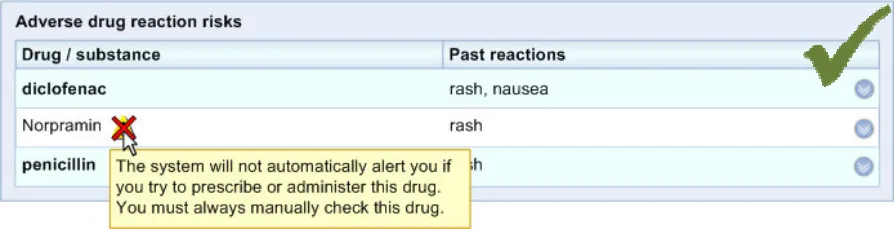

3.3.9 Displaying no Decision Support

3.3.1 Structure of adverse drug reaction risk list

3.3.2 Content of supporting events (high level guidance)

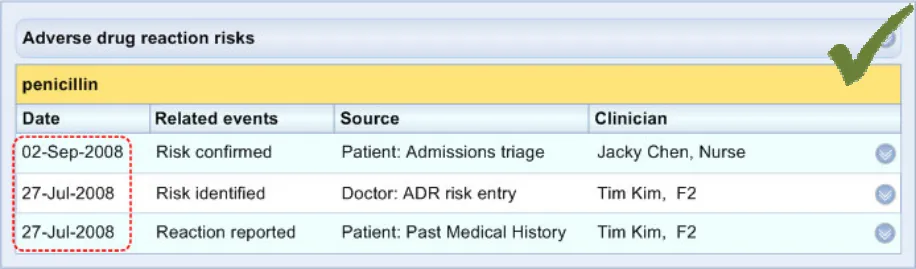

3.3.5 Displaying dates/times

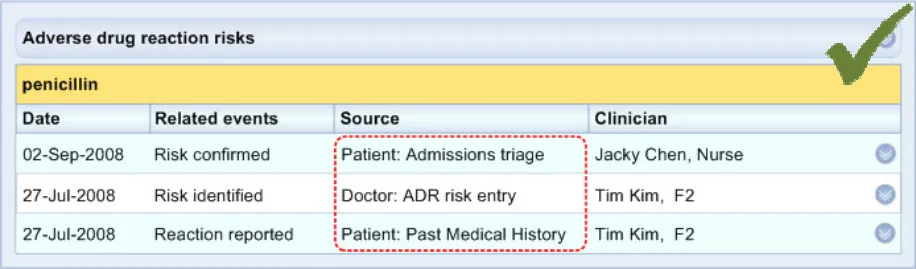

3.3.6 Displaying source of risk

3.3.7 Displaying authorship of risk

3.3.1 Structure of adverse drug reaction risk list

Figure 2: Diagrammatic Overview of the Structure of the Adverse Drug Reaction Risk Display

Note

Section 3.3.10 is not featured in this diagram. That section shows how to apply the guidelines to a narrative text format.

Page 6

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

3 GUIDANCE DETAILS

3.1 Introduction

The guidance in this document covers the structure of the list used to display the adverse drug reaction risks, the content of the risk phrases, the display of supporting event phrases and the display of sufficient provenance information and appropriate formatting.

The guidance in this document is based upon a programme of research, including:

• A Web-based survey of clinicians

• One-to-one interviews with a range of health care professionals

• An opening risk assessment with clinicians

• A closing risk assessment with clinicians

3.2 Principles

The following key principles inform the guidance in this document:

• Display sufficient content to allow users to act appropriately

• Minimize content in order to reduce the risk of misleading the user:

  • Where the meaning of content is ambiguous

  • Where the content is irrelevant to the users’ decision-making needs

• Distinguish different types of clinical phrases, where they have radically different meanings, for example:

  • Distinguish expressions of future risk from expressions of past events

  • Distinguish different types of phrase by distinct styles of content, labelling and location

• Distinguish individual clinical phrases from one another, for example, through visual format

• Describe substances in a common, unambiguous terminology (where possible)

• Describe substances at an appropriate level, in order to help the user act appropriately

• Order lists appropriately

• User must be able to easily access justification for expressions of future risk, where justifying information is available

• User must be able to easily return to high-level information after viewing detailed information

• Clearly communicate the provenance of clinical phrases, where appropriate

Page 7

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

3.3 Guidelines

3.3.1 Structure of Adverse Drug Reaction Risk List

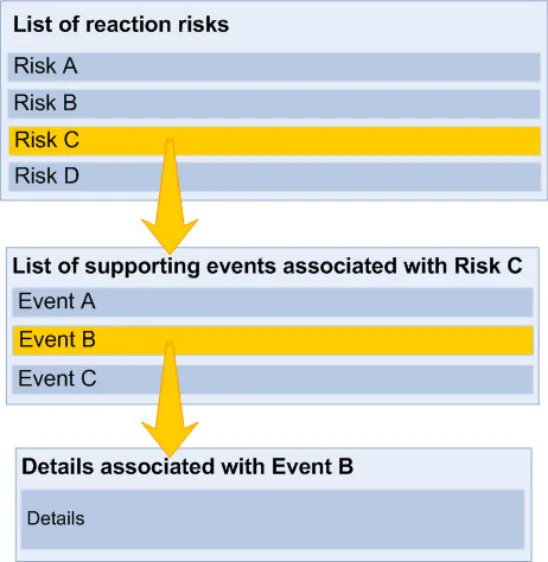

This section relates to the structure of the list that communicates the risk of adverse drug reactions if the patient is administered certain drugs, or a stated absence of known risks. The main principle is that there are multiple levels of information which are revealed sequentially, upon request by the clinician.

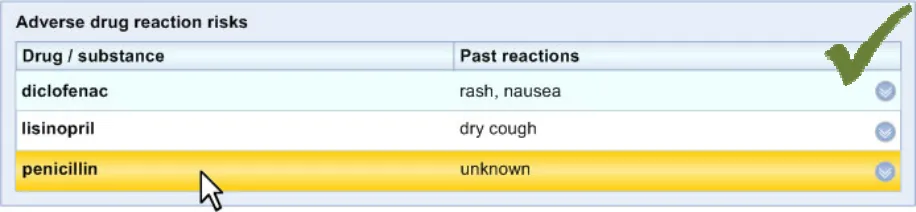

The initial view (‘Level 1’) contains the core information that is required by a clinician in order to identify the causative agent (namely, what medication to avoid) and what reactions the patient has had in the past.

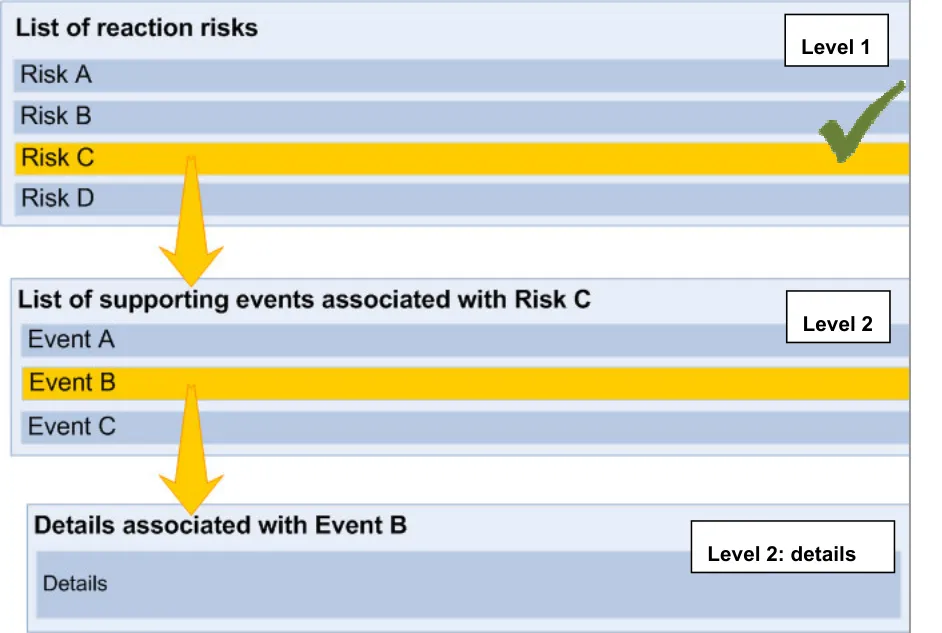

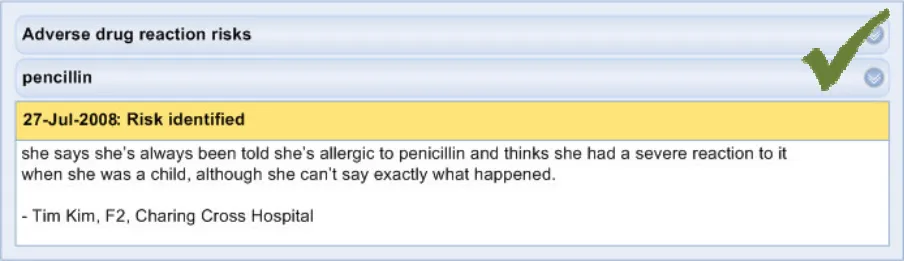

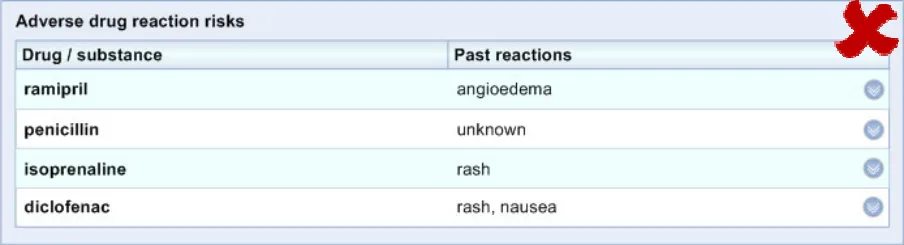

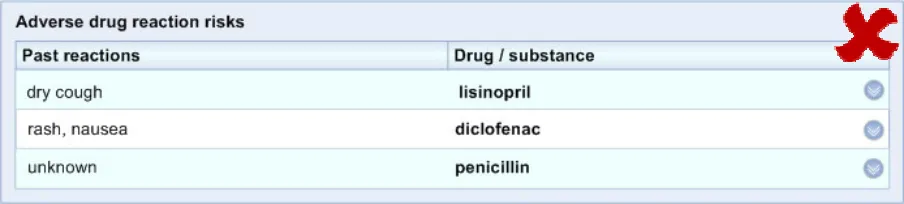

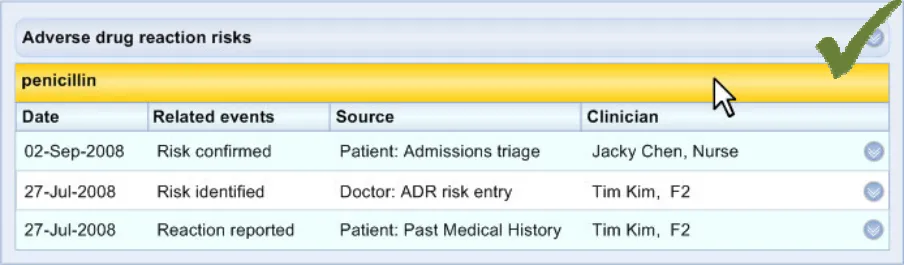

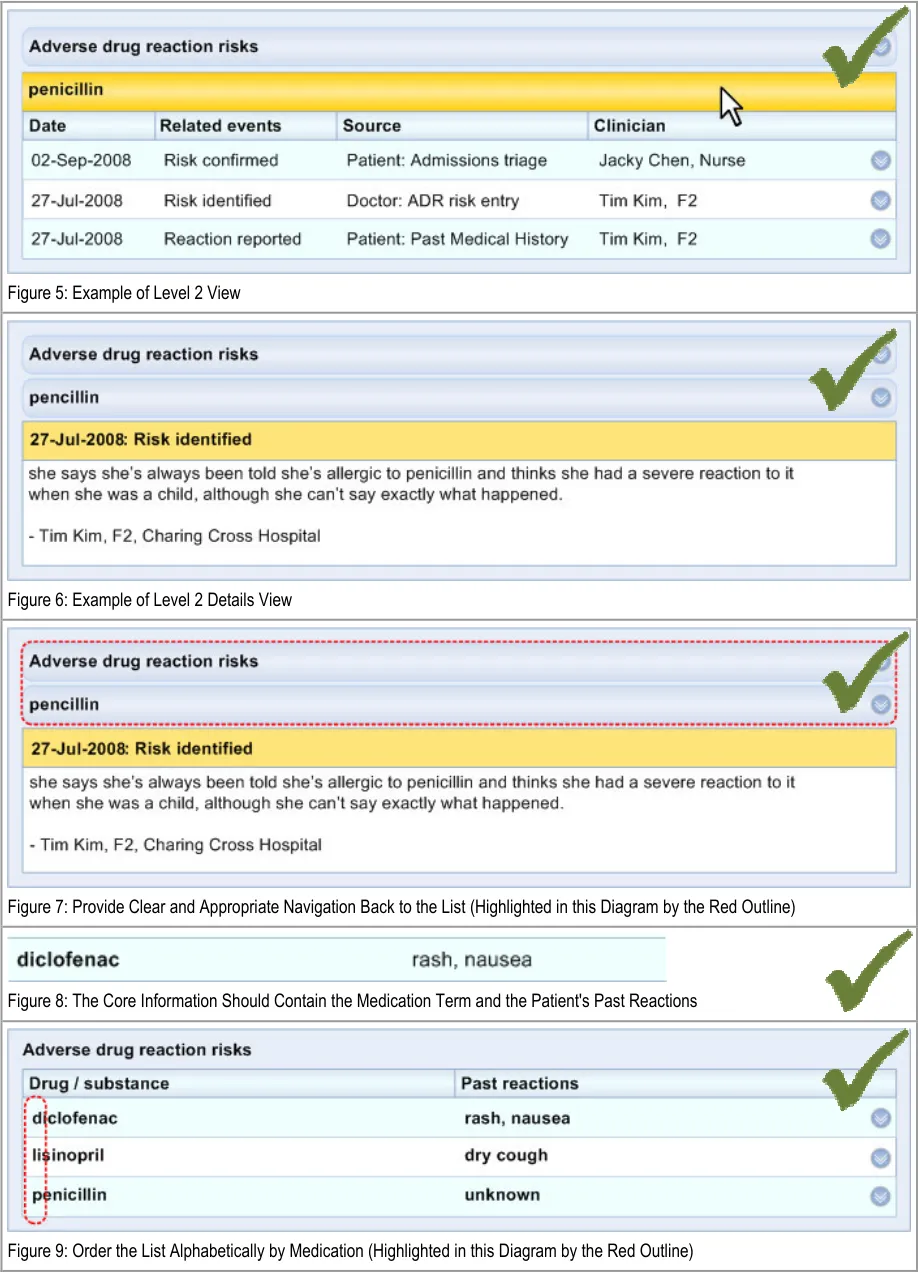

The second view (‘Level 2’) contains information that supports the core information, primarily providing the justification and provenance of the core information. The second level view could also provide a repository for other links to relevant entries elsewhere in the patient’s record.

Page 8

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

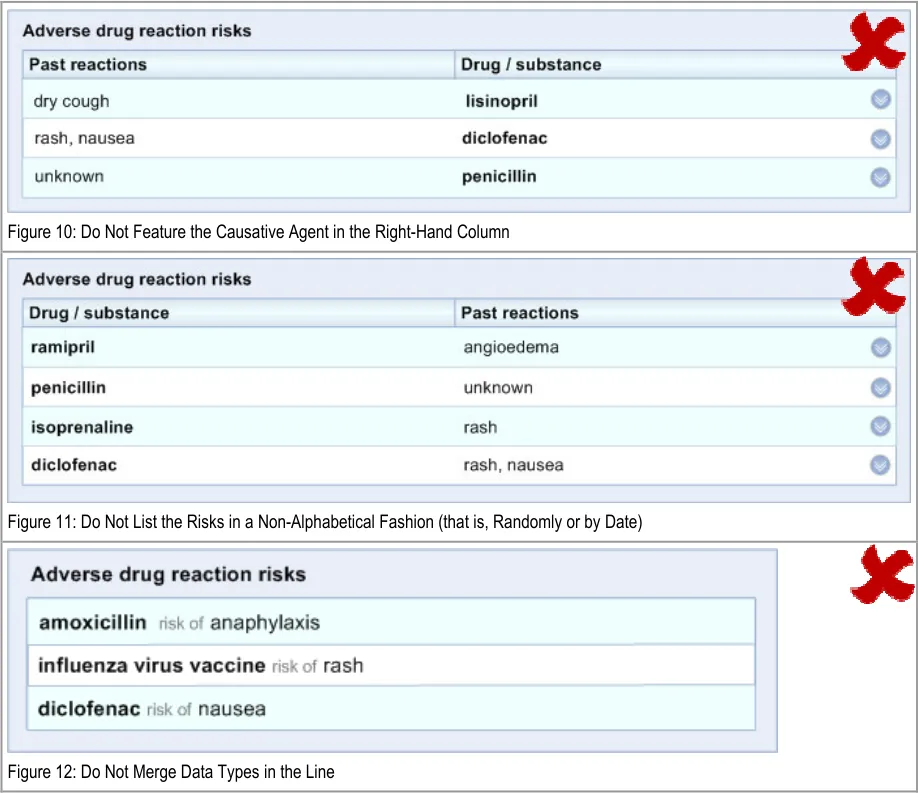

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Page 9

Microsoft and NHS Connecting for Health Confidential

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Page 10

Microsoft and NHS Connecting for Health Confidential

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Page 11

Microsoft and NHS Connecting for Health Confidential

Page 12

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

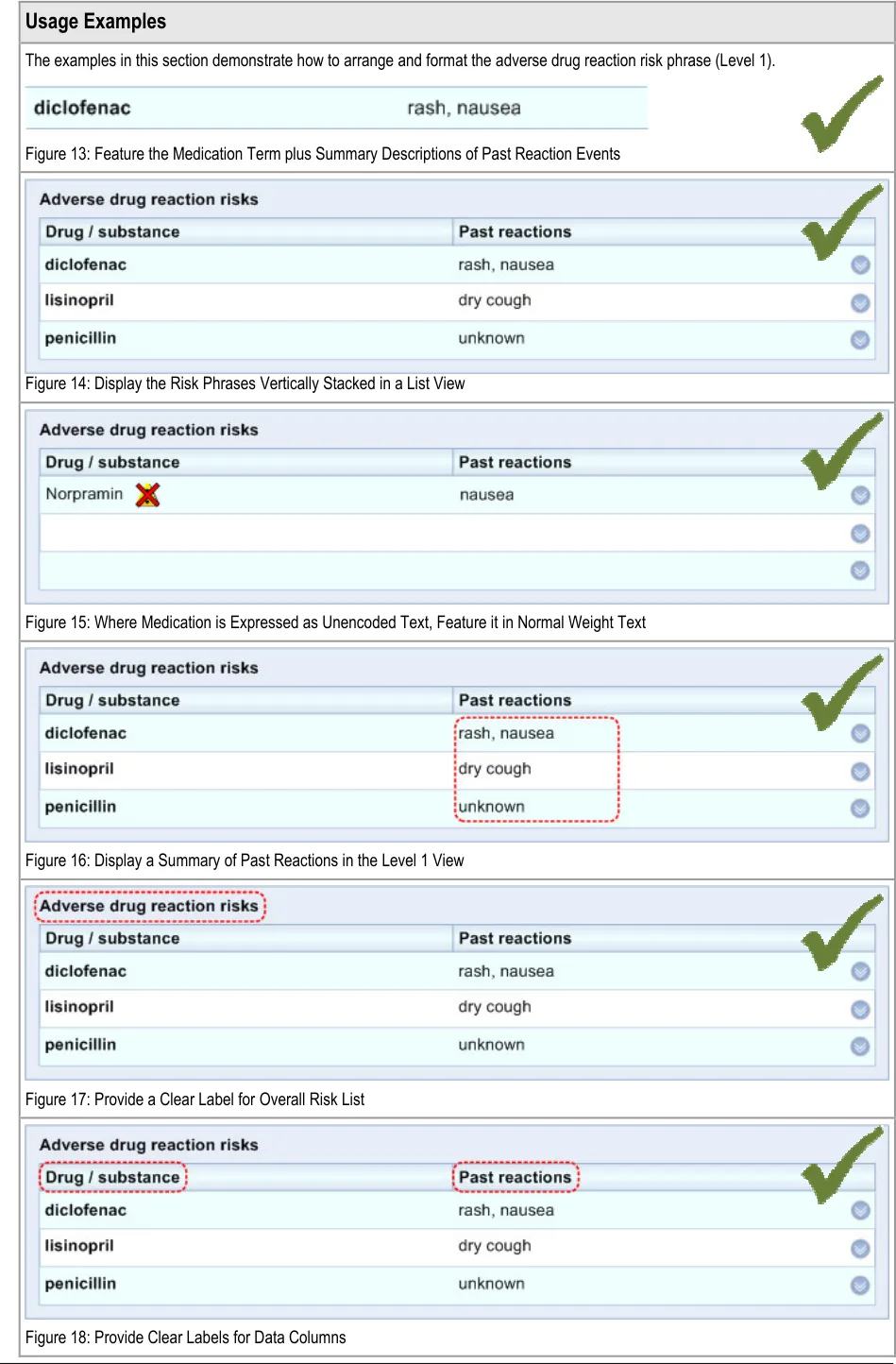

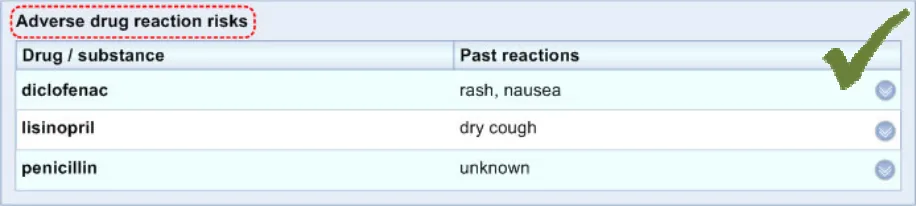

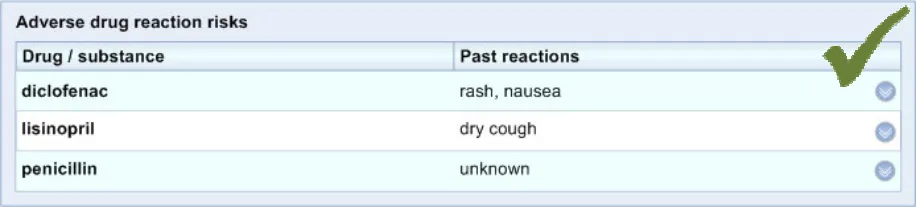

3.3.2 Content of Adverse Drug Reaction Risk Phrases

Note

It is intended that guidance on the entry of the causative agent will be addressed in future research.

Page 13

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Page 14

Microsoft and NHS Connecting for Health Confidential

Page 15

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

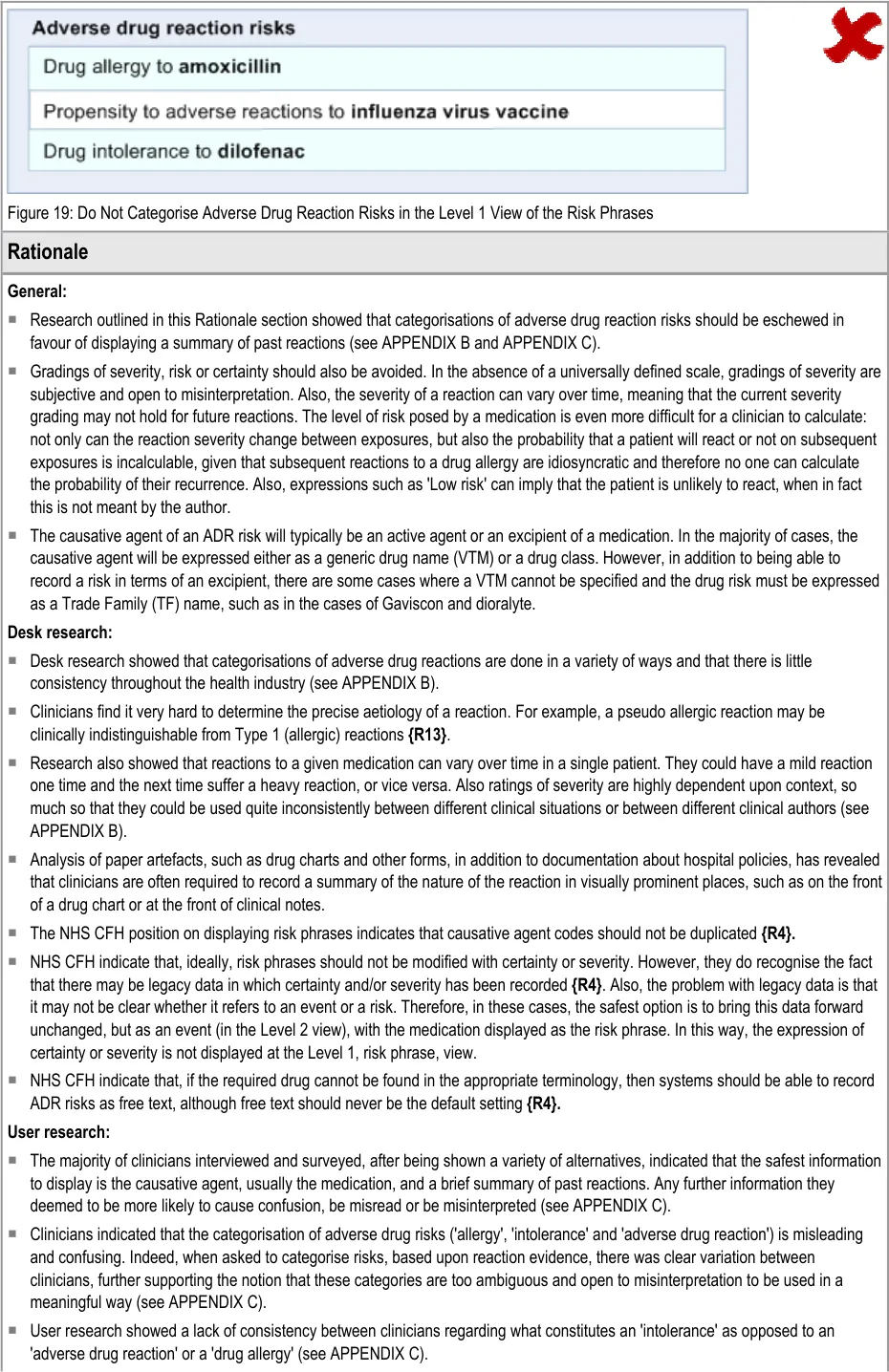

• Clinicians indicated that it was important to display the reaction. This information they felt was ‘crucial’ to the interpretation of the risk. Indeed, this notion is supported by further workshops we conducted in which clinicians indicated that they would expect key reaction words, such as ‘anaphylaxis’ to be immediately visible and prominent. A number of clinicians indicated that whenever they hear or read phrases regarding allergies, they will initially enquire about the nature of the past reaction(s). Also, seeing the reaction may be helpful in ways that the author may not have anticipated. For example, a vasovagal response to an injection may be more likely to be attributed to needle anxiety than to an actual adverse drug reaction (see APPENDIX B).

• Given a variety of choices, including displaying the past reactions in the ’Level 2’ view, clinicians deemed it safer to display a summary of past reactions in the immediately visible ’Level 1’ view (see APPENDIX C).

• Given a choice of a largely unstructured narrative description of past reactions or a terser ‘key words’ summary of past reactions, clinicians chose the latter, for reasons of readability and lack of distracting clutter (see APPENDIX C).

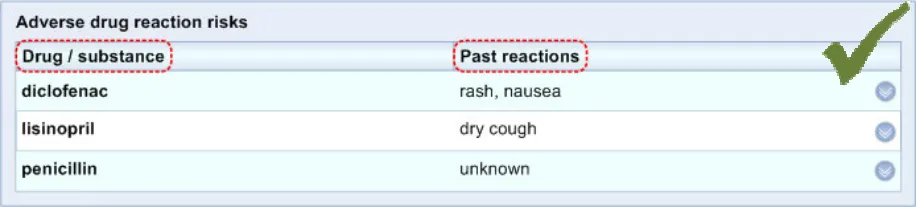

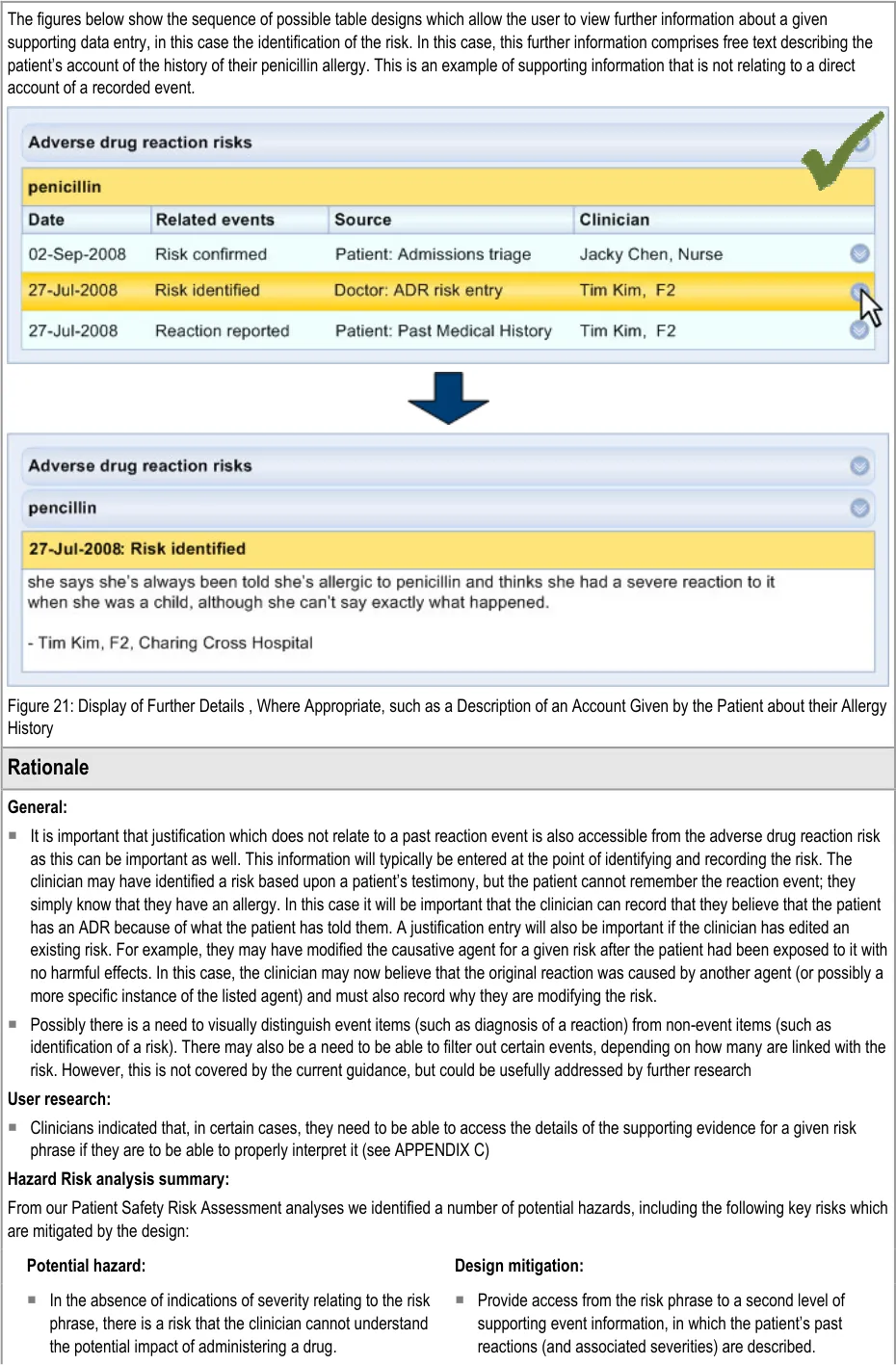

It was suggested in the study that the system should indicate where reactions occurred simultaneously. The use of the word ‘AND’ in uppercase is used by a number of concepts in SNOMED CT to denote multiple independent concepts occurring simultaneously (see APPENDIX C).

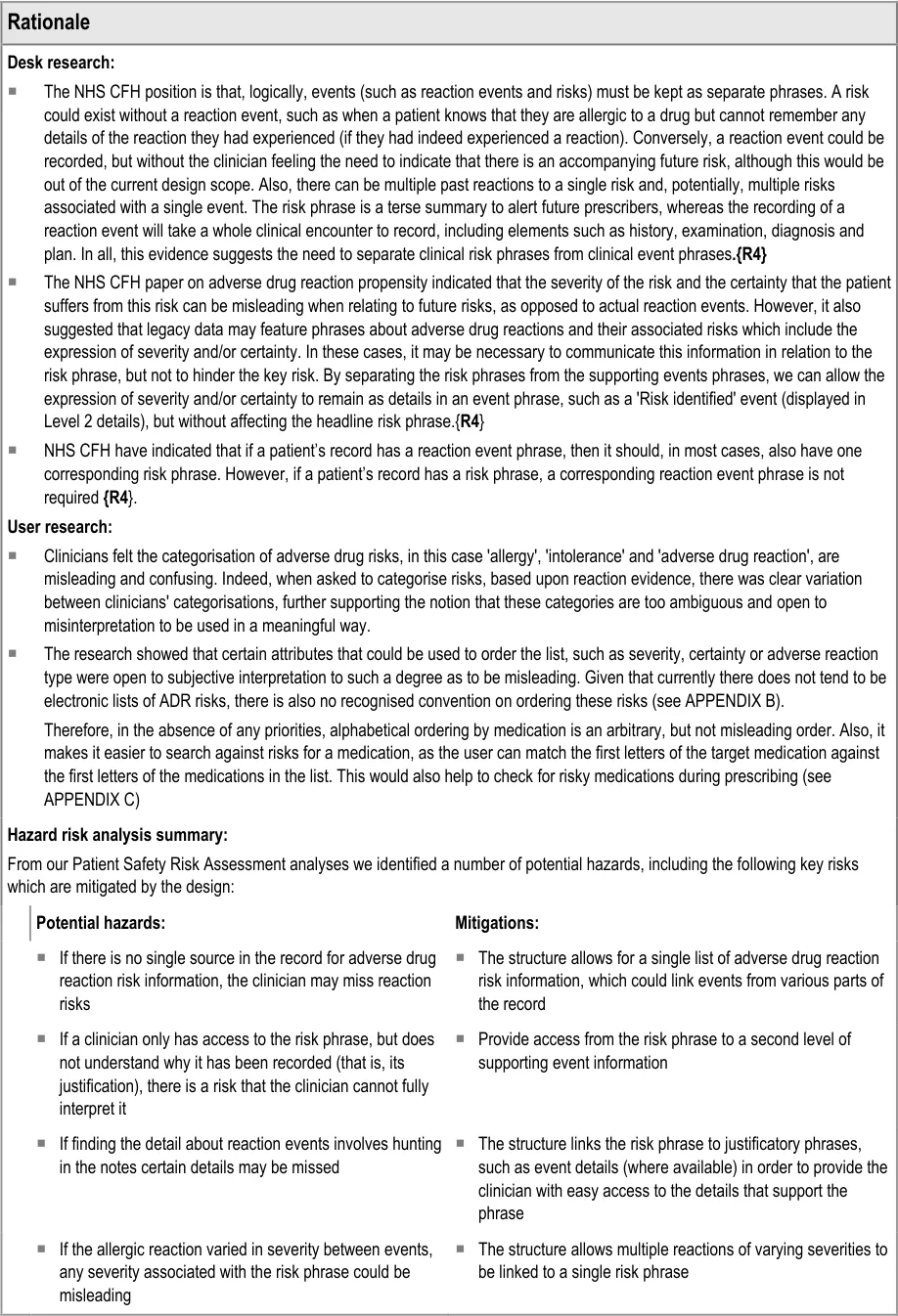

Hazard Risk analysis summary:

From our Patient Safety Risk Assessment analyses we identified a number of potential hazards, including the following key risks which are mitigated by the design:

Potential hazards: Design mitigation:

• Given the variety of interpretations of their meaning, categorising adverse drug reactions into types, such as ‘allergy’ and ‘intolerance’, may negatively influence the clinicians’ interpretation of the risk

• Severity of risk is often subjective and can be misleading as reactions may vary, even for a single patient

• Severity of a risk may be missing, which could lead to incorrect assumptions about its severity

• In the absence of indications of severity relating to the risk phrase, there is a risk that the clinician cannot understand the potential impact of administering a drug.

• If only the generic drug name is displayed, the clinician may not be able to identify that the patient is allergic to an excipient of particular brand.

• Avoid categorising adverse drug reactions at the level of risk expression. If known (or suspected), categorisations can be made in the event description, such as observation or diagnosis events.

• Avoid displaying a severity for the risk. However, severity of a past reaction can be communicated when describing a past reaction.

• Provide a high level summary of the patient’s past reactions to a medication (if known)

• Allow the system to display excipients of drugs in addition to VTM (generic) and TF (brand) names.

Page 16

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

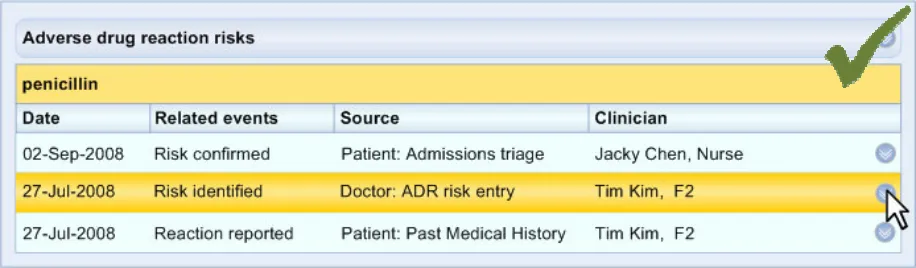

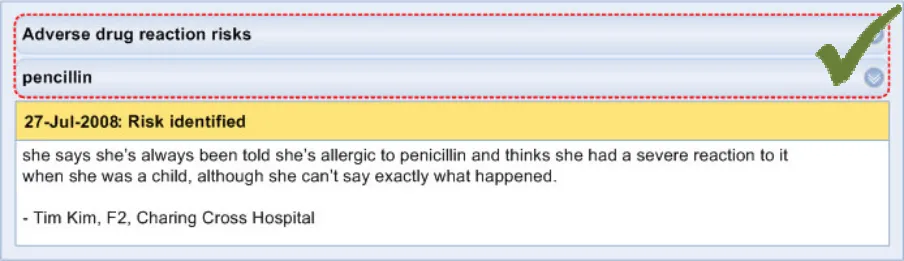

3.3.3 Content of Supporting Data (High-Level Guidance)

Page 17

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Page 18

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

• If the only the generic drug name is displayed, the clinician may not be able to identify factors which could have influenced the nature of the reaction, such as the dose and other excipients of the specific drug the patient had taken.

• If information about the route of the drug is not available the clinician may not be able to identify (i) if the severity of the reaction has been mediated by the route; or (ii) that the patient is in fact allergic to a constituent of a drug rather than the active ingredient.

Microsoft and NHS Connecting for Health Confidential

• Provide access from the risk phrase to a second level of supporting event information, which may include fuller details about the medication which caused the reaction, including brand name, dosage and route.

• Provide access from the risk phrase to a second level of supporting event information, which may include fuller details about the medication which caused the reaction, including brand name, dosage and route.

Page 19

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

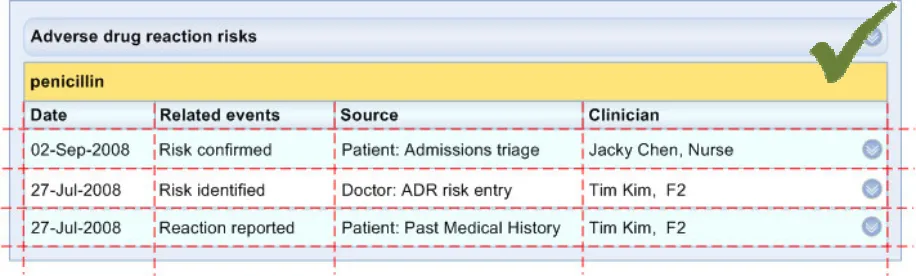

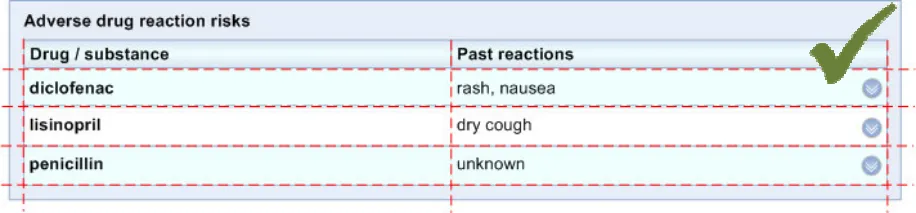

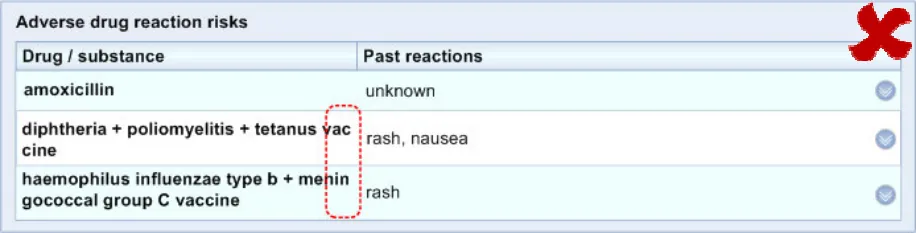

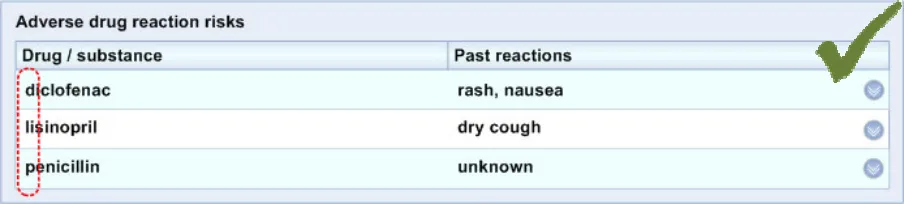

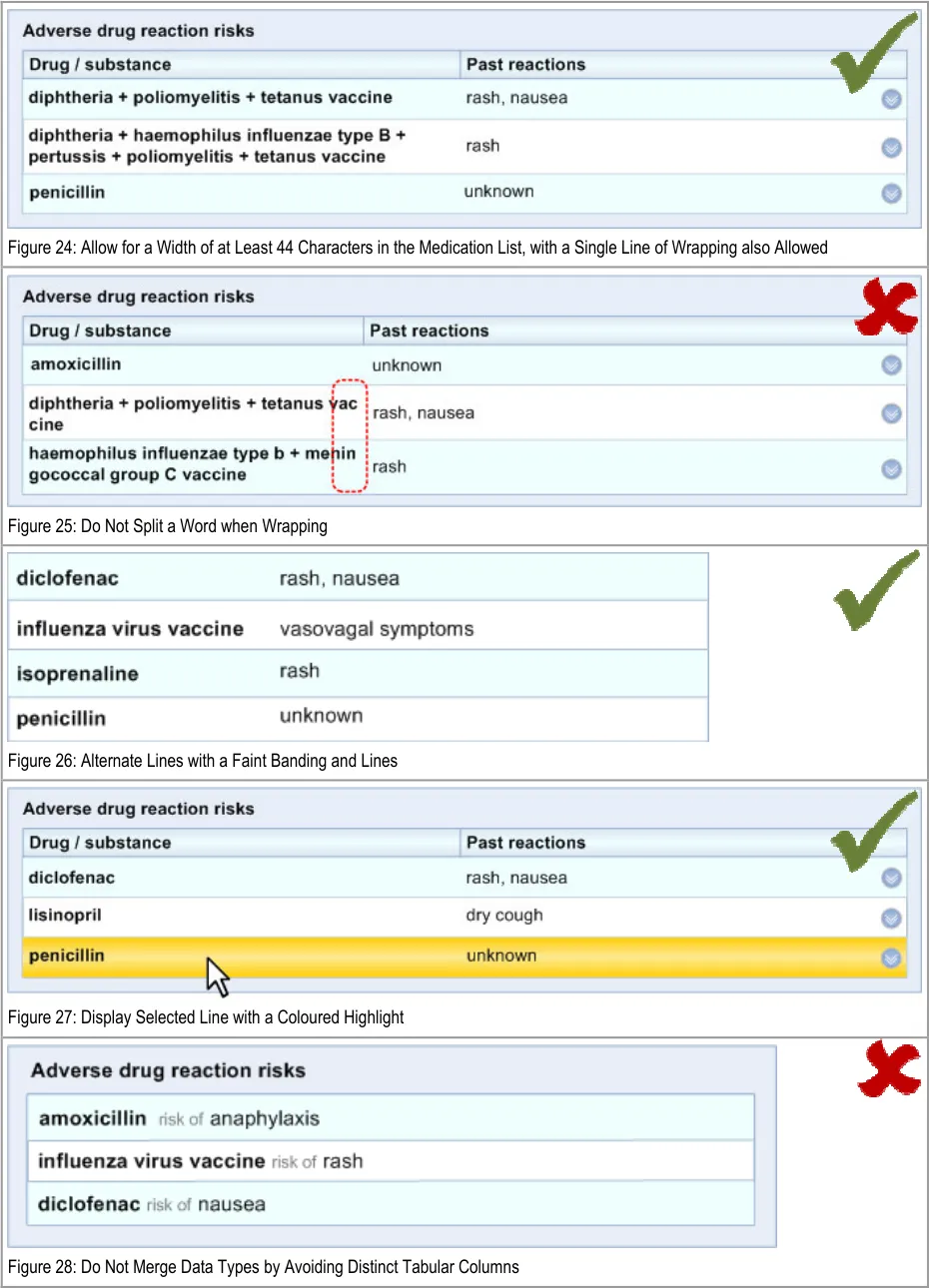

3.3.4 Format of List

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Page 20

Microsoft and NHS Connecting for Health Confidential

Page 21

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Page 22

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

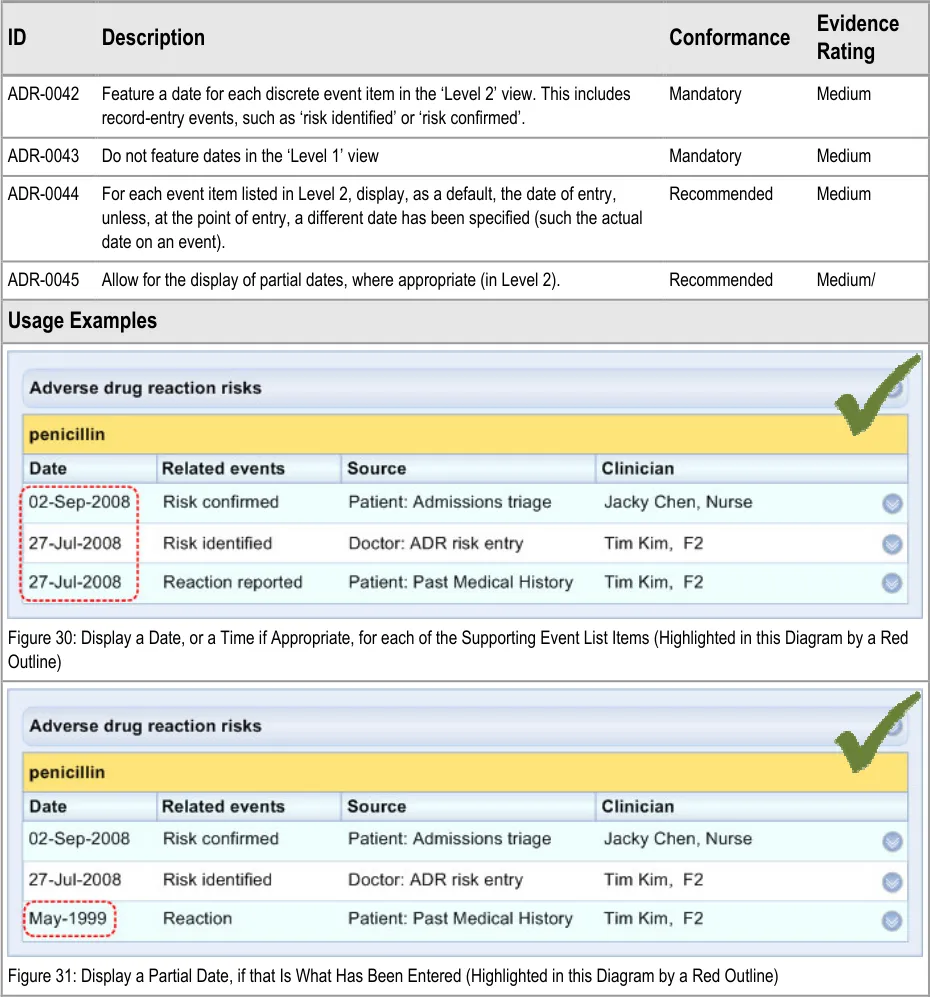

3.3.5 Displaying Dates and Times

Page 23

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Page 24

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

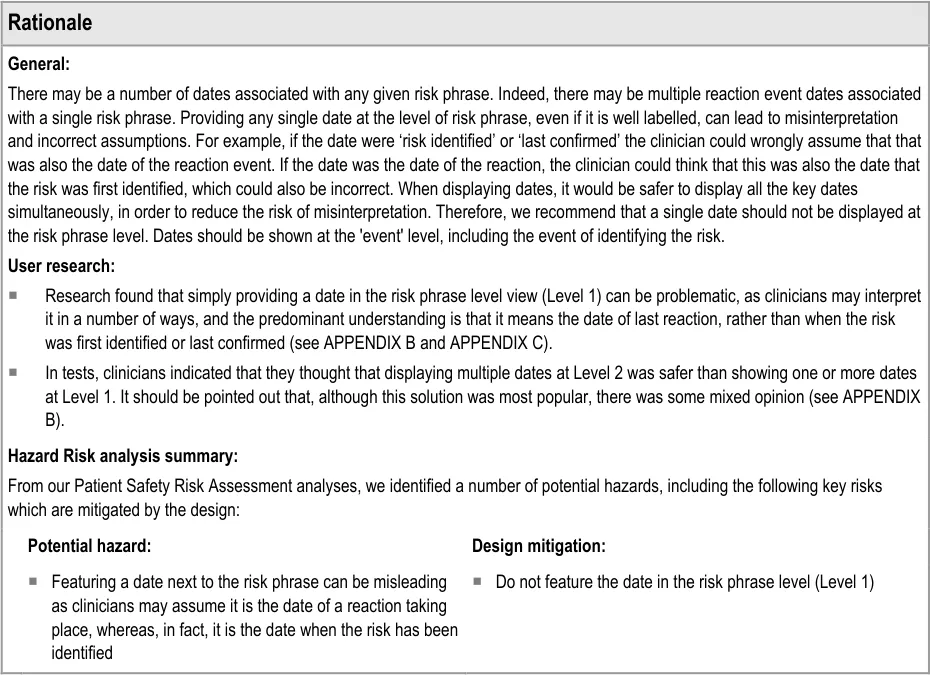

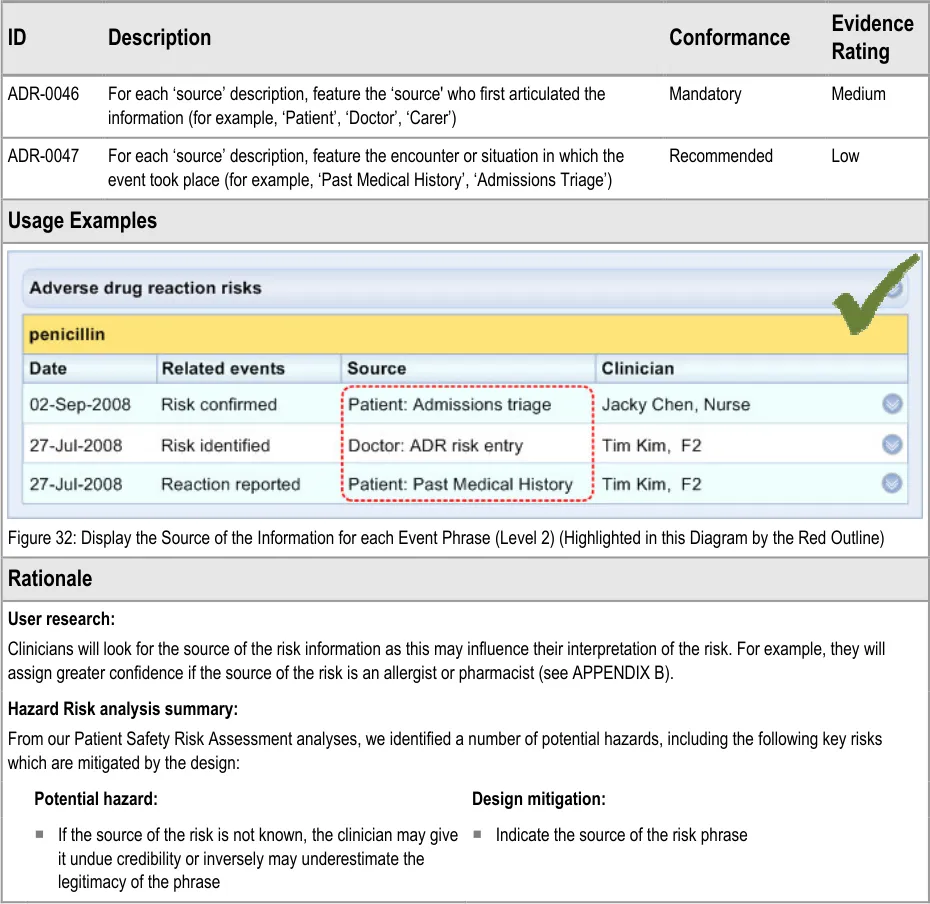

3.3.6 Displaying Source of Risk

Page 25

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

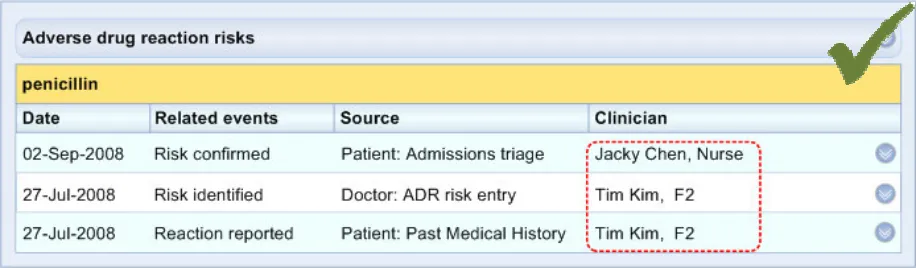

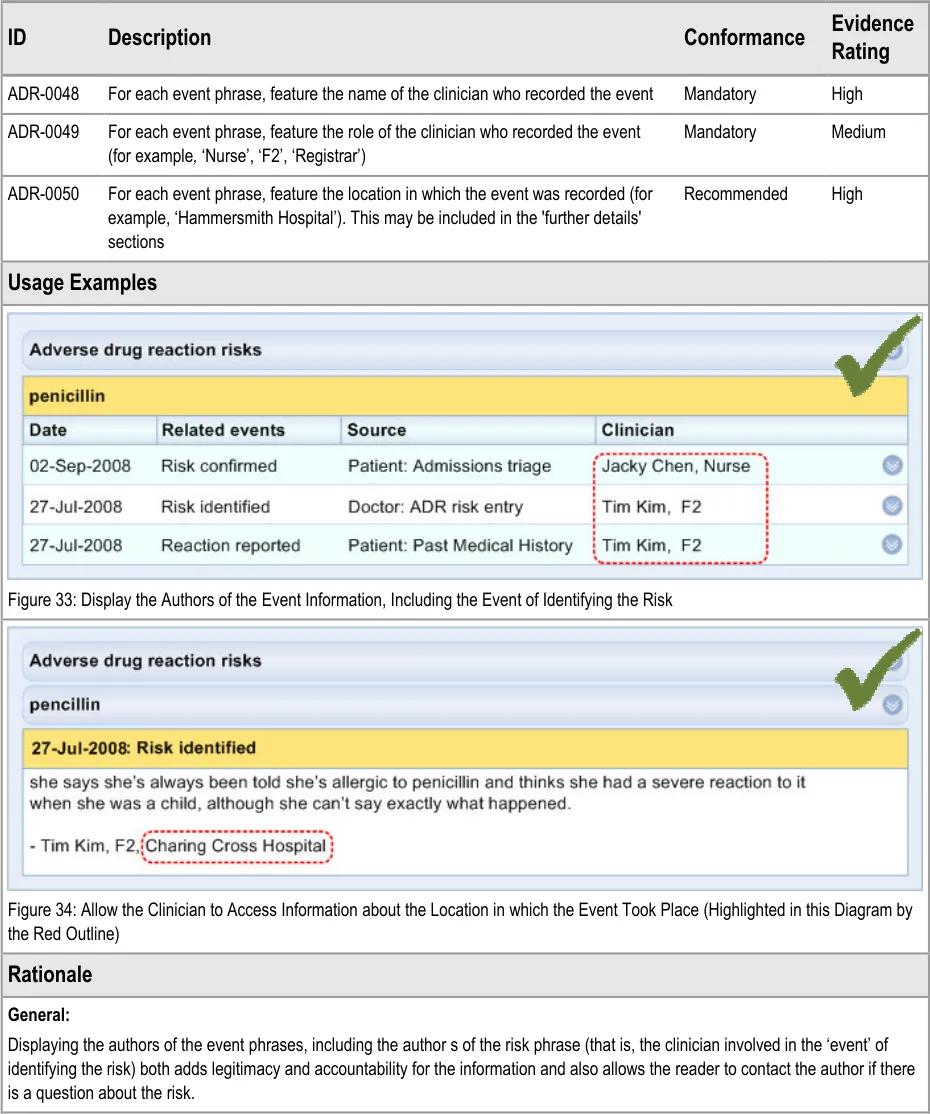

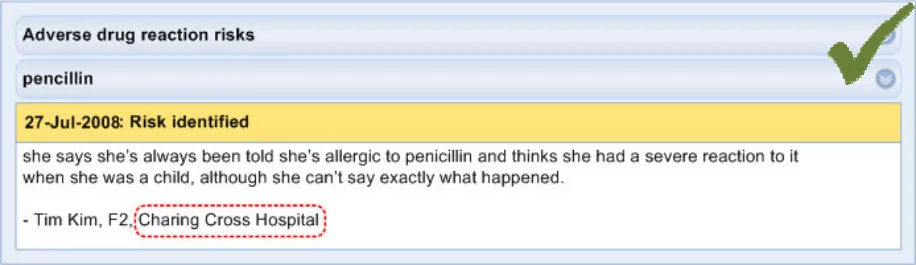

3.3.7 Displaying Authorship of Risk and Event Phrases

Page 26

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

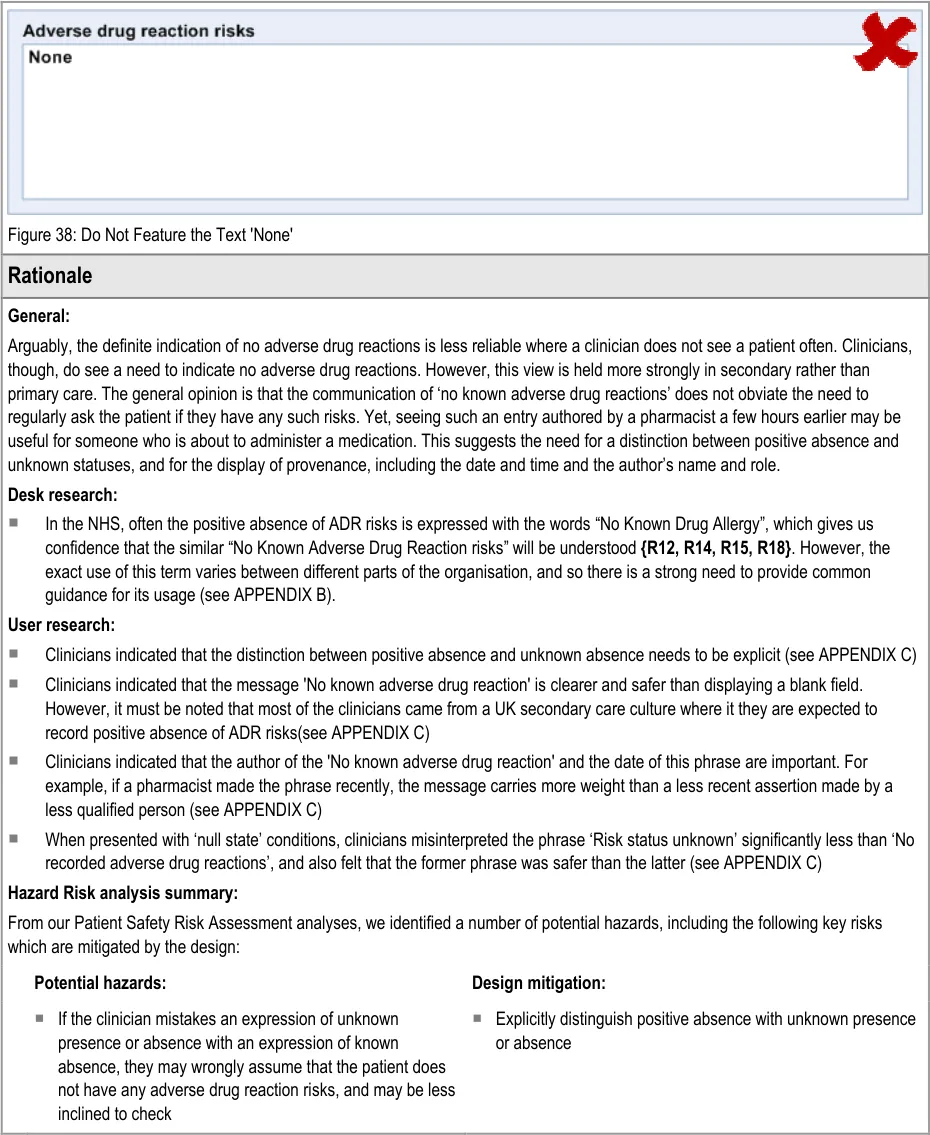

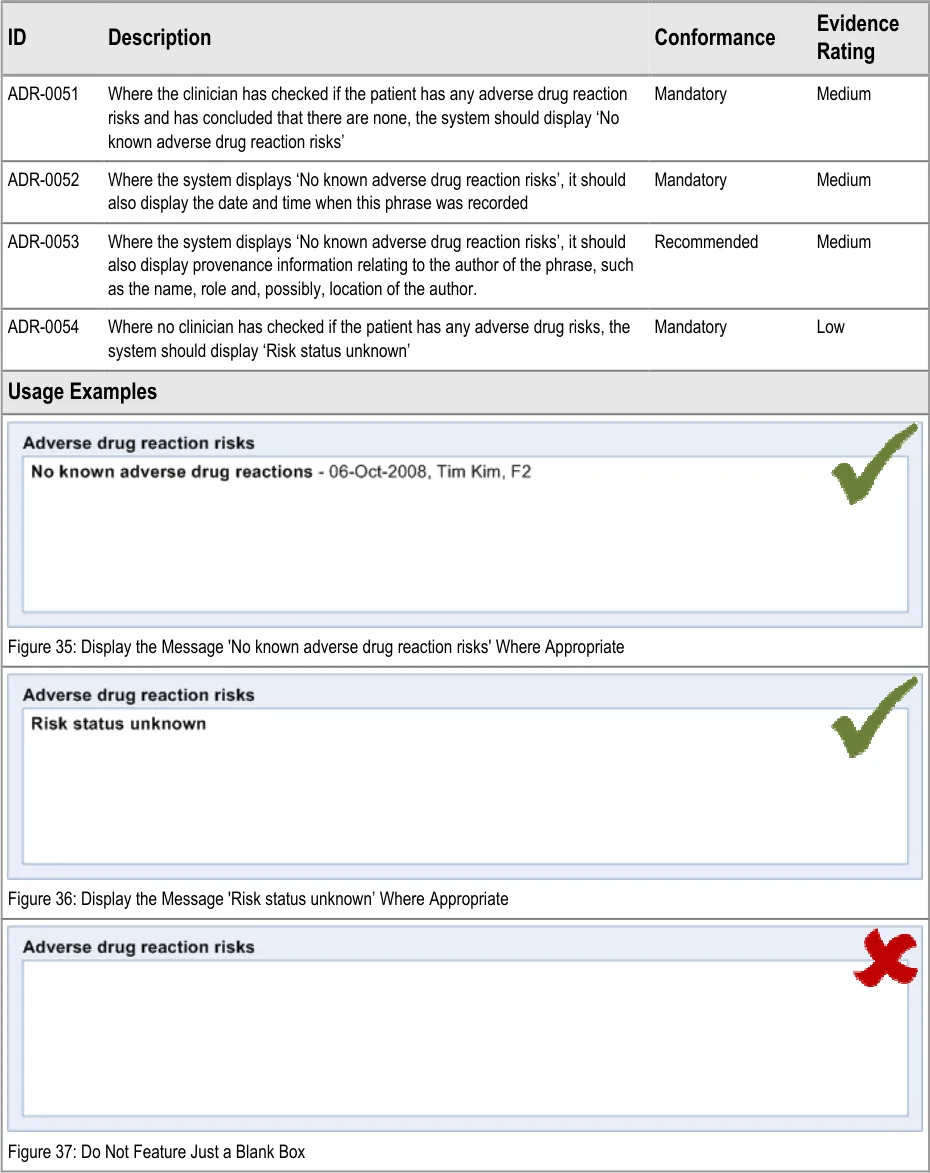

3.3.8 Displaying Absence of Risk

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Page 27

Microsoft and NHS Connecting for Health Confidential

Page 28

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

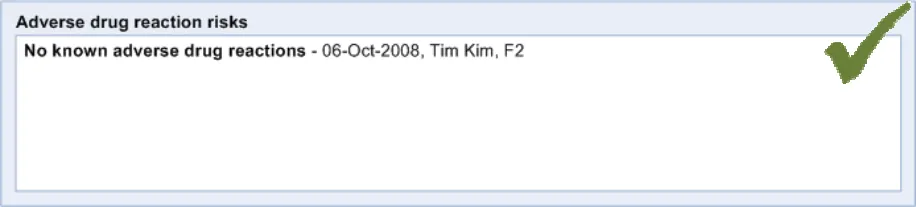

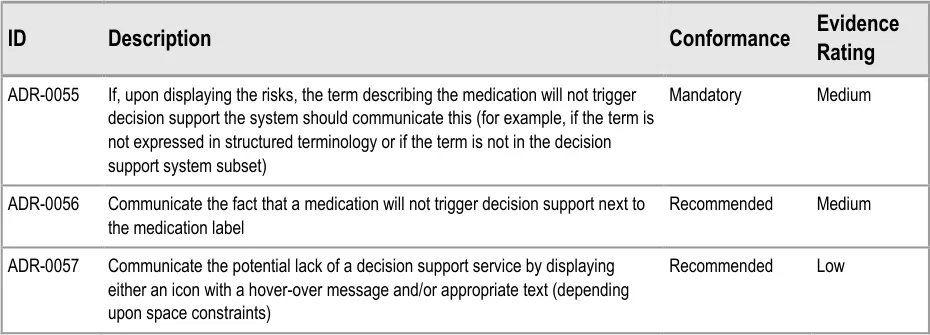

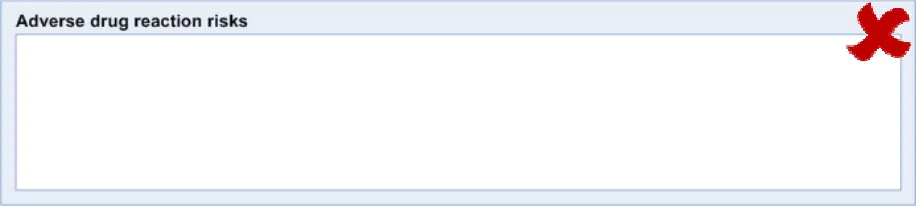

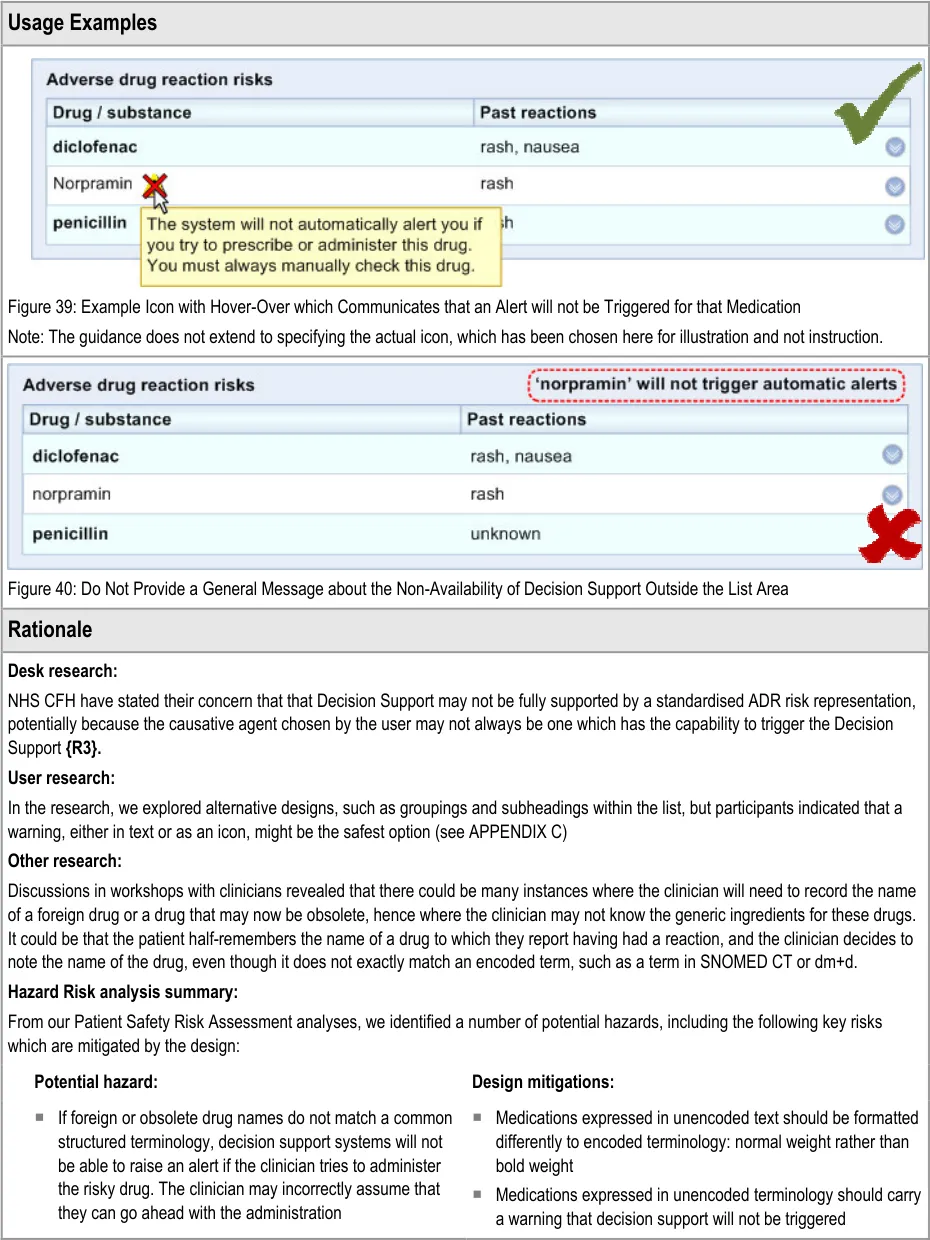

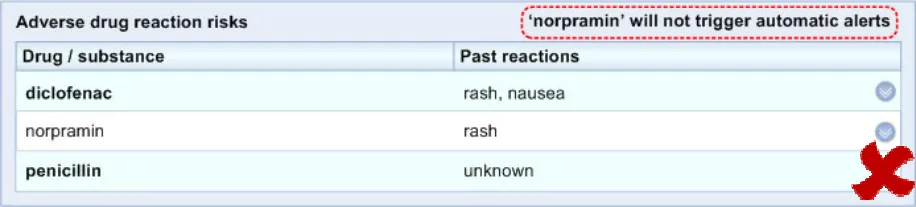

3.3.9 Displaying that No Decision Support is Available for A Specific Risk

The list mechanism described in this document is one way of communicating adverse drug reaction risks in a clinical software system. However, we envisage that it will be supplemented by a decision support service, which monitors medications being entered during the process of prescription or medications administration. If the medication matches a medication featured in the ADR list, the decision support service will trigger an alert message, warning the clinician that they are about to give the patient a drug to which they have a risk of ADR.

However, there may be circumstances where a medication that has been entered as a risk does not trigger decision support alerts. It could be that the medication name does not match anything in the structured terminology upon which the decision support is based (for example, obsolete or foreign drug names may not trigger an alert).

Also, even when using a structured terminology such as SNOMED CT and dm+d for recording causative agents, not all substances may be checked as part of a decision support system; any given decision support system will typically only check against a subset of the whole list.

In these cases, it is important that:

1. The clinician habitually checks the ADR risk list prior to prescription

2. The system highlights to the clinician that the medication risk will not trigger an alert

If the clinician is expecting decision support, in the absence of an alert, they may assume that a medication is not a risk, even if they see it in the list. Therefore it is imperative to indicate where decision support does not apply.

Providing such a feature can also educate the clinicians more generally about the limits of decision support and how they should only use it in conjunction with a high level of human vigilance. Currently the use and role of decision support is an unfamiliar concept to many working with the NHS, and especially in secondary care, primarily because it is not widely implemented at the moment.

Page 29

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Page 30

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

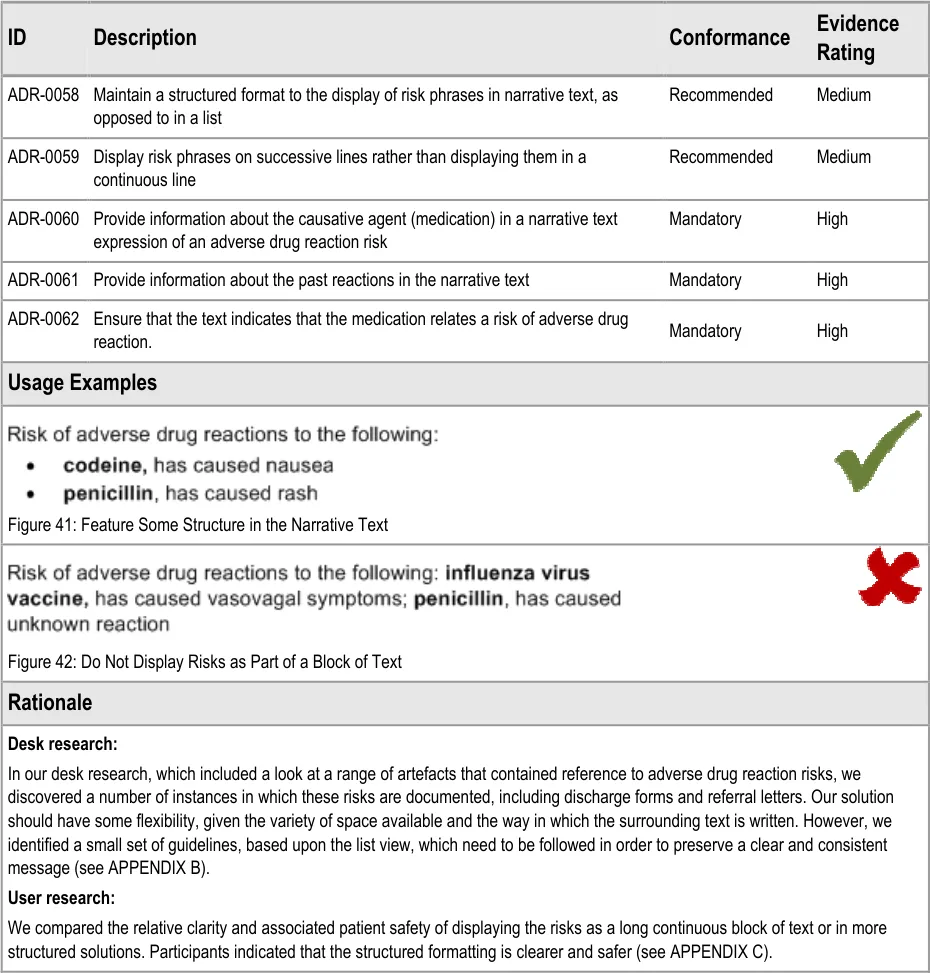

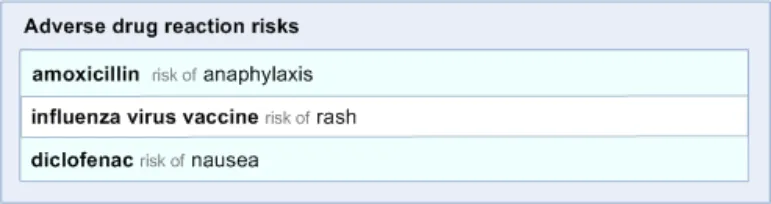

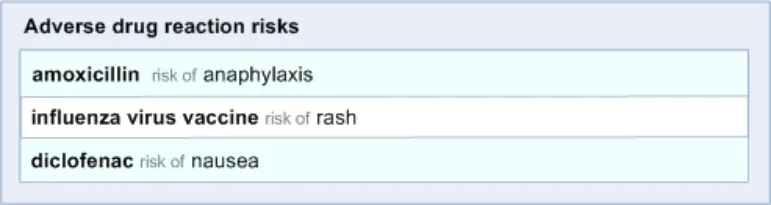

3.3.10 Displaying Risks in Narrative Text

This section addresses the display of adverse drug reaction risk information outside of a highly structured format. There may be a number of situations where a full table is not appropriate, for example, because there is not sufficient room or because a table would break the flow of the text. Examples of such situations include where the risks are expressed in a referral letter or as part of a clinical summary.

Although ‘narrative text’ describes text which is not arranged in a table, this type of text does share a number of common guidelines with the tabular text.

Page 31

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

3.4 Rationale Summary

CUI user research provided most of the rationale for the guidance. Importantly, it revealed that:

• Display risk categorisations are misleading and confusing

• Past reactions must be displayed with the risk phrases

NHS CFH work done prior to this guidance also provided rationale for the guidance, including the specification of the causative agent and the split between risk and event.

Page 32

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

4 DOCUMENT INFORMATION

4.1 Terms and Abbreviations

ADR Adverse Drug Reaction

CUI Common User Interface

dm+d dictionary of medicines + devices (NHS)

DSS Decision Support Systems

NPSA National Patient Safety Agency

NHS National Health Service

NHS CFH NHS Connecting for Health

SNOMED CT Systematized Nomenclature of Medicine – Clinical Terms

TF Trade Family

VTM Virtual Therapeutic Moiety

Table 5: Terms and Abbreviations

4.2 Definitions

NHS Entity Within this document, defined as a single NHS organisation or group that is operated within a single technical infrastructure environment by a defined group of IT administrators.

The Authority The organisation implementing the NHS National Programme for IT (currently NHS Connecting for Health).

Current best practice Current best practice is used rather than best practice, as over time best practice guidance may change or be revised due to changes to products, changes in technology, or simply the additional field deployment experience that comes over time.

Table 6: Definitions

4.3 Nomenclature

This section shows how to interpret the different styles used in this document to denote various types of information.

4.3.1 Body Text

Code Monospace

Script

Other markup languages

Interface dialog names Bold

Field names

Controls

Page 33

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Folder names Title Case

File names

Table 7: Body Text Styles

4.3.2 Cross References

Current document – sections Section number only

Current document – figures/tables Caption number only

Other project documents Italics and possibly a footnote

Publicly available documents Italics with a footnote

External Web-based content Italics and a hyperlinked footnote

Table 8: Cross Reference Styles

4.4 References

R1. Safety in doses: medication safety incidents in the NHS, NHS National Patient Safety Agency, 2007

R2. World Health Organization. Requirements for adverse reaction reporting. Geneva: Author, 1975.

R3. Representation in Electronic Patient Records of Allergic Reactions, Adverse Reactions, and 1.6 Intolerance of Pharmaceutical Products, Peter Horsfield, NHS, 2008

R4. SCG Guidance on the Reference of Allergies and Adverse Reaction Information Using NHS 1.0 Message Templates, Steve Bentley, NHS, 2008

R5. Thien, F. Practice Essentials: Drug Hypersensitivity. Medical Journal of Australia 2006

R6. NHS CUI Programme – Design Guide Entry – Date Display 3.0.0.0

R7. NHS CUI Programme – Medications Management – Medication Line – User Interface Design 2.0.0.0 Guidance

R8. NHS CUI Programme – Displaying Graphs and Tables – User Interface Design Guidance 2.0.0.0

R9. NHS CUI Programme – Design Guide Entry – Terminology – Display Standards for Coded 2.0.0.0 Information

R10. A clinician’s guide to drug hypersensitivity, Kemp et al. (eds), eMJA The Medical Journal of Australia, MJA 2006; 185 (6): 333-338

R11. Anaphylaxis: diagnosis and management, Kemp et al. (eds). eMJA The Medical Journal of Australia, MJA 2006; 185 (5): 283-289

R12. Audit of Drug Allergy Documentation, Bedford General Hospital http://www.londonpharmacy.nhs.uk/educationandtraining/prereg/pfizerProjectAwards2008/Rupam% 20Purohit%20Bedford%20general%20Hospital.doc

R13. Adverse Drug Reactions: Types and Treatment Options, Riedl, M. and Casillas, A. American Family Physician, November 1, 2003

R14. Policy for the Documentation of Allergy Status, Department of Health, Social Services and Public Safety (Northern Ireland), http://www.dhsspsni.gov.uk/policy_allergy.pdf

Page 34

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

R15. Accuracy of drug allergy document: have we improved our practice? Nzuma, F.S., Royal Brompton & Harefield NHS Trust, March 2007

R16. Audit of Drug Allergy Documentation, Carrie Fung, West Middlesex University Hospital, 2006

R17. Effective drug-allergy checking: methodological and operational issues, Kuperman, G.J. et al, Journal of Biomedical Informatics, Vol 36, Issue 1/2, Pages 70-79, February 2003

R18. Strategies to Improve medical Record Documentation of Allergies and Adverse Reactions, Harvard Pilgram Health Care https://www.harvardpilgrim.org/pls/portal/docs/PAGE/PROVIDERS/MEDMGMT/MEDICALRECORD S/IMPROVEMENT_STRATEGIES.PDF

R19. Recording of drug allergies: are we doing enough? Radford, A. et al, Journal of Evaluation in Clinical Practice, Vol 13 Issue 1, Pages 130-137, Feb 2007

R20. Reporting adverse drug reactions: A guide for healthcare professionals, BMA Board of Science, May 2006

Table 9: References

Page 35

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

APPENDIX A REFERENCE SUMMARY OF GUIDANCE

ADR-0001 3.3.1 Feature multiple levels of display: an immediate view (‘Level 1’) containing the risk phrase (comprising the causative agent and any past reactions) and a set of other views (‘Level 2’) that are not immediately visible and contain supporting events data, if such event data and linkages exist

ADR-0002 3.3.1 Feature a mechanism that allows the user to access relevant items within the ‘Level 2’ view from individual risks in the ‘Level 1’ view, if such event data and linkages exist

ADR-0003 3.3.1 Feature a mechanism that allows the user to return to the ‘Level 1’ list

ADR-0004 3.3.1 Link each risk phrase in the ‘Level 1’ view to one or more related event phrases in the ‘Level 2’ view, if such event data and linkages exist.

ADR-0005 3.3.1 In the ‘Level 1’ view, the causative agent column should be displayed at the far left-hand side of the table

ADR-0006 3.3.1 In the ‘Level 1’ view, the past reactions column should be displayed to the right of the causative agent column

ADR-0007 3.3.1 Feature a mechanism that allows the user to access further details from the ‘Level 2’ line items, if such event data and linkages exist

ADR-0008 3.3.1 Arrange the list according to a consistent (default) order

ADR-0009 3.3.1 Order the list alphabetically on the generic medication name (causative agent)

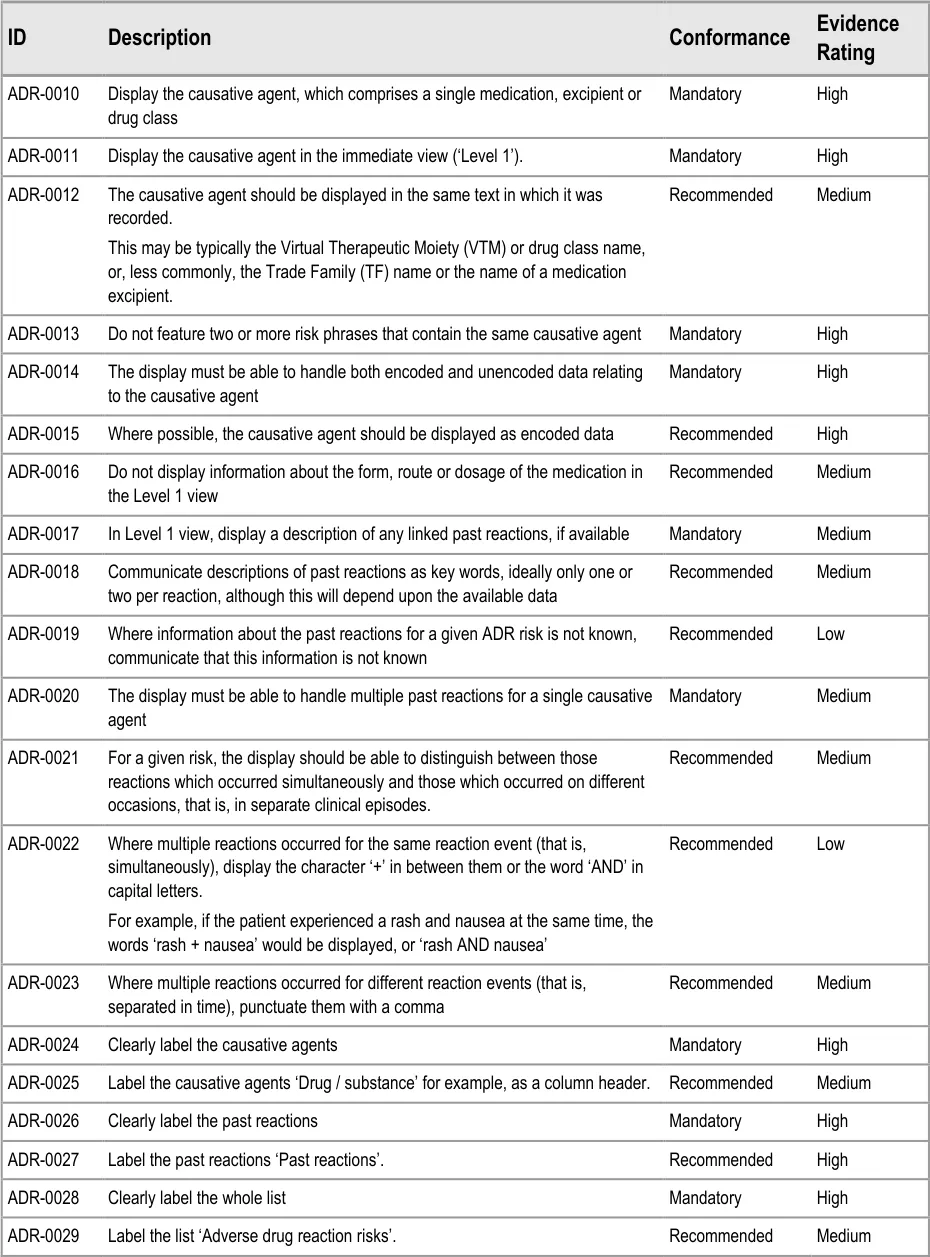

ADR-0010 3.3.2 Display the causative agent, which comprises a single medication, excipient or drug class

ADR-0011 3.3.2 Display the causative agent in the immediate view (‘Level 1’).

ADR-0012 3.3.2 The causative agent should be displayed in the same text in which it was recorded.

This may be typically the Virtual Therapeutic Moiety (VTM) or drug class name, or, less commonly, the Trade Family (TF) name or the name of a medication excipient.

ADR-0013 3.3.2 Do not feature two or more risk phrases that contain the same causative agent

ADR-0014 3.3.2 The display must be able to handle both encoded and unencoded data relating to the causative agent

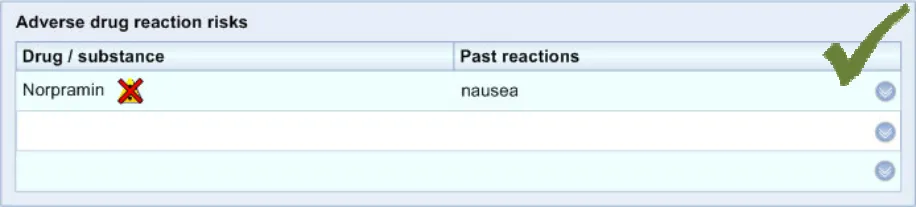

ADR-0015 3.3.2 Where possible, the causative agent should be displayed as encoded data

ADR-0016 3.3.2 Do not display information about the form, route or dosage of the medication in the Level 1 view

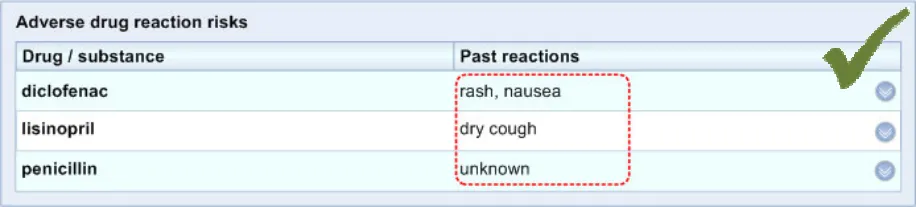

ADR-0017 3.3.2 In Level 1 view, display a description of any linked past reactions, if available

ADR-0018 3.3.2 Communicate descriptions of past reactions as key words, ideally only one or two per reaction, although this will depend upon the available data

ADR-0019 3.3.2 Where information about the past reactions for a given ADR risk is not known, communicate that this information is not known

ADR-0020 3.3.2 The display must be able to handle multiple past reactions for a single causative agent

ADR-0021 3.3.2 For a given risk, the display should be able to distinguish between those reactions which occurred simultaneously and those which occurred on different occasions, that is, in separate clinical episodes.

ADR-0022 3.3.2 Where multiple reactions occurred for the same reaction event (that is, simultaneously), display the character ‘+’ in between them or the word ‘AND’ in capital letters.

For example, if the patient experienced a rash and nausea at the same time, the words ‘rash + nausea’ would be displayed, or ‘rash AND nausea’

ADR-0023 3.3.2 Where multiple reactions occurred for different reaction events (that is, separated in time), punctuate them with a comma

ADR-0024 3.3.2 Clearly label the causative agents

Page 36

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

ADR-0025 3.3.2 Label the causative agents ‘Drug / substance’ for example, as a column header.

ADR-0026 3.3.2 Clearly label the past reactions

ADR-0027 3.3.2 Label the past reactions ‘Past reactions’.

ADR-0028 3.3.2 Clearly label the whole list

ADR-0029 3.3.2 Label the list ‘Adverse drug reaction risks’.

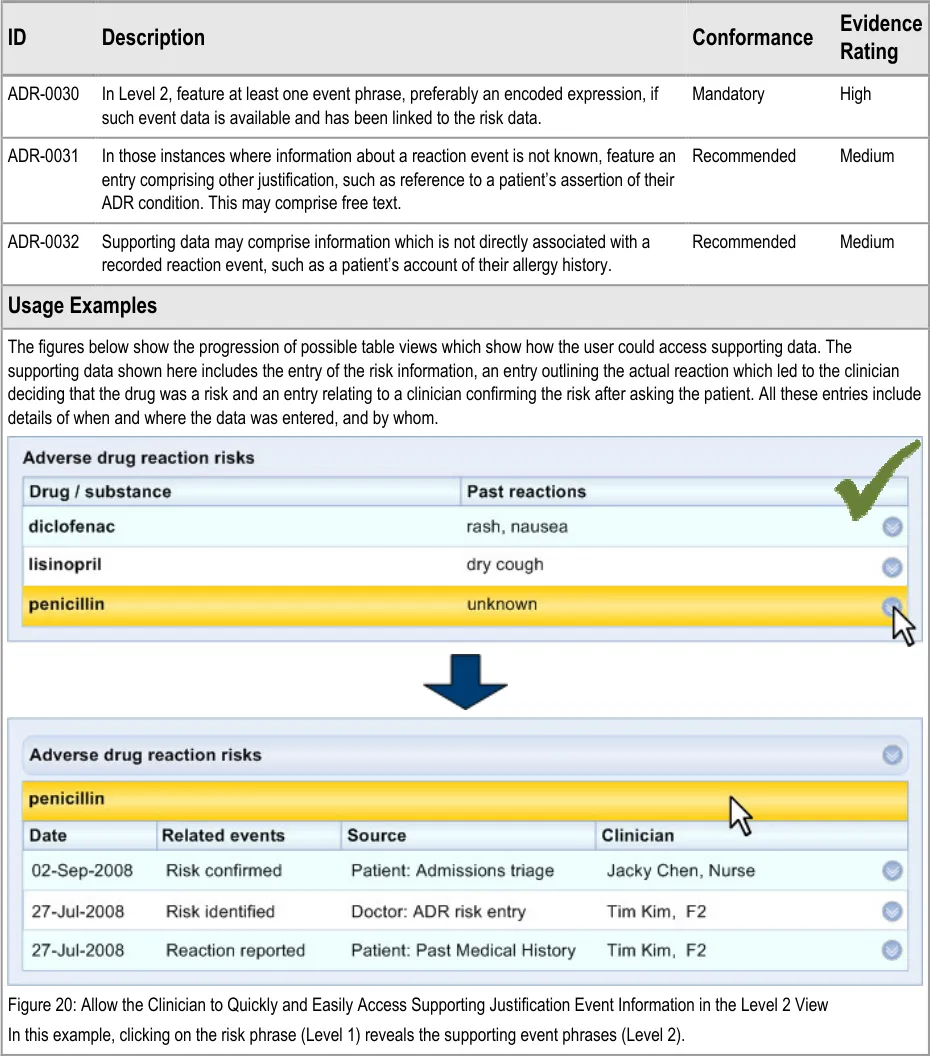

ADR-0030 3.3.3 In Level 2, feature at least one event phrase, preferably an encoded expression, if such event data is available and has been linked to the risk data.

ADR-0031 3.3.3 In those instances where information about a reaction event is not known, feature an entry comprising other justification, such as reference to a patient’s assertion of their ADR condition. This may comprise free text.

ADR-0032 3.3.3 Supporting data may comprise information which is not directly associated with a recorded reaction event, such as a patient’s account of their allergy history.

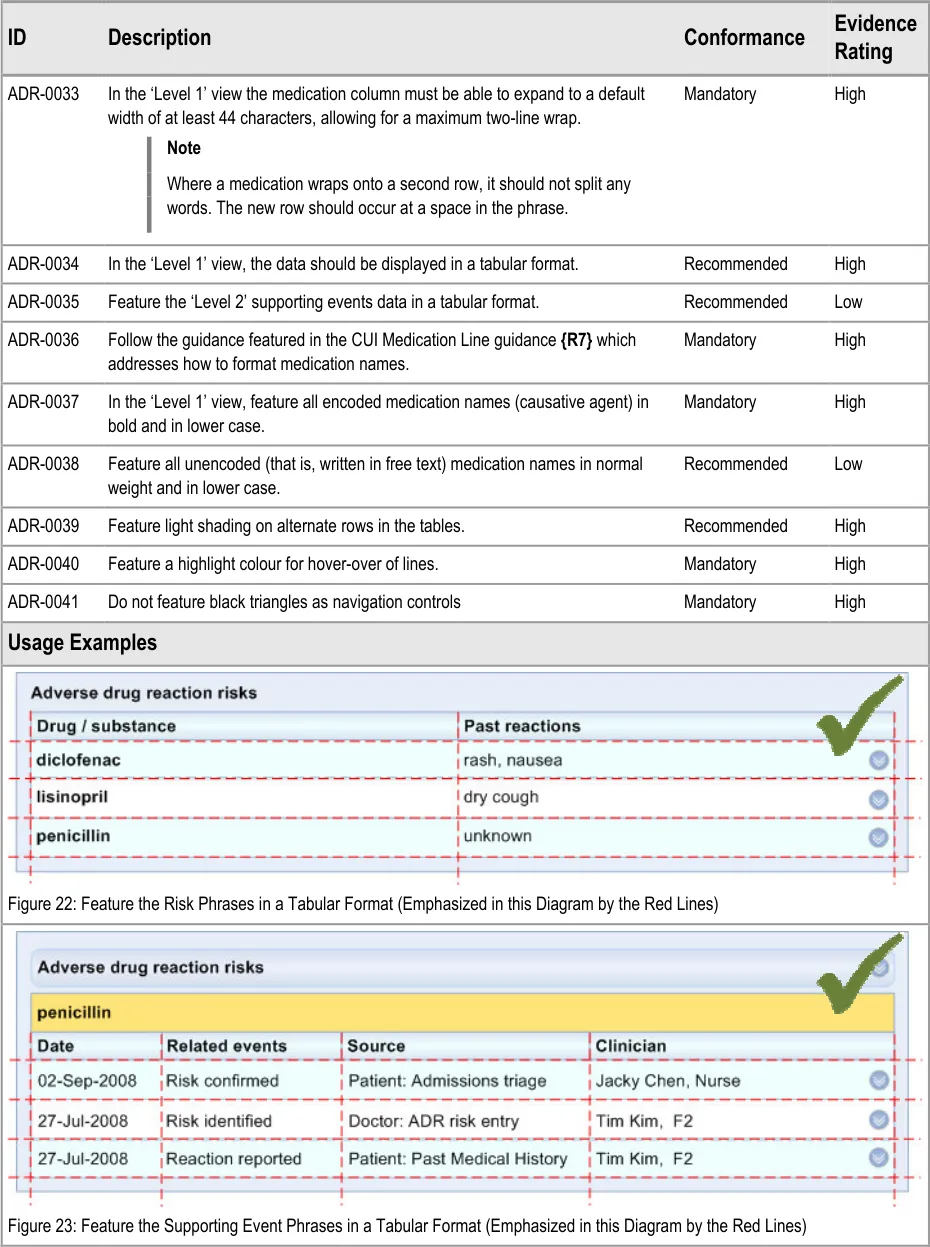

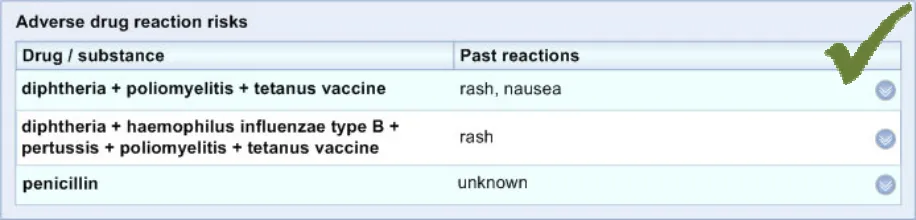

ADR-0033 3.3.4 In the ‘Level 1’ view the medication column must be able to expand to a default width of at least 44 characters, allowing for a maximum two-line wrap.

Note

Where a medication wraps onto a second row, it should not split any words. The new row should occur at a space in the phrase.

ADR-0034 3.3.4 In the ‘Level 1’ view, the data should be displayed in a tabular format.

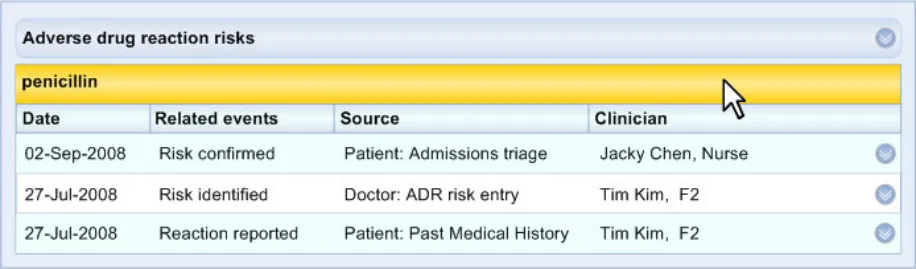

ADR-0035 3.3.4 Feature the ‘Level 2’ supporting events data in a tabular format.

ADR-0036 3.3.4 Follow the guidance featured in the CUI Medication Line guidance which addresses how to format medication names.

ADR-0037 3.3.4 In the ‘Level 1’ view, feature all encoded medication names (causative agent) in bold and in lower case.

ADR-0038 3.3.4 Feature all unencoded (that is, written in free text) medication names in normal weight and in lower case.

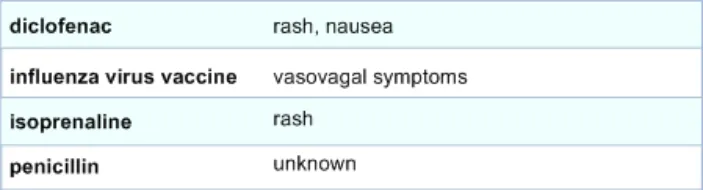

ADR-0039 3.3.4 Feature light shading on alternate rows in the tables.

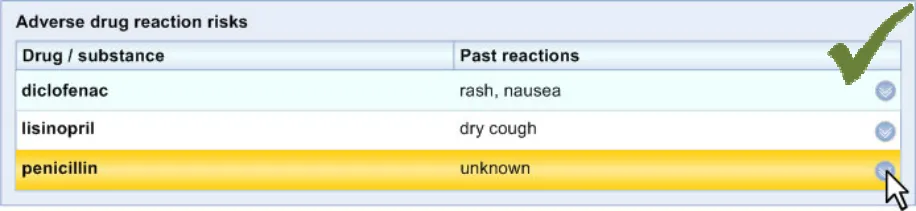

ADR-0040 3.3.4 Feature a highlight colour for hover-over of lines.

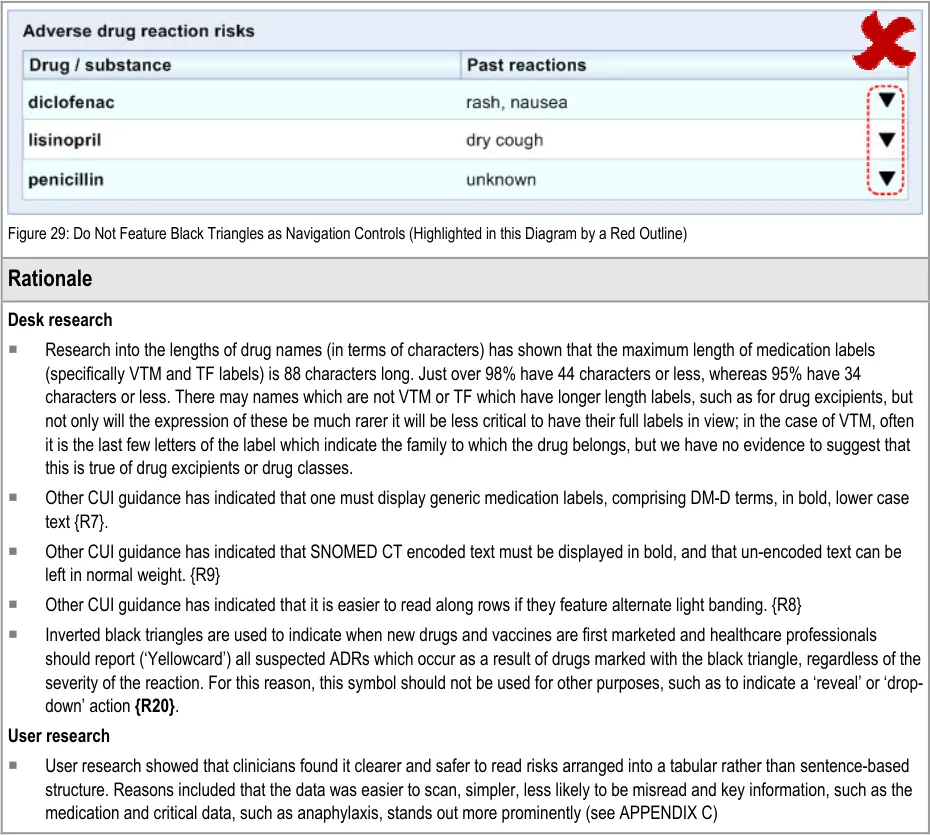

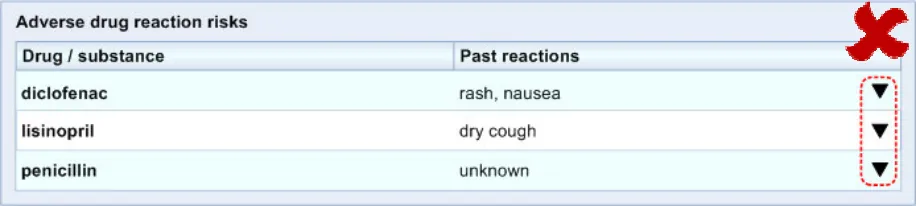

ADR-0041 3.3.4 Do not feature black triangles as navigation controls

ADR-0042 3.3.5 Feature a date for each discrete event item in the ‘Level 2’ view. This includes record-entry events, such as ‘risk identified’ or ‘risk confirmed’.

ADR-0043 3.3.5 Do not feature dates in the ‘Level 1’ view

ADR-0044 3.3.5 For each event item listed in Level 2, display, as a default, the date of entry, unless, at the point of entry, a different date has been specified (such the actual date on an event).

ADR-0045 3.3.5 Allow for the display of partial dates, where appropriate (in Level 2).

ADR-0046 3.3.6 For each ‘source’ description, feature the ‘source’ who first articulated the information (for example, ‘Patient’, ‘Doctor’, ‘Carer’)

ADR-0047 3.3.6 For each ‘source’ description, feature the encounter or situation in which the event took place (for example, ‘Past Medical History’, ‘Admissions Triage’)

ADR-0048 3.3.7 For each event phrase, feature the name of the clinician who recorded the event

ADR-0049 3.3.7 For each event phrase, feature the role of the clinician who recorded the event (for example , ‘Nurse’, ‘F2’, ‘Registrar’)

Page 37

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

ADR-0050 3.3.7 For each event phrase, feature the location in which the event was recorded (for example, ‘Hammersmith Hospital’). This may be included in the ‘further details’ sections

ADR-0051 3.3.8 Where the clinician has checked if the patient has any adverse drug reaction risks and has concluded that there are none, the system should display ‘No known adverse drug reaction risks’

ADR-0052 3.3.8 Where the system displays ‘No known adverse drug reaction risks’, it should also display the date and time when this phrase was recorded

ADR-0053 3.3.8 Where the system displays ‘No known adverse drug reaction risks’, it should also display provenance information relating to the author of the phrase, such as the name, role and, possibly, location of the author.

ADR-0054 3.3.8 Where no clinician has checked if the patient has any adverse drug risks, the system should display ‘Risk status unknown’

ADR-0055 3.3.9 If, upon displaying the risks, the term describing the medication will not trigger decision support the system should communicate this (for example, if the term is not expressed in structured terminology or if the term is not in the decision support system subset)

ADR-0056 3.3.9 Communicate the fact that a medication will not trigger decision support next to the medication label

ADR-0057 3.3.9 Communicate the potential lack of a decision support service by displaying either an icon with a hoverover message and/or appropriate text (depending upon space constraints)

ADR-0058 3.3.10 Maintain a structured format to the display of risk phrases in narrative text, as opposed to in a list

ADR-0059 3.3.10 Display risk phrases on successive lines rather than displaying them in a continuous line

ADR-0060 3.3.10 Provide information about the causative agent (medication) in a narrative text expression of an adverse drug reaction risk

ADR-0061 3.3.10 Provide information about the past reactions in the narrative text

ADR-0062 3.3.10 Ensure that the text indicates that the medication relates a risk of adverse drug reaction.

Table 10: Reference Summary of Guidance

Page 38

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

APPENDIX B STUDY ID 42: EXECUTIVE SUMMARY

B.1 Abstract

The UK National Health Service (NHS) Common User Interface (CUI) programme is a partnership between Microsoft® and NHS Connecting for Health (NHS CFH), which is part the NHS National Programme for Information Technology (NPfIT).

As part of CUI, the Clinical Applications and Patient Safety (CAPS) project has the goal of ensuring that software applications used by the NHS enhance patient safety. To achieve this, CAPS provides software developers with user interface design guidelines derived through a user-centric development process that includes explicit patient-safety evaluations.

This summary describes key findings from initial qualitative research carried out in August 2008 by the CUI CAPS team on Adverse Drug Reaction Risks (ADR Risks). These findings are a subset from a larger internal report prepared for the CUI CAPS ADR Risks team.

Purpose:

To understand current practice and hazards for ADR Risk display, to understand the purpose behind ADR Risk display in clinical contexts, and to gain clinical feedback on early design concepts. With the overall aim of providing design requirements for ADR Risk display.

Method:

Interviews: semi-structured telephone interviews with 12 Healthcare Professionals (HCPs), incorporating wireframe illustrations of early design concepts. Literature search: analysis of existing NHS CFH documentation on Allergies / ADR Risks and external references on Allergy / ADR Risk documentation.

B.2 Research Objectives

To gain an understanding of:

1. Current paper and electronic practices for documenting ADR Risks (such as allergies) in a variety of clinical contexts

2. Current advantages and disadvantages with these practices, in particular known and potential patient safety hazards with electronic display of ADR Risks

3. What purpose the documentation of ADR Risks has in clinical contexts

4. The potential impact of, and hazards associated with, implementing the existing NHS CFH recommendations on ADR Risk data structure for electronic records, such as by the categorisation of ADR Risks

5. Clinical feedback on specific design areas of ADR Risk display, such as the display of the nature of reaction and stating positive absence

B.3 Research Design

Interviews were semi-structured and incorporated early design concepts for ADR Risk display. These concepts were wireframe designs based on existing NHS CFH and CUI work, and were used as a means to stimulate discussion around key areas. Interviews were carried out by telephone and lasted one hour. Detailed notes from the interviews were qualitatively analysed using thematic coding.

Page 39

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

The literature analysis was based on:

• NHS CFH documentation on Allergy / ADR data structures provided by the CUI NHS CFH Specific Audience

• Previous ADR Risks groundwork done by the CUI project and NHS CFH

• Material collected during previous CUI research – not specific to ADR Risks

• External literature found through the internet

External literature was found using Google, PubMed and find-health-articles.com, using search criteria such as ‘drug hypersensitivity’, ‘drug allergy documentation’ and ‘strategies allergy documentation’. Analysis focused on published material from healthcare journals or health organisations such as the World Health Organisation (WHO) and UK National Patient Safety Agency (NPSA).

B.4 Results

B.4.1 Participant Description

12 participants were interviewed separately. Each had either volunteered through the NHS CFH Event Management System signup (EMS) or had been contacted by the CUI having taken part in previous CUI work. Five out of 12 respondents had previously taken part in CUI clinical engagement for other work areas. Table 12: Interview Participants shows a summary of the participants’ profiles:

303 Nurse Renal (outpatients) Consultant Teaching Hospital - Med

304 Pharmacist Management Assc Director Teaching Hospital Cerner R.0, (iSoft), Med / High electronic discharge

305 Pharmacist Research Junior Teaching Hospital ServeRx Med

306 Doctor On rotation F2 DGH - Med / High

307 GP GP Senior GP Meditel, Micro-Doc, High EMIS LV / GV / PCS

308 Doctor Paediatrics Assc Specialist DGH (Foundation) - Med

309 Pharmacist EPR Senior Teaching Hospital iSoft CM Med

310 Doctor Care of the Elderly ST3 DGH (Foundation) Electronic discharge Med

311 Nurse / Change Critical Care / facilitator change management

Sister Teaching Hospital Cerner Low / Med

312 Pharmacist Research Senior (Prof) Teaching Hospital ServeRx High

313 Doctor A&E / on rotation F2 Teaching Hospital EMIS LV, Vision, Med Symphony

314 Doctor A&E / on rotation F1 Teaching Hospital EMIS, Vision High

Table 11: Interview Participants

All participants were clinical staff who had experience of viewing and recording ADR Risks as part of their work (usually as ‘drug allergies’). The majority of participants were from acute secondary care, with one participant from general practice and none from community care. The 11 secondary care participants were from eight different trusts, with diverse geographical locations.

Page 40

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Most participants had used some kind of electronic patient record, which meant they had experience of electronic display of some kind of ADR Risk list. The majority also had medium-to-high computer experience, where high experience included items such as being familiar with spreadsheet calculation functions and having an understanding of databases.

B.4.2 Example Current Practice

• Many kinds of clinical staff will be viewing and recording patient’s ADR Risk status and details

• ADR Risks currently may be recorded on a large range of documents: drug charts, the body of the medical notes, warning sticker on front of medical notes, wristbands, bed notices, handover sheets, discharge forms, and so on

• The proximal reasons for a clinician viewing / recording ADR Risks are that they are trying to understand now OR document so that someone else (or themselves) can understand later:

  • What caused the reaction?

  • Exactly what reaction did it cause?

  • What was the mechanism that linked the agent to the reaction?

• The ultimate reasons a clinician may be viewing or recording ADR Risks are to:

  • Know what you or someone else should not be prescribing / dispensing / administering now or in the future

  • Know what you CAN prescribe / dispense / administer now or in the future

  • Know whether the potential risk of giving the agent again is outweighed by the benefit

  • Know what other treatment might be required if the supposed causative agent were to be given again (for example, increased monitoring)

B.4.3 Example Known and Potential Hazards

• Currently, finding the detail about a patient’s allergies (ADR Risks) involves hunting in the notes, which is time consuming and error-prone, meaning information that would support, refute or add detail to a risk is missed

• Over cautious marking of a patient as allergic to an agent limits future therapeutic choice, which can have negative consequences for the patient and the healthcare organisation

• Excessive false positive ADR Risk documenting can lead clinicians to ignore allergy documentation

• Summaries of the nature of reaction may hide important detail and lead staff to make incorrect assumptions. ‘Rash’ in particular is problematic

• The nature of reaction is often not documented for a risk

• The nature of past reactions may not be a good predicator of the nature of future reactions, especially when surrounding contextual information is not available

• Staff may incorrectly assume that a previous administration of an agent without an adverse reaction means that the agent could not be the cause of a subsequent reaction. Whereas the initial administration could have been when sensitization to the agent occurred

Page 41

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

B.4.4 Key Findings per Design Area Categorisation of Risk

Participants did not have a shared understanding of the terms: ADR, intolerance, allergy.

Participants were not familiar with having to categorise a reaction into allergy / intolerance / ADR. 10 out of 12 participants had concerns about the validity and safety of being forced to categorise when documenting ADR Risks or about seeing these categories when subsequently viewing the risks.

Causative Agent

The most useful piece of information in an ADR Risk is the causative agent.

When trying to determine the causative agent for a reaction, clinicians would usually require access to a large range of information, much of which is not often available to them.

Nature of Reaction

Currently it is good practice to document the nature of reaction with the ADR Risk.

Participants differed over whether it was possible to summarise the nature of reaction safely in a word or short phrase. They also differed over whether in an electronic display it was necessary to always display the nature of reaction when viewing the ADR Risk.

The nature of reaction was generally used to interpret the ‘severity’ of the reaction. However some participants pointed out problems with assuming a ‘severity’ of future risk based on short descriptions and past reactions.

Threshold of Documentation

Though the majority of participants would document all reactions possibly caused by drugs, some felt that what you documented would vary due to factors such as: ‘significance’ of reaction, seniority of staff and where you were documenting the risk.

Generalising Risks

The generalising of risks is seen as currently problematic as staff may not know what class a drug belongs to, or how the reaction may generalise. Therefore there is the danger of mistakenly generalising, or mistakenly not generalising, a reaction.

Positive Absence

Though a variety of terms were currently used (NKDA, NKA, nil known), all secondary care participants were familiar with the concept of documenting positive absence.

Modification

All participants felt it should be possible to ‘remove’ or deprecate a risk from the active ADR Risk List in certain situations. However all felt that subsequent readers of the ADR Risk List should be aware of these ‘removed’ items.

Event / Risk Propensity Distinction

Participants who had used GP systems were familiar with the distinction between events and risk propensity, and felt it was useful. Other participants were less clear about the distinction, but felt it was similar to structures sometimes used in paper notes.

Page 42

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Dates

Many participants were confused by the dates presented in the design concepts, which could be interpreted as the date of: first reaction, diagnosis, documentation or review / confirmation.

Certainty that Agent Caused Reaction

All participants understood the concept ‘probably caused by’, most found it familiar, but only some felt it was useful, as only in a minority of cases would the causative agent be certain.

Page 43

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

APPENDIX C STUDY ID 45: EXECUTIVE SUMMARY

C.1 Abstract

The UK National Health Service (NHS) Common User Interface (CUI) programme is a partnership between Microsoft® and NHS Connecting for Health (NHS CFH), which is part the NHS National Programme for Information Technology (NPfIT).

As part of CUI, the Clinical Applications and Patient Safety (CAPS) project has the goal of ensuring that software applications used by the NHS enhance patient safety. To achieve this, CAPS provides software developers with user interface design guidelines derived through a user-centric development process that includes explicit patient-safety evaluations.

This summary describes key findings from user research carried out in September 2008 by the CUI CAPS team on the display of Adverse Drug Reaction Risks (ADR Risks). These findings are a subset from a larger internal report prepared for the CUI CAPS ADR Risks team.

Purpose:

To gain clinical feedback on design concepts for displaying ADR Risks in electronic systems.

Method:

Interviews: structured interviews with 13 Healthcare Professionals (HCPs) eliciting HCP preferences and qualitative feedback on design alternatives. Online survey: survey with 56 HCPs eliciting HCP preferences and qualitative feedback on a subset of the design alternatives used in interview.

Key Results:

Based on clinician preference and rationale:

• Do not categorise risks into allergy / ADR / intolerance

• Display a succinct summary of past reactions in the risk statement, clarifying that they are past reactions

• Position the causative agent first in the risk statement

• Do not display dates at the top level, as long as they are easily accessible

• Allow immediate access to the information on supporting events

C.2 Research Objectives

To gather HCP design preferences, qualitative feedback and possible patient safety hazards of CUI ADR Risk display designs.

Focusing on the areas of:

• Risk categorisation

• Displaying the nature of reaction

• Inclusion criteria of an ADR Risk List

• Sort orders

• Headings

• Dates

• Layout

• Positive absence and null states

Page 44

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

• Levels below the risk statement

• Drug class

• Representing an ADR Risk as narrative

• Decision Support absence

C.3 Research Design

Interviews were structured, lasted one hour and carried out in person or by telephone. Participants were taken through wireframe design alternatives for each area of investigation and asked for preference based on patient safety criteria. Other qualitative feedback was elicited covering rationale for preference, design fit with current and best practice, design understandability and any potential hazards resulting from the designs. Detailed notes from the interviews were qualitatively analysed using thematic coding.

Online surveys covered a subset of the interview’s design areas and similarly elicited HCP preferences for design alternatives, with the option to record rationale for preference and other qualitative feedback. The survey was distributed by NHS CFH to NHS employees who had signedup to participate through the NHS CFH Events Management System (NHS CFH EMS) or who had provided their contact details as part of previous CUI work. Recipients were able to forward the survey to colleagues. No remuneration was supplied for completing the survey. The survey took 20-40 minutes to complete.

C.4 Results

C.4.1 Participant Description Interviews

13 participants were interviewed separately. Each had either volunteered through the NHS CFH EMS signup or had been recruited by an HCP who had volunteered. Three out of 13 respondents had previously taken part in CUI clinical engagement for other work areas.

Table 12: Interview Participants shows a summary of the participants’ profiles:

329 Nurse Practitioner Emergency Senior Walk-in centre Walk-in Centre’s Low / Med (basic CIS)

330 Nurse Practitioner Emergency Senior Walk-in centre Walk-in Centre’s Med / High (basic CIS)

331 Nurse Practitioner Emergency Senior Walk-in centre Walk-in Centre’s Low / Med (basic CIS)

332 Nurse Practitioner Emergency Senior Walk-in centre Walk-in Centre’s Low / Med (basic CIS)

333 Nurse Practitioner Emergency Senior Walk-in centre Various Med / High

334 Nurse Practitioner / Emergency Senior Teaching Hospital A&E System, High IT Lead various local

335 Nurse Practitioner Emergency Senior Teaching Hospital A&E System, Med various local

341 Doctor Emergency SpR Teaching Hospital A&E System, Med / High various local

Page 45

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

336 Doctor GP 7 years GP GP EMIS Med / High

337 Doctor GP trainee SpR GP / Hospital EMIS, various Med / High

338 Research Nurse Renal Senior Teaching Hospital Proton, various Med

339 Doctor Palliative care SpR DGH / Hospice Various local Med / GP trainee

340 Doctor GP 17 years GP GP Vision Med / High

Table 12: Interview Participants

All participants were clinical staff who had experience of viewing and recording ADR Risks as part of their work (usually as ‘drug allergies’). The majority of participants were from acute secondary care, with three participants from general practice and none from community care. The 10 secondary care participants were from four different trusts, with diverse geographical locations.

All participants had used some kind of electronic patient record, which meant they had experience of electronic display of some kind of ADR Risk List. The majority had medium computer experience, where high experience includes items such as being familiar with spreadsheet calculation functions and having an understanding of databases.

Online Survey

56 respondents completed the survey during the seven days that it was live. Table 13: Survey Respondents shows a summary of the respondents’ profiles:

Ward Manager 2%

Midwife 2%

Other Nurse 7%

Junior Doctor 19%

General practitioner 12%

Medical Consultant 9%

Other doctor 2%

Anaesthetist 2%

Physiotherapist 2%

Allied health professional 2%

Pharmacist 25%

Healthcare informatician 2%

Healthcare manager 5%

Software - manager 1%

Other 9%

Table 13: Survey Respondents

Roles that were not represented by survey respondents have been removed from the table.

Page 46

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Other respondent descriptions:

• 40% had not taken part in CUI clinical engagement before

• 76% had worked in NHS for more than five years

• 71% worked in secondary care, 16% worked in general practice

• 75% had created or modified a spreadsheet calculation function, implying a high familiarity with computer use

• Respondents were from diverse geographical locations

C.4.2 Design Areas Categorising Risks

• Survey respondents were not able to consistently categorise a reaction into: ADR / allergy / intolerance based on short reaction statements, many also described problems in performing the task

• Many interviewees struggled to describe the difference between ADR and intolerance

• Though some interviewees felt risk categorisation might be useful, they felt it was likely to be unreliable

• The majority of survey respondents and interviewees preferred a design that did not display risk categories. Rationale for preference was that the categorisation was not useful or at least less useful (and familiar) than the nature of reaction

Displaying the Nature of Reaction

• The majority of survey respondents and interviewees preferred a design with a reaction shown at the ‘top level’. The presence of reaction information was given as the key reason for preference

• A succinct summary of the reaction was preferred to longer free-text. However, some concerns were raised about summarising reactions in several words – however this is already widespread current practice and no participants felt it was impossible

• Showing ‘severe’ reactions only was seen to be problematic. But if a universal distinction can be found, it might be useful to indicate it in some way

Inclusion Criteria of ADR Risk List

• There are likely to be differences of opinion about whether an item should be included on a risk list. Issues that therefore need to be addressed are:

  • Dealing with long ADR Risk Lists

  • Dealing with list management where HCPs using the list have diverse perspectives

  • Clear indication about what kinds of item the list does and should contain

• Some clinical applications are likely to use risk lists that are not limited to ADR Risks

Sort Order of ADR Risk List

• Though sorting risk statements by ‘most potential for harm’ might be desirable, objectively determining this for all items would be difficult and possibly misleading

Page 47

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Causative Agent Headings

• All of the design alternatives for a causative agent column heading were seen as problematic. Alternative suggestions included those often seen on drug charts, for example, ‘Medication / Substance’

Dates

• Date labels ‘Last Confirmed’ and ‘Risk Identified’ were seen as confusing. Clarification of the risk propensity / event distinction may be necessary with whatever labels are used for dates

• The majority of survey respondents and interviewees preferred dates to be on-demand rather than continuously displayed at the top level of the risk display, though this was not a strong preference

List Layout

• Preference and rationale showed that the causative agent should be positioned first in a row, so that it is read first and stands out

• Preference and rationale showed that the risks should be displayed in columns rather than ‘sentences’

Positive Absence and Null States

• At least in acute secondary care, stating positive absence was expected, and could include these elements:

  • ‘no known’ (rather than ‘no’)

  • An indication of what is not known

  • Date of risk status last checked

  • Clear access to details of how this was checked

• Six of 12 interviewees misinterpreted ‘no recorded adverse drug reactions’ as a label for a null state – instead believing it to indicate a positive absence

Levels

• All interviewees felt that information about supporting events should be immediately accessible from the risk statement. For example, not hidden behind a tab

The Term ‘Risk’

• Several interviewees misunderstood the term ‘Risk’ believing it to be generic knowledge support information. In addition, reactions based on past events should be clarified as past, rather than statements of the nature of future risk

Drug Class

• Automatic display of drug class with the risk statement was felt to be unnecessary and potentially misleading as risks with specific medications may not necessarily generalise to the familiar drug categories such as ‘NSAID’

• Most interviewees did not understand a description of the chemical classification ‘Heteroaryl acid’

Page 48

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009

Microsoft and NHS Connecting for Health Confidential

Displaying Risks as Narrative Text

• Interviewees preferred risks expressed in narrative as structured text (such as bullet points) rather than as prose in a paragraph

Page 49

Display of Adverse Drug Reaction Risks User Interface Design Guidance Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 13 January 2009
