Design Consultation Document

Prepared for

NHS Connecting for Health

Friday, 18 December 2009

Version 1.0.0.0 Baseline

Prepared by

Clinical Applications and Patient Safety Project

NHS CUI Programme Team

This document was prepared for NHS Connecting for Health which ceased to exist on 31 March 2013. It may contain references to organisations, projects and other initiatives which also no longer exist. If you have any questions relating to any such references, or to any other aspect of the content, please contact cuistakeholder.mailbox@hscic.gov.uk

Executive Summary

Problem

SNOMED CT® encoded clinical statements do not have a standardised display format and, as such, there is a lack of consistency in user interfaces and added potential for misinterpretation when viewing such statements

Scope

Perform groundwork for guidance to define display standards

Headline Findings

A need for significant education for the clinical community on benefits and uses from creating SNOMED CT encoded structured records at point of care
Users prefer designs that minimise the repetition of data (for example, by using headings to present common attributes)
Using standard SNOMED CT descriptions for modifiers and qualifiers for example, ‘Known absent’ increases the risk of confusing users
The free-text annotations that cannot be captured in standard SNOMED CT descriptions are often vital to understanding the true meaning of the statement, so users need to see and/or access that information

Executive Summary
Problem Statement
Background for Investigation
Scope Statement
Patient Safety Overview
About this Design Consultation
Assumptions
Introduction to the Design Approach
Introduction to Scenarios
Introduction to the Statement Structure
Content
Future Work Summary
Supporting Materials

Problem Statement

The Problem

SNOMED CT encoded clinical statements represented within the Logical Record Architecture (LRA) do not have a standardised display format and, as such, there is a lack of consistency in user interfaces and added potential for misinterpretation when viewing such statements

User Experience Goals

Analyse common recording patterns defined in the LRA documentation, matching these to the RCP Headings
Determine recommended methods and rules for the display of those patterns
Provide consistent display rules for the components of a clinical statement, such as dates, times, clinical terms and qualifiers

Background for Investigation

Background

Encoded clinical statements express information about a patient’s health record and provision of care
SNOMED CT is a structured encoding system for health terms
SNOMED CT terms are used in combination with the NHS LRA to provide a combined terminology and information structure

Logical Record Architecture (LRA) The LRA is designed to allow better information sharing and based on international standards. It describes what data should be shared across multiple applications and how data will be managed, accessed and interpreted between independent information systems. The LRA includes early work on common patterns of clinical statements. Statement designs were tested based on these recording patterns, along with the standardised headings from the RCP Standards for Record Keeping project*. The two domains tested were admissions clerking and a summary presented as a chronological list.

Recording patterns

Past medical history (PMH) Allergies, adverse reactions (AAR)

Past surgical history (PSH) History of current condition (HCC)

Family history (FH) Current medication (CM)

Medication history (MH) System review (SR)

See the Overview document

Scope Statement

In Scope

Groundwork for future guidance on the display of encoded clinical statements for use in delivery of clinical care
Sub-set of existing clinical statement ‘patterns’ with reference to the NHS LRA and standardised headings from the Standards for Record Keeping work undertaken by the RCP
Indicating ability to interact with the encoded clinical statement:
- For example, to view further associated information
- The access to the edit mode for that statement

Out of Scope

Post coordinated SNOMED CT statements beyond those described in the LRA common recording patterns
Sealed envelopes and other patient confidentiality issues
Demonstrating linkage of statements as defined within the LRA

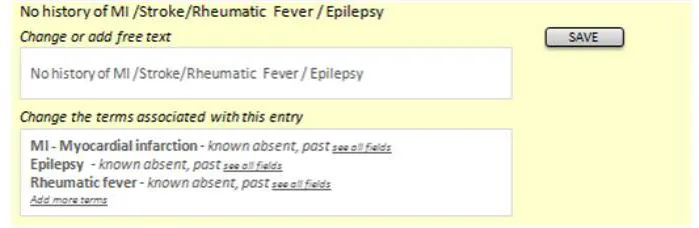

Input of statements and/or encoding
Views for ‘clinical coders’
Multiple patient views
Patterns for treatment
Encoding for payment or other non-clinical purposes

Patient Safety Overview

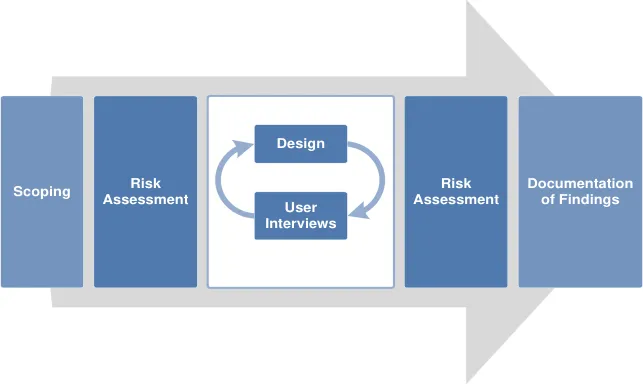

The development lifecycle for this consultation document includes an integrated patient safety assessment and management process.

Known patient safety incidents relevant to this area have been researched and reviewed as part of ongoing development. A diverse set of clinical users were consulted during this process.

The Hazard Log records all the risks that have been identified during development and describes potential mitigatory actions that could be considered alongside future exploratory work in this area. The Hazard Log is a live document that will be updated as this area of work is developed further.

Until this work is progressed and developed to full design guide status it will not be in a position to achieve full Clinical Authority to Release (CATR) from the NHS Connecting for Health (CFH) Clinical Safety Group (CSG).

Please refer to www.cui.nhs.uk for further information on the patient safety process and for the safety status and any relevant accompanying safety documentation for this consultation document.

About this design consultation

The purpose of this Design Consultation document is to summarise the current learning that has been achieved in the design and research process to date. This is articulated primarily in terms of the features that comprise the preferred current design. Four key themes have emerged from these design features:

Statements
People, dates and headings
Visual design
Tasks

For each theme we summarise the design exploration and the feedback that came out of the studies. We will then summarise the emerging themes and proposed next steps for future exploration.

Assumptions

Based on feedback from the NHS CUI project team and feedback from the Opening Risk Assessment (ORA), the following assumptions informed the designs and scenarios:

1. Do not show the entire SNOMED CT expression with the term identifiers

2. Hide default values for context wrapper modifiers for example, ‘subject of record’ defaults to patient, ‘finding context’ defaults to known present, current/past defaults to current 3. Do not use the phrase ‘SNOMED CT’ on screen, for example, as a label, as this confuses users who currently have limited understanding of a) what that is and b) why it is useful to them

All scenarios tested were around the point of care and did not look at data validation or coding for payment scenarios. Users were given the following caveats about designs shown at the start of the risk assessments:

Fully SNOMED CT encoded records
Conforms to standardised records structure of the LRA and RCP Headings project
Records are shared
The same record can be viewed in multiple ways
There is a full electronic record
Access to the full record is quick and easy

Introduction to the design approach

One of the key areas of focus for this work was the relationship users had with the encoded terms and the additional free text that was not coded. Throughout the three phases of testing, different designs were shown that explored the display of encoded terms versus free text. Three key approaches were explored in multiple designs:

Repeat the encoded terms separately from the free text ( Repeated )
Only show the encoded terms and have users click to reveal the additional free text ( Separated )
Intelligently merge the encoded terms with the free text ( Unified )

Repeated

Showing the full statement in its unencoded state, with the encoded clinical terms shown separately (that is, repeated elsewhere in the design)

18 December 2009

Slide 10

Introduction to scenarios

Two common clinical scenarios were used in the testing, uncovering different aspects of displaying statements. Several designs were tested for both scenarios, with some common risks emerging.

Scenario 1

Single session, one clinician
Typical scenario: Admissions clerking

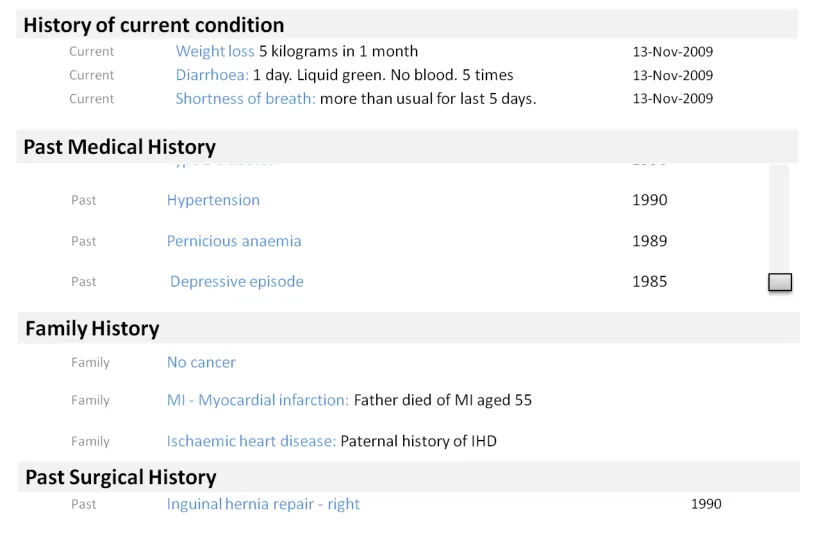

Organised by common headings This scenario showed all the statements from one session. All the statements shown had been entered at the same time, by the same person, for example during clerking

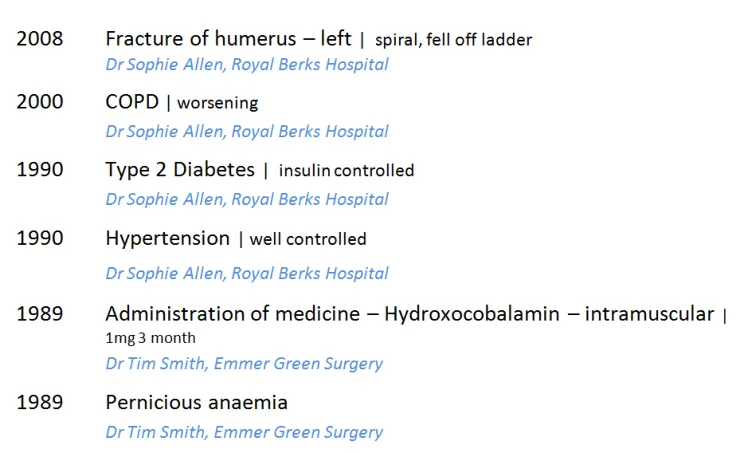

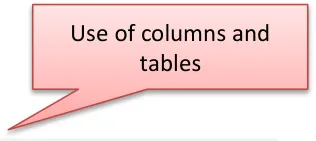

One example design from this scenario:

Scenario 2

Multiple sessions, multiple clinicians
Typical scenario: Patient review
Chronologically sorted This scenario dealt with a heterogeneous list of patterns, from different sessions. These had different authors, times, dates. The data was also more variable, for example, in some cases the statements were terse with only minimal information available

Introduction to the statement structure

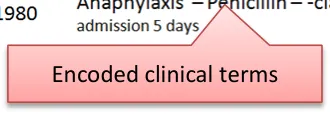

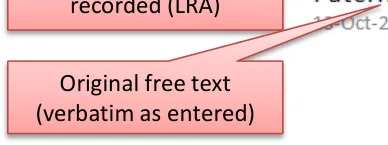

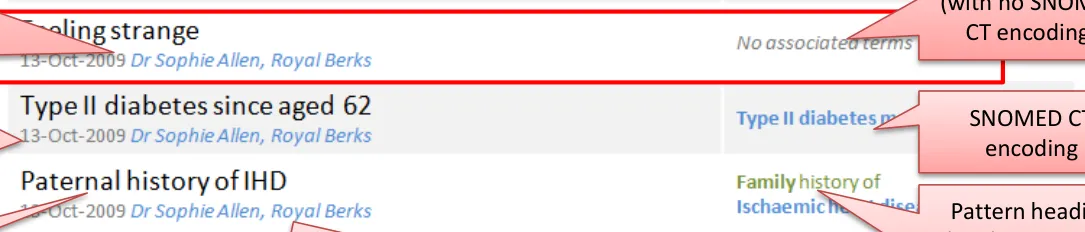

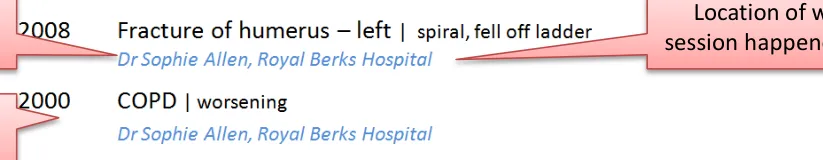

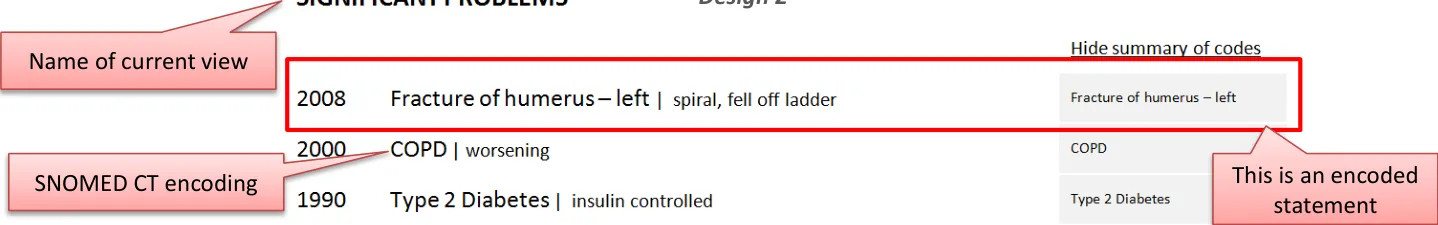

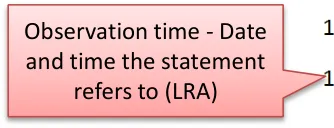

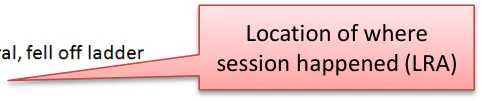

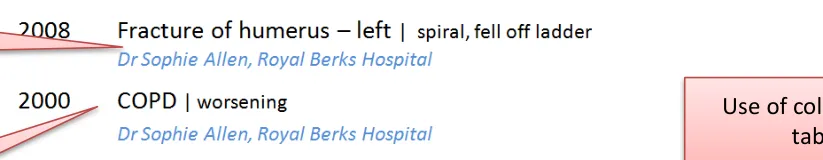

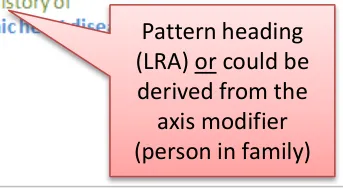

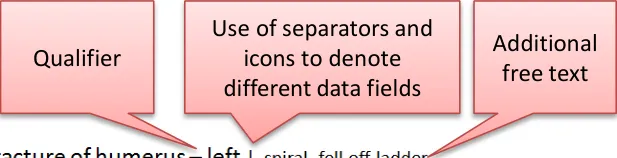

These two designs illustrate how the different parts of the clinical statement can be assembled in the interface. These are not necessarily the recommended designs but both are good examples of how data structured using SNOMED CT and the LRA, together with the unencoded free text, should be presented in a unified and clear way.

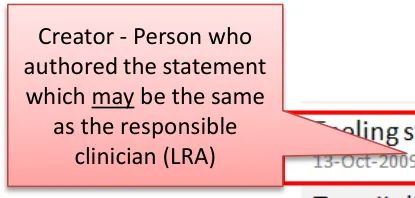

Creator - Person who authored the statement which may be the same as the responsible clinician (LRA)	Design 1 This is an unbound statement (with no SNOMED CT encoding)	Col3
Creator - Person who authored the statement whichmay be the same as the responsible clinician (LRA)	CT e	CT e
Creator - Person who authored the statement whichmay be the same as the responsible clinician (LRA)	CT e

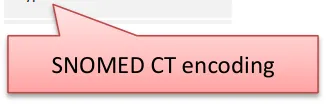

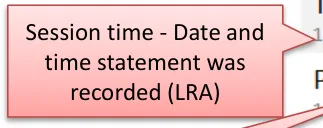

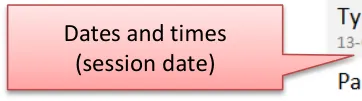

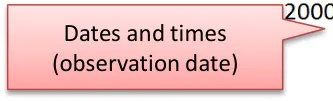

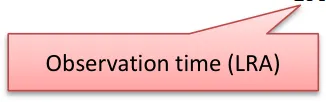

Session time - Date and time statement was recorded (LRA) SNOMED CT encoding Pattern heading (LRA) or could be derived from the axis modifier (person in family) Original free text (verbatim as entered) Location where the session happened (LRA)	Session time - Date and time statement was recorded (LRA) SNOMED CT encoding Pattern heading (LRA) or could be derived from the axis modifier (person in family) Original free text (verbatim as entered) Location where the session happened (LRA)	Session time - Date and time statement was recorded (LRA) SNOMED CT encoding Pattern heading (LRA) or could be derived from the axis modifier (person in family) Original free text (verbatim as entered) Location where the session happened (LRA)

CONTENT

Themes	Topics	Themes	Topics
Statements	Introduction to statements Perceptions of SNOMED CT Free text and encoded clinical terms Icons and graphical noting Unbound statements* Axis modifiers** Sequence of text Related statements	Visual Design	Introduction to visual design Formatting of statements Tables and columns
People, dates and headings	Introduction to people, dates and headings Dates and times People Visual hierarchy and headings	Tasks	Introduction to tasks Task-based design Spotting mistakes Editing View controls

Notes *Statements created without any SNOMED CT structure ** For example, ‘Known Absent’ (Negation)

THEME 1 - STATEMENTS

Introduction to statements Perceptions of SNOMED CT Free text and encoded clinical terms Icons and graphical noting Unbound statements Axis modifiers Sequence of text Related statements

Introduction to statements

This section examines how to present the statement components in a safe and usable way. Key areas of focus:

- How to sequence the different parts of the statement to reduce risk of misinterpretation in the different scenarios

- How to indicate the relationship between the free text and the encoded term

- How best to present the encoded terms so users can read and understand them

- How to present statements that do not have any encoding (unbound)

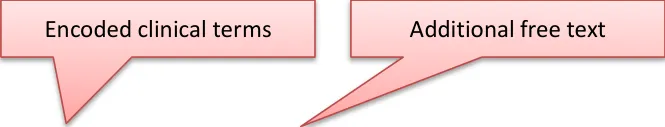

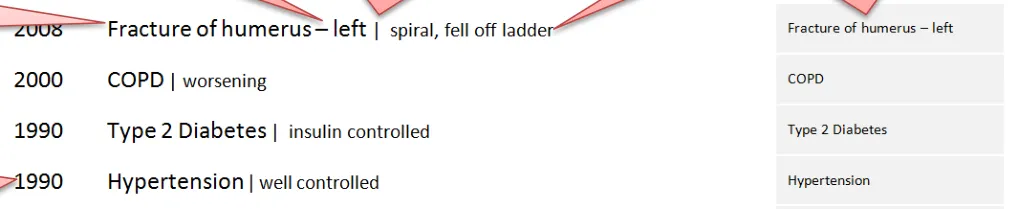

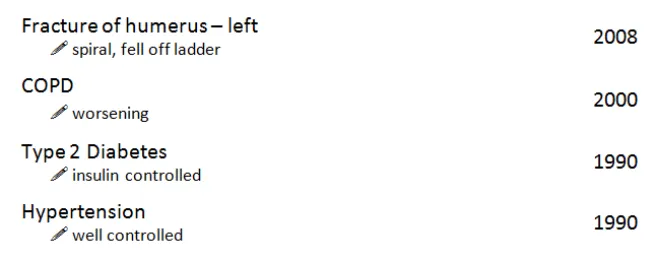

The text of the statement typically consists of three main parts:

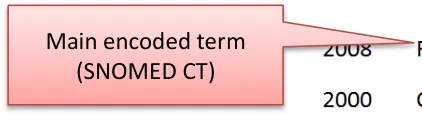

- The main encoded term (for example, _COPD)_

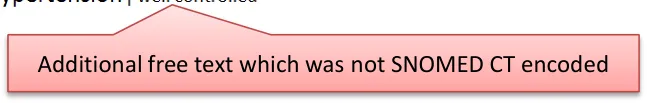

- Additional free text (for example, _spiral, fell off ladder)_

- Qualifiers and modifiers (for example, laterality and negation)

Statements – Perceptions of SNOMED CT

Design exploration and findings to date

Users interviewed had an ambivalent attitude to SNOMED CT:

- One user said that the need to see the data encoded structure correlated to their confidence levels in the system’s

accuracy, with low confidence driving an increased need to check There was some confusion or distrust over encoded statements generally:

- Two users from the phone interviews had experienced issues with poor quality of encoding, with family history

conditions being wrongly attributed to the patient

- It was usually cited as a way to get paid (which refers to different encoding, ICD-10/OPCS-4, for different purposes) but

highlights the general misconceptions in the users consulted Encoding of statements is usually done by specialised teams:

- Either senior doctors or trained coders

- Most interviewed had not done any encoding of statements themselves

Some users said they would want to check their own encoding

Statements – Free text and encoded clinical terms

Design exploration and findings to date 1

The visual relationship between the free text and the encoded clinical terms was tested over several sessions.

Three key approaches were explored in multiple design treatments:

Repeated
Separated
Unified

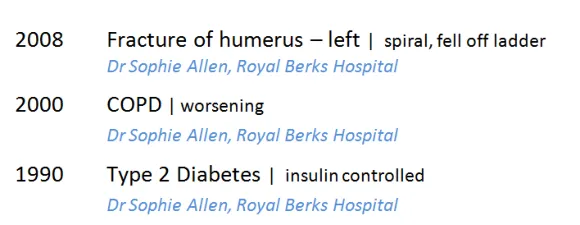

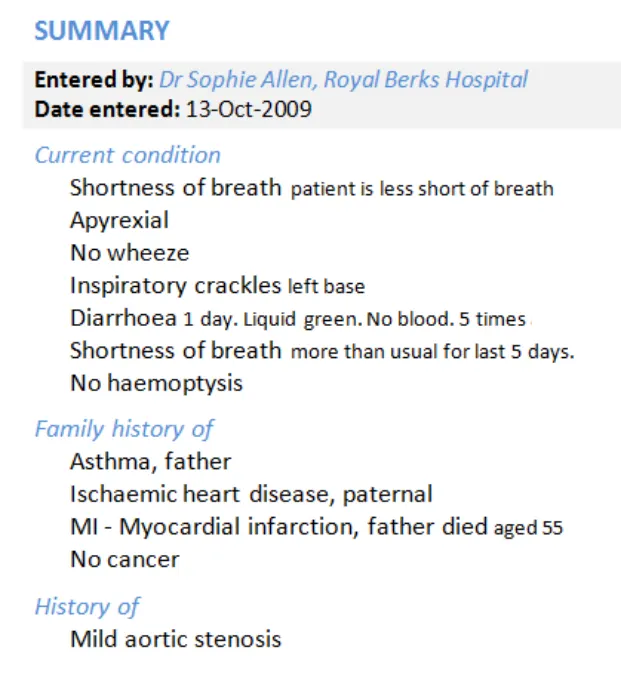

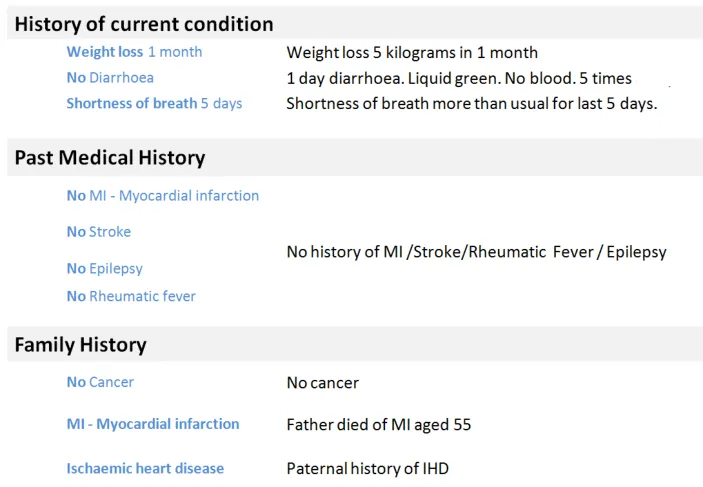

The optimum design from these findings appears to be Unified:

This made best use of screen space and avoided unnecessary repetition

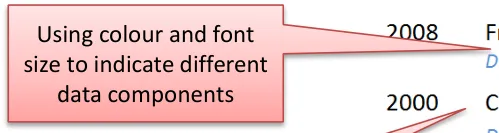

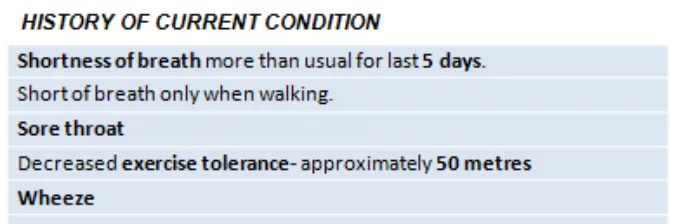

Differentiated font size between free text and encoded terms was an elegant and nonobtrusive way to show the structure
This did not compromise the readability of the statements

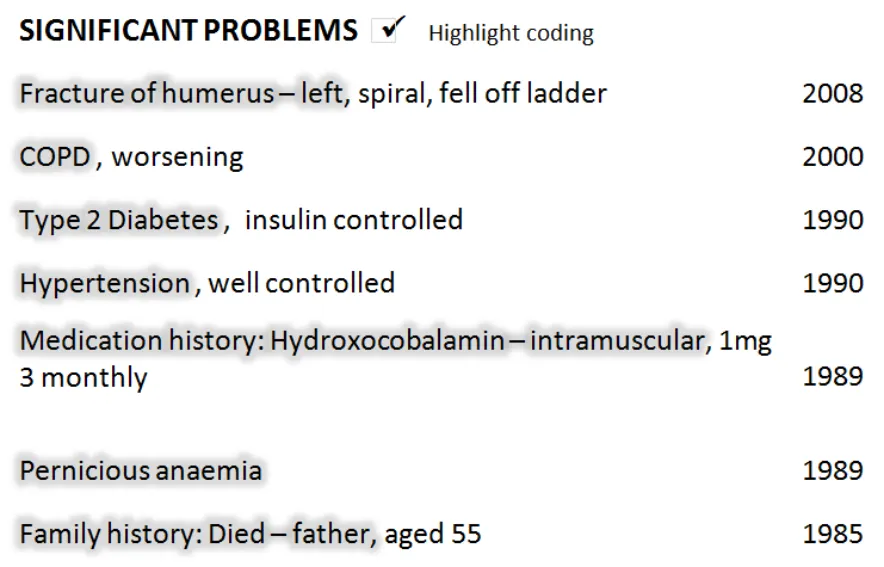

Additional controls to highlight encoded clinical terms also seem to be useful to users, although not essential

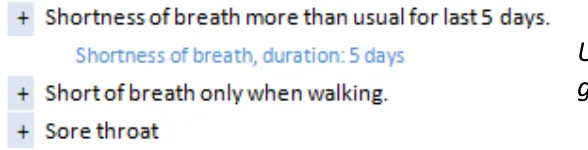

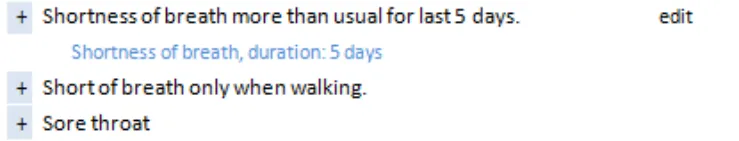

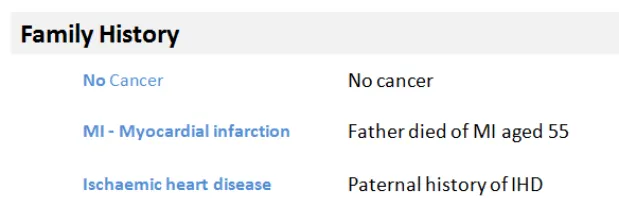

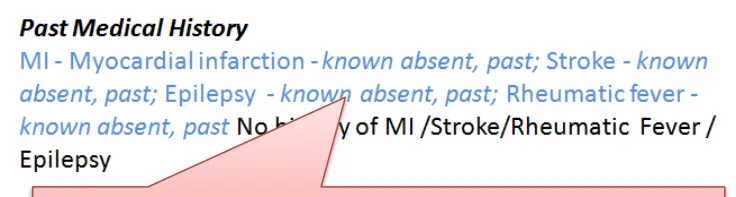

Repeated: Showing the full statement in its unencoded state, with the encoded clinical terms shown separately (that is, repeated elsewhere in the design)

Separated: Showing only the encoded clinical terms, with the user required to request through a control viewing the additional free-text

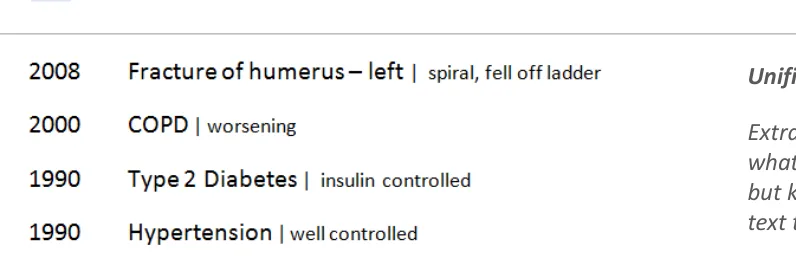

Unified: Extrapolating the encoded clinical terms and indicating what was the additional free text that was not encoded but keeping them together to form a single phrase of text that can still be read as one statement.

Statements – Free text and encoded clinical terms

Design exploration and findings to date 2

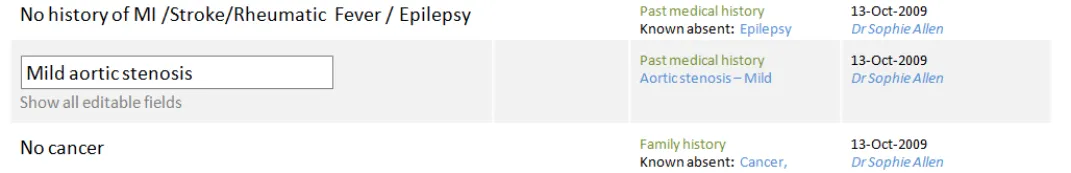

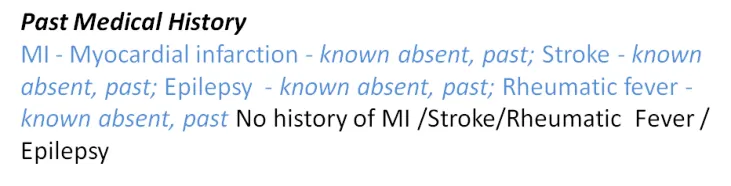

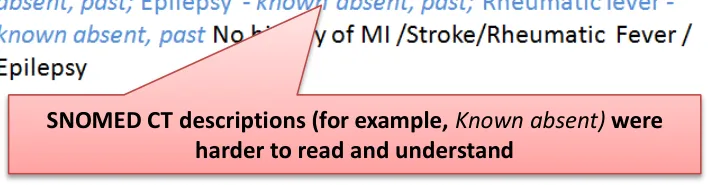

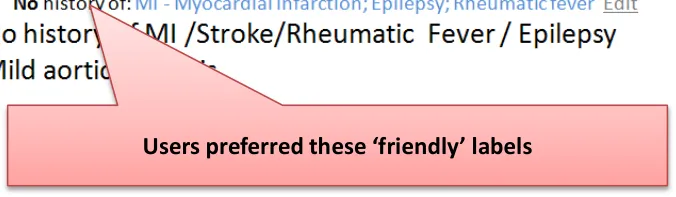

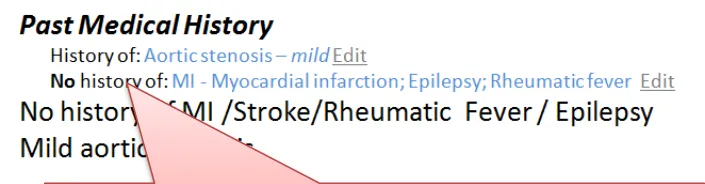

Unequivocal preference for ‘friendly’ labels, not a list of descriptions of modifiers and qualifiers:
- For example, No history of was always preferred to Known absent, past
- This would require an interface terminology for axis modifiers
Showing only the encoded terms without the additional free text for a single statement was risky because important clinical information could be missed

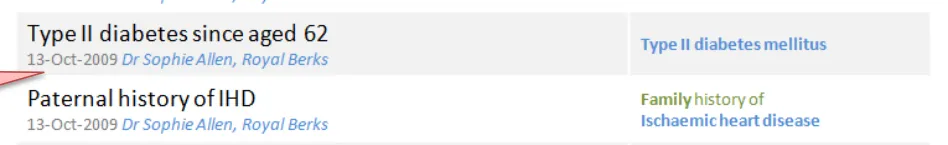

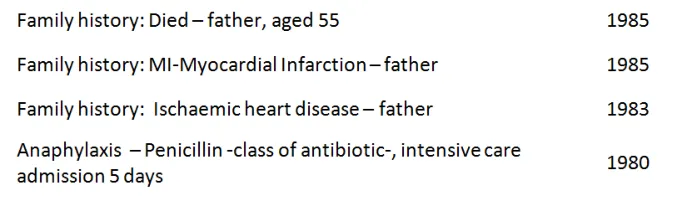

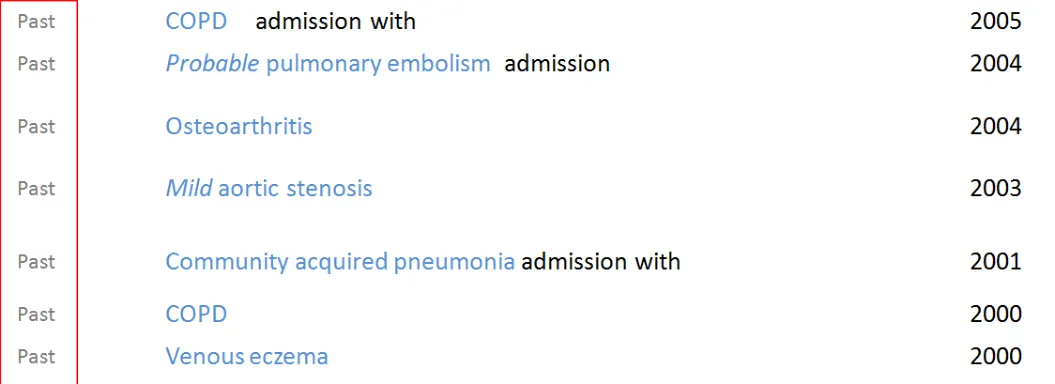

Users favoured seeing fewer repeated words from the encoding or the headings:

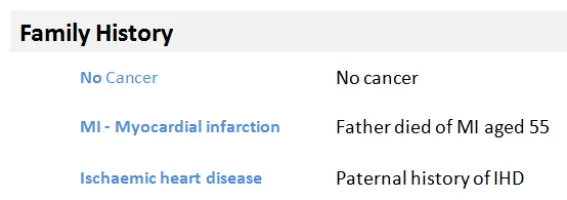

- For example, Family History did not need to be repeated where there was a clear heading

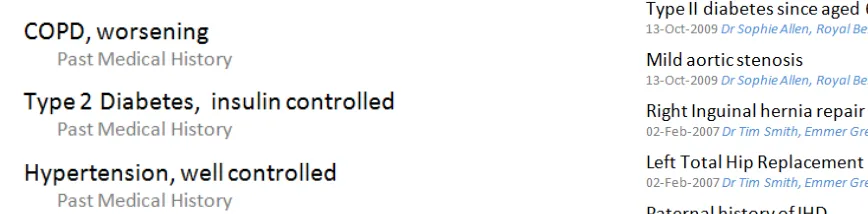

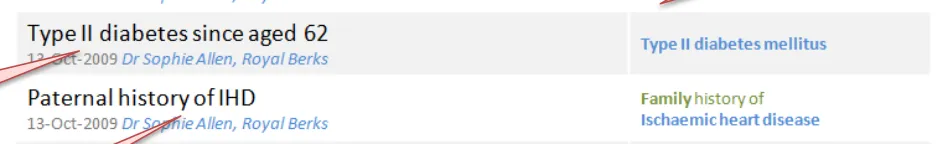

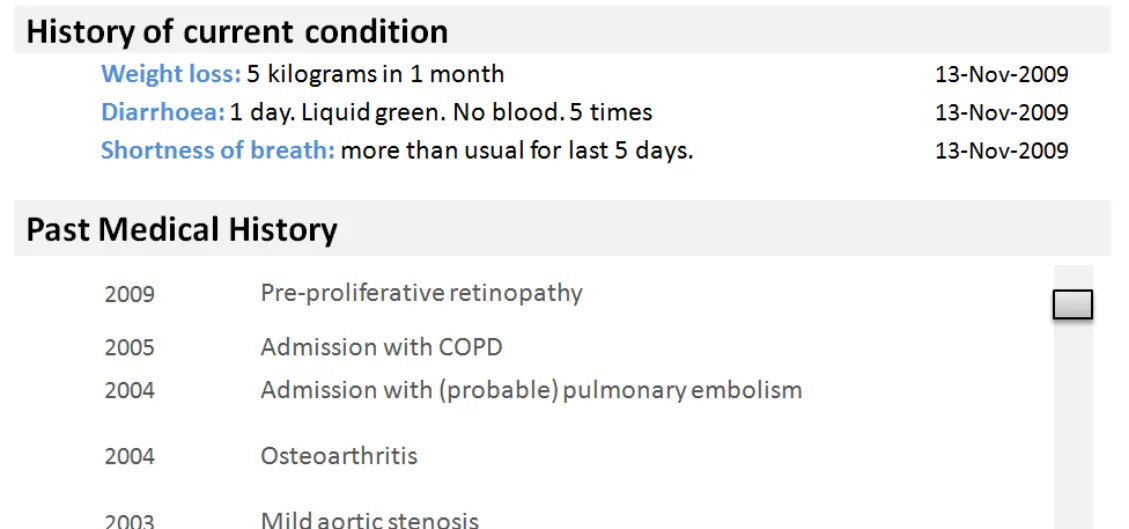

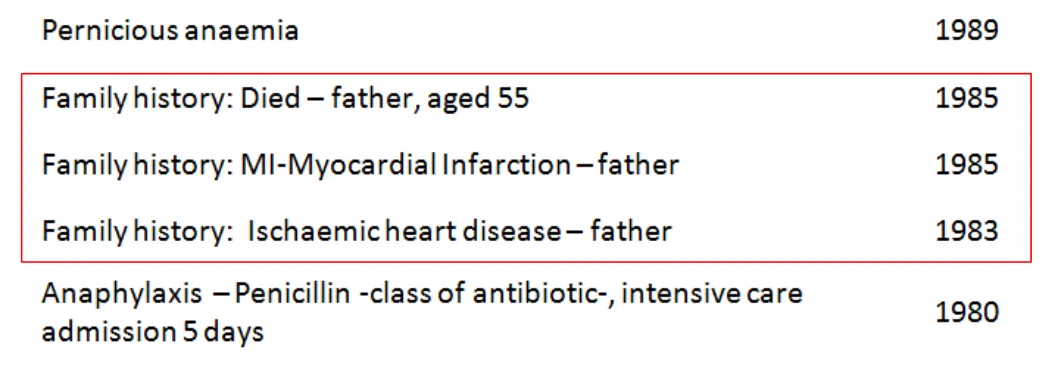

Users preferred designs which used headings to group statements of the same pattern and infer common meaning:
- For example, Family History as this enabled dropping the subject modifier in the subsequent statements

Statements – Free text and encoded clinical terms

Design exploration and findings to date 3

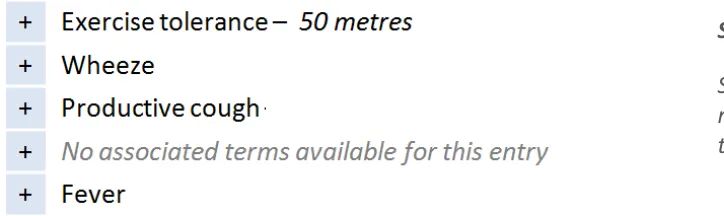

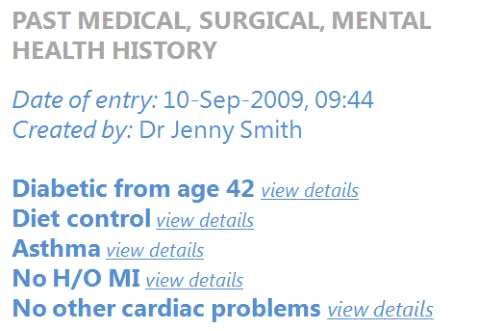

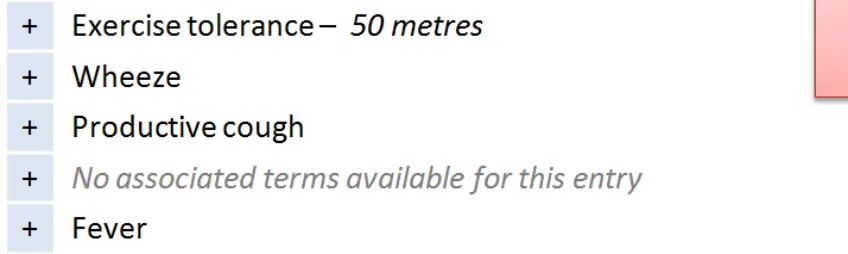

This design shows only the encoded terms in first view:

User would have to click to see the full statement including narrative text

Users gave this design a low usability score due to the due to the risk of missing critical unencoded information only recorded in the free text:

For example, decreasing tolerance to exercise

This risk was increased for unbound statements* where no clinical information was visible in the first view ( No associated terms… ) Users did express a positive use for a view showing encoded values only if used as a validation screen shown after inputting and encoding of statements (for example, by that same user)

* Unbound statements are statements that have no SNOMED CT structure associated with them, consisting only of free text entered by the clinical user

Statements – Free text and encoded clinical terms

Design exploration and findings to date 4

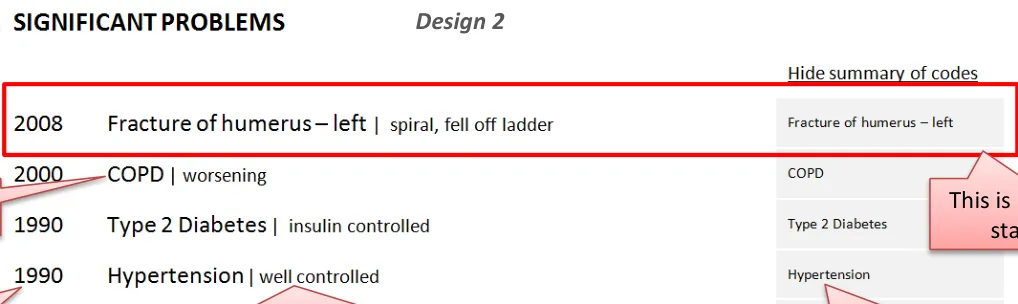

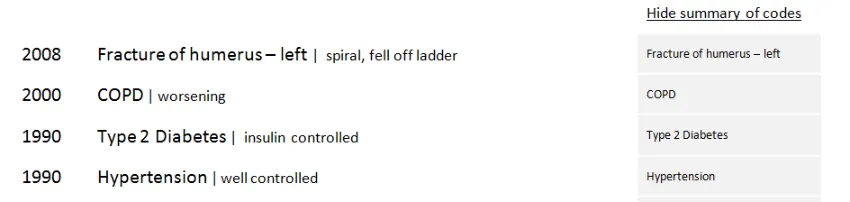

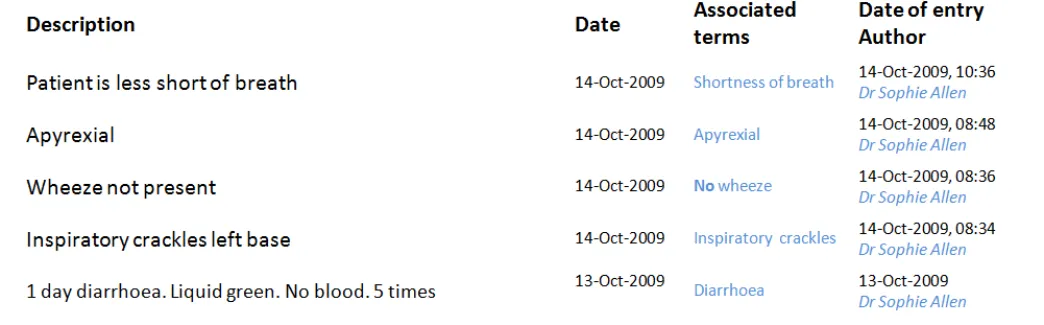

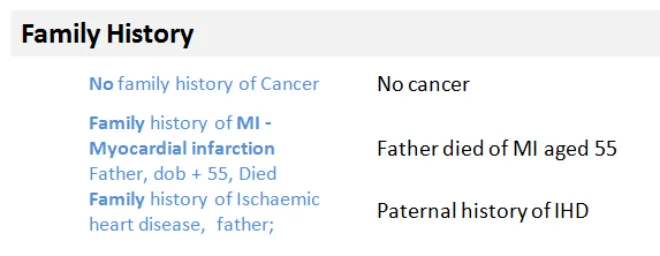

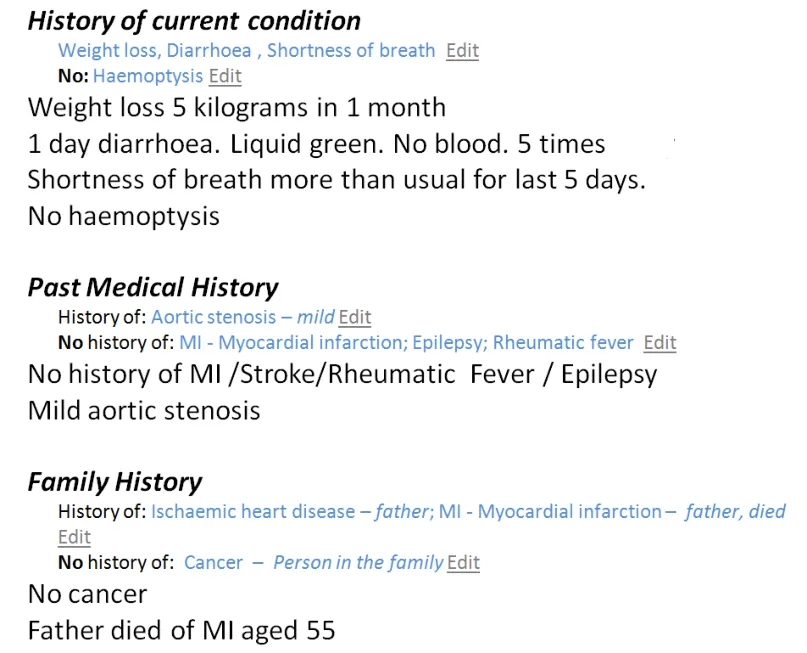

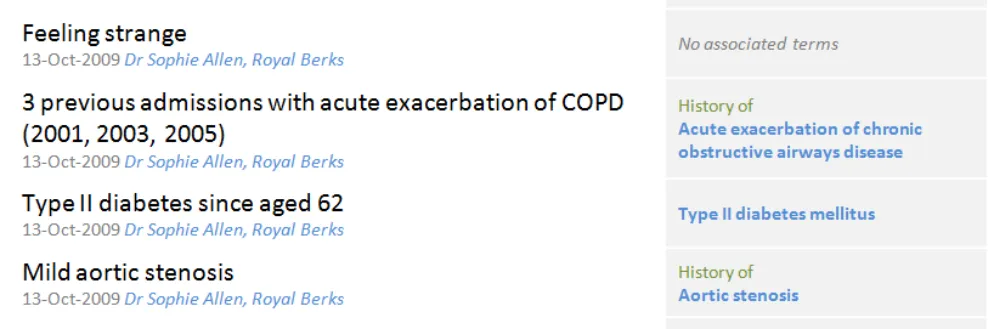

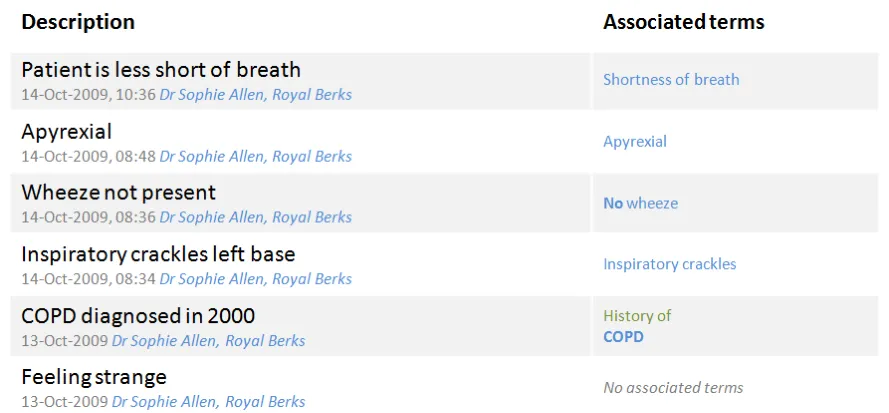

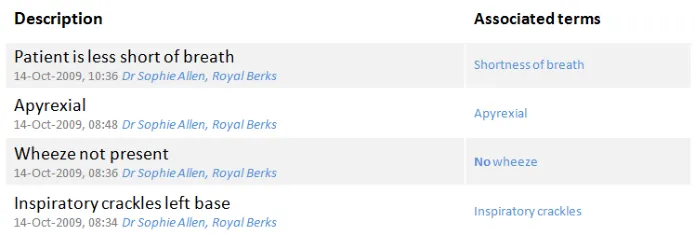

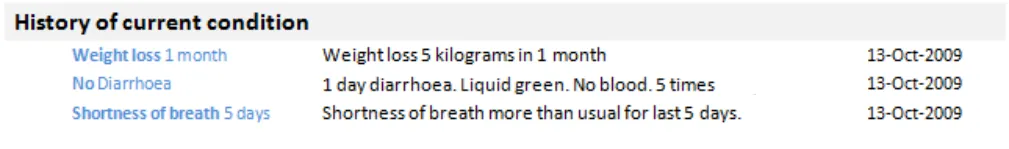

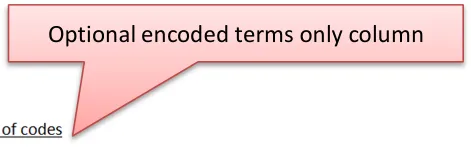

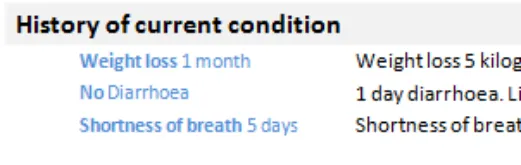

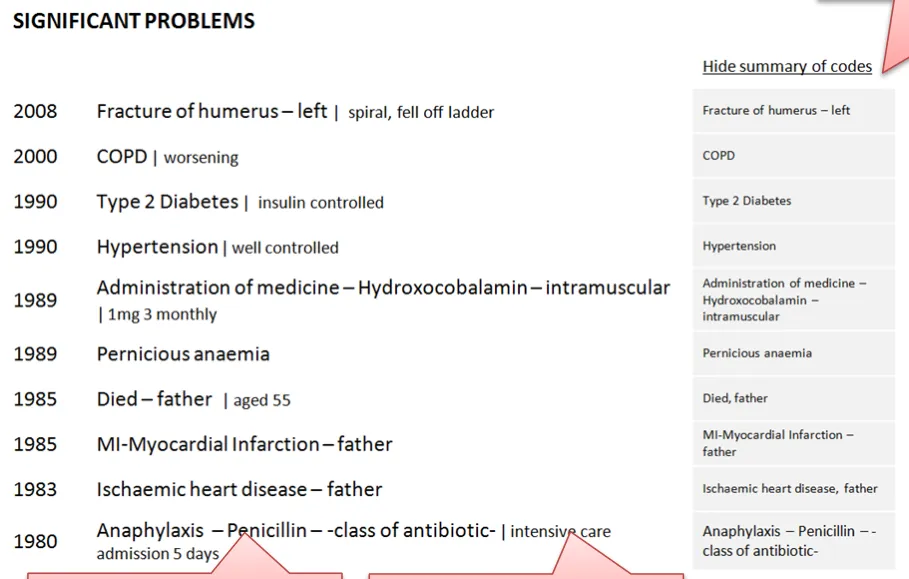

A design was tested that displayed the list of encoded terms separately from the full statements list:

 - Some users did not like reading in two places

 - One user (junior doctor) identified using it as an

aid to get quickly up to speed with a long, verbose list, for example, History of Current Condition

It is not as effective where sections characteristically contain terse content:

 - For example, History sections

Generally, people preferred to see a direct relationship and alignment between the encoded terms and the free-text (for example, on the same line)

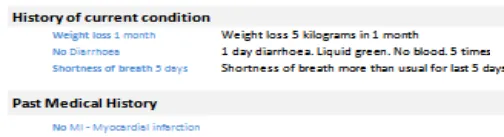

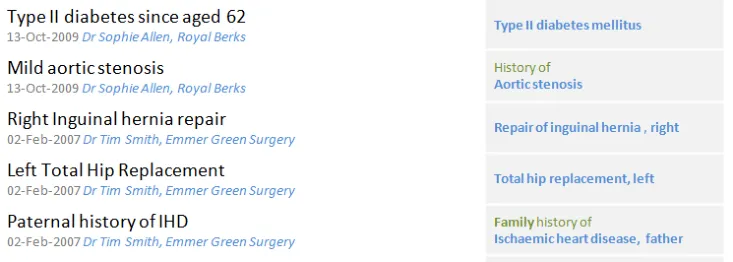

This design displays the encoded terms in a separate list that comes before the full statements

Statements – Free text and encoded clinical terms

Emerging themes	Evidence
Never show the full SNOMED CT expression at the point of care– Hide the concept identifiers, and terms for default context modifiers (for example, the subject of the record)	*DCS037:*Clinicians would not read the information. It would be at risk of being ignored completely. Unanimous clinical audience feedback that they would ignore this and move on to next screen. The numbers (SNOMED CT identifiers) don’t mean anything to the clinicians at all. Workarounds would be established and shared amongst clinicians.
An interface terminology is required to replace both individual and combination of clinical terms for concept modifiers	Users do not understand SNOMED CT clinical terms such as ‘known absent’. *DCS002:*Adds confusion for the user, different interpretations of the detail could impact on clinical decision making. An interface terminology will allow encoded terms to be presented using plain English and friendly language and never show raw encoded values to end users in care settings

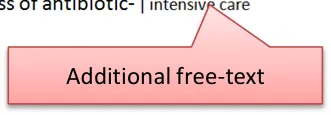

Any additional free text added by the clinician should be accessible– If not always immediately visible	Important meaning could be hidden from view because it could not be expressed using SNOMED CT. Users use free-text to deepen their understanding of the statement, and it can often contain highly relevant information that cannot be expressed through encoding For example, Father died of MI aged 55 – the age at death is crucial to understanding the clinical risk for the patient, but this would not be expressed in the SNOMED CT descriptions. *DCS110:*Key information obscured, under-represented and potential for wrong code to have been selected and qualified by the free text which could actually be the correct information.
_Future work:_What scenarios would favour showing encoded terms in isolation from free text?	Showing related entries was out of scope, but one user did present a system (In Practice Systems - Vision 3) which used codes (only) to intelligently cluster statements together in a Timeline View

Statements – Icons and graphical noting

Design exploration and findings to date 1

Bullet

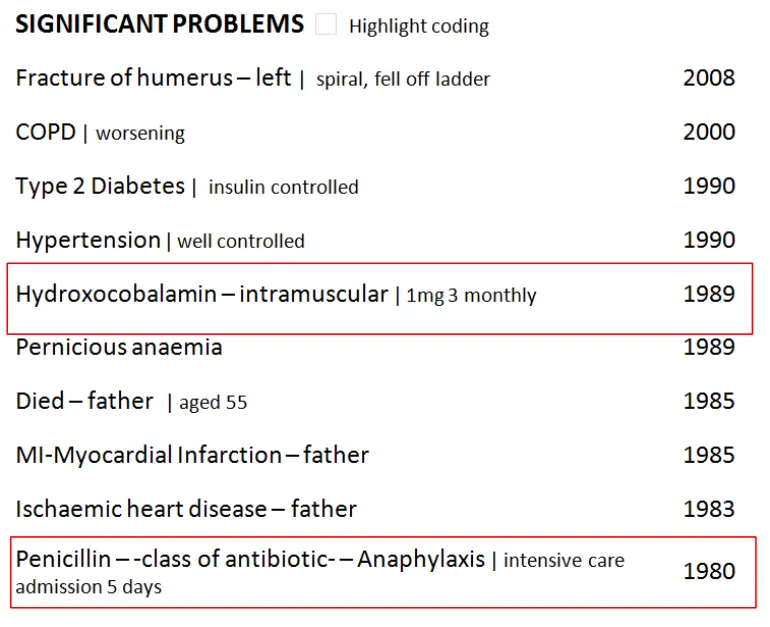

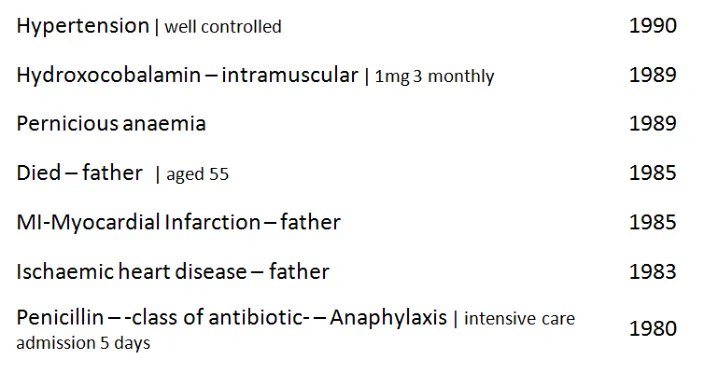

Users felt it important to use some kind of visual separator between clinical term and additional free text. Some existing systems do this. Running text and code together could create misleading statements

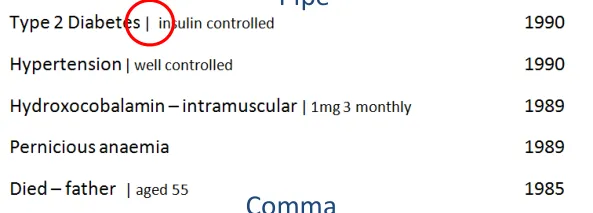

Pipes [1] were visually liked but carried risk of being misread as ‘1’

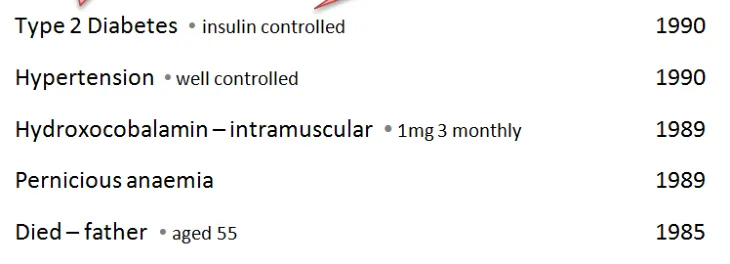

Dots also well received, but risk of being confused as a decimal point

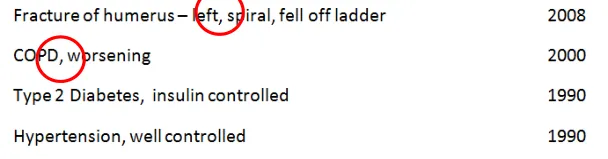

Commas initially preferred, but then discounted because of the risk of overlap with a comma used with as part of the SNOMED CT description. The same was true for hyphens

More work is needed to identify a safe separator

1 Pipe : a vertical bar separating data but indicating they are related

Users preferred to have a separating character, but all those tested carried risk, so more work required to identify a safe character

Statements – Icons and graphical noting

Design exploration and findings to date 2

Users found the pen symbol distracting and preferred not to have a graphic to indicate what was free text

Graphical noting was out of scope, however users missed having these visual short cuts, particularly when reviewing examinations and findings

Users expressed a mixed reaction to the use of an icon to indicate text – most felt it was distracting and did not like the pen symbol

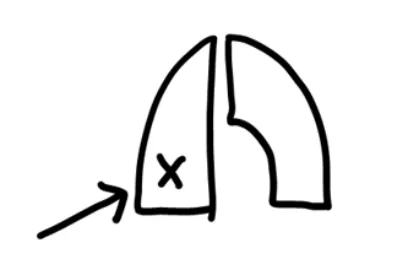

Many users did indicate a desire to see graphical noting (for example, to indicate left and right)

Statements – Icons and graphical noting

Design exploration and findings to date 3

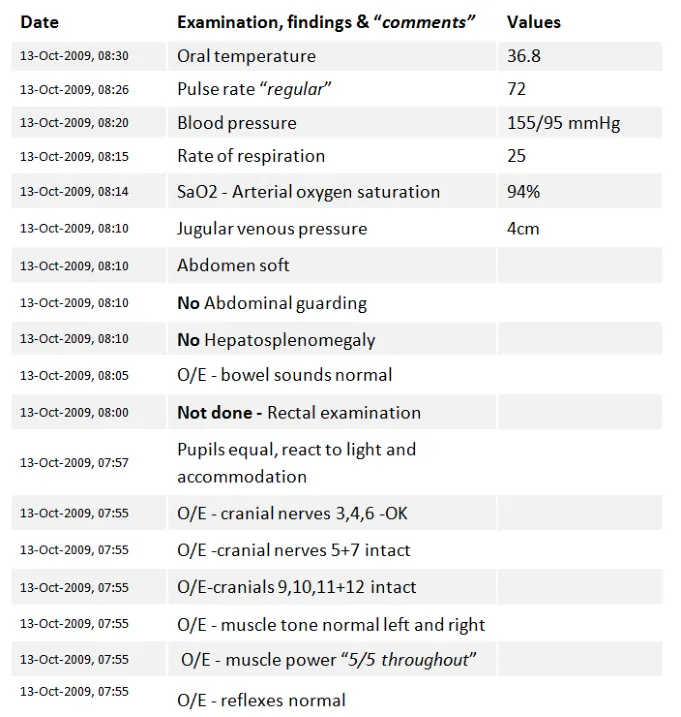

In ‘ Examinations and Findings ’, users were used to reading information very quickly

Current practice has led to a reliance on graphical noting as a shorthand

Users reported skim reading the numbers:

 - “You know what the test is because the value

falls within a certain range”

 - Users requested to have deviation flagged in

some way (for example, colour or icons)

Four of eight users wanted to see graphical noting in the display of test results statements

Statements – Icons and graphical noting

Emerging themes	Evidence
Forexaminations and findings, users findpurely text-based statements too dense to readand would like to see common graphical noting used to support the text, for example, to indicate male/female, left/right	*DCS075:No graphical display of the human body / male and female within the clinical system - laterality can be mis-read and misinterpreted, which can lead to significant problems, particularly when surgery indicated. Phone interviews:* Needs headings to make sense (for example, type of tests, CVS). Missing pictures, lots of text to get through might lead to things being missed. Hard to compare against similar results (for example, cranial nerve examination).
Graphics and icons are most effective when used as shorthand for data and not just used to indicate free-text (for example, a pencil icon) as users find this visually cluttering	Users did not like the use of icons to indicate the underlying data structure, for example, what was free text. Users expressed a desire to see graphical noting in the examinations and findings statements, as they felt that this was a more effective way to communicate test results.
_Future work:_Exploration of noting using graphics recommended, particularly for examination and findings	Users consistently mentioned that they had become reliant on processing this kind of information with the visual aids of common graphical noting techniques.
_Future work:_What is a safe character that can be used between encoded statements and free text?	Users preferred statement designs which separated encoded statements from free text. A safe character has not yet been identified, several have been discounted (pipe, comma, bullet) Note:whilst bullets were flagged as risky, they are a common device in current systems, so more work is required to identify the level of risk.

Statements – Unbound statements

Design exploration and findings to date

An unbound statement is a statement without any encoding:

 - For the phone interview, the unbound statement ‘Feeling strange’ was used because there is no exact match to a

SNOMED CT term. The subjectivity of it means it should not be altered. ‘Feeling bad’ or ‘Feeling groggy’ are for example available, as is ‘strange sensation‘

 - This was a good example as it highlighted the value of less precise, more subjective data

Users liked the flagging of no encoding

Most users (five of eight) thought ‘Feeling strange’ a significant statement as it was a valuable ‘clue’ or ‘prompt’ for the clinician. One thought it should appear first No associated terms available was widely understood:

 - One user said that _No terms available_ would be clearer as _associated_ implied values such as duration, severity

Users liked the colour and style differentiation between no terms message and an encoded term as this made it easier to spot

Statements – Unbound statements

Emerging themes	Evidence
Unencoded statements should be shown in full and never ‘hidden’ behind ‘no terms available’ messages as this carries risk that the statement could be overlooked as not important	It is not safe to assume that unbound statements are not clinically relevant *Phone interview:*Unbound statement (‘Feeling strange’) is important as it is the patient’s subjective view of themselves. Can give clues to clinician to ask other questions. Not concerned that it isn’t coded
If no encoded terms are available, this should be flaggedand not left blank. ‘No terms available’, ‘Not possible to code’, ‘No terms found’ were all good phrases	*Phone interview:*Associated terms implies other values (for example, duration, severity). Clearer to say ‘Not possible to code’, or ‘No terms found’
Consider including acall to action,‘Add encoding’, when a statement is not encoded	*Phone interview:Prefer to see ‘no associated terms’ spelt out, not just left blank. Maybe include call to action e.g. Add terms Note*: if more or all statements were unencoded it is not clear if this would still be true
_Future work:_Guidelines/policies for clinicians on when statements should be encoded, versus left unbound. Test assumptions – are any/all statements to be encoded, including all ward notes? Or just those which are “significant” – in which case, what are the rules for deciding this?	_Future work:_Guidelines/policies for clinicians on when statements should be encoded, versus left unbound. Test assumptions – are any/all statements to be encoded, including all ward notes? Or just those which are “significant” – in which case, what are the rules for deciding this?

Statements – Axis modifiers

Design exploration and findings to date

The sequence of words in the family history statements minimises risk

Word repetition is caused by the encoded text and original text showing on the same line. This led to confusion with the suggestion of a double negative

Axis modifiers require careful sequencing in order to reduce risk of misinterpretation

Negation and Family History risk misinterpretation directly due to the sequence of the words:

Cancer – known absent carries risk of being skim read as a positive statement; No cancer is therefore safer
Family history of MI is safer than MI – Family Hist ory for the same reason
Showing Family History at the start of the statement is required in a mixed pattern list
If the list is only Family History statements then users are comfortable inferring that meaning from the heading

As long as the axis modifier appeared before the clinical focus term no additional emphasis was required, greater benefit came from having an interface terminology to make it easy to understand

Designs which repeated words because both the original text and encoded statement were on the same line risked causing confusion, particularly with negative statements:

The design shown above right confused users who read the terms and the free text together and thought it was a double negative

Statements – Sequence of text

Design exploration and findings to date

In lists which show statements from different patterns, there is the risk that the user could misinterpret if default values, or some parts of statement, are hidden from view:

  - For example, there is a risk of confusing

Medication History with an Allergy to a Medication

  - In this design, both the Medication and

Allergy statements lead with the drug involved

  - This is unsafe because a user could skim

read and think that Penicillin is a current drug

The guidance should follow the published CUI guidelines and ensure that the allergy should always appear first, before the agent:

Design Guidance – Displaying Adverse Drug Reaction Risks

Hydroxocobalamin is a Medication History statement, Penicillin is an Allergy

Statements – Sequence of text

Emerging themes	Evidence
Avoid designs which could lead to showing the same negative in two places on the same line without clear visual separation (for example, a column)	*Phone Interview:The designs with the ‘no cancer’ (inFamily History*) heightened risk of confusion and time wasting. This occurred when the same data was repeated with encoded clinical statement and original text shown on the same line. This is the only situation in which this conclusion stands
A negative statement should not lead with the clinical term. Negative statements should try to place the ‘no’ or ‘no history of’ before the key clinical term.	The risk is that if it does not appear before the clinical term, users will skim down a list and just read the first word (for example, ‘Cancer – no history of’ is not acceptable because the user may only see the first word of the statement). There are some statements into which the negative term for example, (no, not, no history of) cannot be easily inserted. An example of this is: O/E – oedema – absent *Future work:The ideal solution would be to identify any common statement wordings such as ‘on examination’ and create rules to insert the negation in the correct place in the sequence. For example: On examination – no oedema* No oedema on examination
Family history should always be shown in front of the statement in a mixed pattern setting	The risk is that users will skim down a list and just read the first word (for example, ‘MI – family history’)

Design exploration and findings to date

Users were confused by these family history statements and could not tell if they were linked and therefore significant

Demonstrating a user interface for linked statements was out of scope. However, there was a consistent demand and need to see these relationships represented in all of the user sessions

Failing to visually link related statements to make their connection obvious to the user was raised as a significant risk in interpreting the data correctly:

 - In the design above it was unclear that the father’s death was caused by IHD, which could **lead to misinterpretation** or distrust

18 December 2009

Slide 31

Emerging themes	Evidence
Users more used to working from paper-based lists may find time-based lists harder to process	Users interviewed struggled to make sense of time-based lists, particularly when statements from different patterns were shown mixed together Tools that allow date reordering and intelligent grouping (for example, by condition or clinical priority) would assist in this area (seeFuture work).
In lists where statements from multiple patterns are shown together, context needs to be made explicit through the user interface.	For example, when presenting Family History statements this needs to be clearly marked before the statement. Hiding default values cannot be used in the same manner as in a single pattern setting or one where there is a very clear hierarchy and the context can be inferred from the heading.
_Future work:_is required to test interfaces which allow users to group and view links between related statements	Users found it harder to process the clinical story without seeing relationships between statements from different parts of the record. The relationships could be by a condition or even just the type of statement (for example, Family History, Past Medical History).

THEME 2 – PEOPLE, DATES AND HEADINGS

Introduction to people, dates and headings Dates and times People Visual hierarchy and headings

Introduction to people, dates and headings

This section looks at the parts of a statement other than SNOMED CT terms and free text. These elements aid users’ comprehension. Their relative importance in the display is driven by the scenario. This section includes:

People, dates and times, including the risk of confusion over what role the person has had, session versus observation dates and formatting of dates
Using headings to group statements with common attributes to remove both repetition and redundant attributes from each statement
The risks associated with scrolling, particularly when headings represent common attributes
The appropriate visual structure for each of the tested clinical scenarios

People, dates and headings

Design exploration and findings to date

Confusion over session time versus observation time was common. Users were confused by multiple columns of dates that presented both on screen:

 - _**Session time**_ _,_ the period when the clinical encounter occurred and the records were created

 - _**Observation time**_ _,_ the time the observation was made, or the clinically relevant time

 - They are both Intervals, so they can have a start and end time

Confusion with people, particularly over author versus care provider was also common:

 - General assumption that, in the scenarios shown, the care provider was also the author

Dates and people information increases in importance and value in certain situations:

 - When editing something

 - In fast-paced environments where many people are seeing the patient

 - When something goes wrong (there are legalities around the exact time something happened or was recorded)

Users did not expect to see it in a primary or default view, particularly for history statements

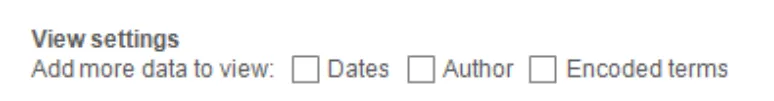

Users like to have dates and people as something they can display as required

The scenarios tested influenced the user’s need to see date/author for every individual statement:

 - In an admissions clerking scenario, users were “irritated” by date/people information being repeated for every statement

 - In these scenarios, the preference was to have the date/people information available at a higher (composition) level

 - In views where statements have come from more than one session or composition, so that there are multiple people and dates,

the need to show this information at statement level increases

People, dates and headings – Dates and times

Design exploration and findings to date 1

Multiple dates per statement were confusing.

Users did favour having a less granular display for older items. Entries from yesterday (13 October) do not show the time, compared to those from today (14 October) which do.

Clinicians need to have access to both session time/date and observation time:

   - They do not expect to see both on the screen at the same time and displaying multiple dates in the same view (as above)

caused confusion, even with labelling

Optimum format of date and time varies depending on situation:

   - The exact times (observation and session) are more critical the faster paced environment you are in (for example, an acute

admissions unit where minutes are significant)

   - Users favoured designs that had different date formats for more recent entries (for example, down to the minute, versus

just day or month level reporting for older items)

   - Appropriate date granularity will vary; the important point is that the system should reflect the accuracy of the date as

captured, in line with existing CUI guidance:

      - _[Design Guidance – Date Display](http://www.mscui.net/DesignGuide/DateDisplay.aspx)_

      - _[Design Guidance – Time Display](http://www.mscui.net/DesignGuide/TimeDisplay.aspx)_

People, dates and headings – Dates and times

Design exploration and findings to date 2

Position of the date field affected readability of the list:

    - Users preferred designs where the date appeared to the left of the statement

    - This was particularly important for historical items (and helped differentiate items in the past from current conditions,

as in the design above)

People, dates and headings – Dates and times

Design exploration and findings to date 3

Extracting the word ‘Past’ from the pattern name (Past Medical History) caused confusion about whether a condition might still be ongoing

Users struggled to construct a full story over time from a single date or time heading

Using a label of ‘Past’ for the pattern Past Medical History caused misinterpretation:

  - Users thought this meant that a problem no longer existed and was either cured or not active

  - Although statements are shown under Past Medical History the condition itself may still be current or an ongoing problem

Users were not sure whether something was still a problem and over what time period:

  - A timeline based view of statements is one way this could be addressed and needs further investigation

  - Further work is also advised on how to represent duration or end dates through text

People, dates and headings – Dates and times

Design exploration and findings to date 4

This search engine style design was popular with users wanting to scan a historical set of statements

In the phone-based assessment, users preferred search-engine style interfaces:

  - This design showed multiple attributes flowing together on a subsidiary line (for example, date, time, person and location)

  - Clinical terms are displayed as ‘keywords’ that pull out the key information associated with that statement (mimicking social

sites where keywords or ‘tags’ are shown alongside articles)

In a later risk assessment, users preferred not to see time/author information at a statement level:

  - More work is recommended on this type of design, specifically if it is an effective way of handling multiple session/pattern lists

which makes economical use of screen real estate

People, dates and headings – Dates and times

Emerging themes	Evidence
Attributes of the clinical statement, including dates and times and peopleare information that users expect to see when editing or changing a statement	*Phone interviews:*Date/author information important in edit mode, acts as an audit trail
Dates and times and people information does not need to be in primary viewbut should be easily accessible for any statement (for example, in a more detailed view)	Users do not want to see this data by default, but recognise that they may need it in certain situations (for example, to check information or if there is a problem)
Dates, times and people informationshould be shown somewhere in the interface at a composition level, but interfaces should avoid unnecessary repetition at the statement level	For example, users do not want to see repetition of when the same user has entered multiple statements in the same session as this is visually cluttering
Date formats can be flexiblebased on situation, but as a minimum shouldideally include month and year, if both are available	*DCS096:Could associate problems incorrectly as occurred within the same year and month. Clinician could wrongly assume that treatment has ended or the problem is no longer occurring. For example, history of medication – need to know that something was given in the past but didn’t work Phone interviews:*Having less precise dates in first view for older statements might help with decluttering of the screen display
_Future work:_How well do search-engine style results work (where metadata such as author and time appear after the statement)?	This tested well on the phone interviews but less well in the last assessment so more work is required to validate the risks or legibility of this design approach. It is worthy of investigation because it is a flexible orientation that is less likely to force truncation of the statement because it can fit in a narrower width

People, dates and headings – Dates and times

Emerging themes	Evidence
Date formats can be flexiblebased on situation and what is available and should reflect to the level of accuracy or confidence at capture and no more	The level of date and time granularity required is variable, so for fast paced clinical environments such as acute admissions, users expect to see hours and minutes For past statements (for example, Past Medical History), users would like to see month and year, if available. However, year alone may only be available for depending on patients’ recall, so the most important point is that the date information needs to be clear on the accuracy and if it is approximated *DCS096:Could associate problems incorrectly as within the same year and also a month. Clinician could wrongly assume that treatment has ended or the problem is no longer occurring. For example, history of medication – need to know that something was given in the past but didn’t work Phone interviews:*Dates are clearer, having less precise dates in first view for older statements might help with de-cluttering of the screen display
If dates and time data is uncertain (for example, estimated) this should be indicated	Users in the third risk assessment flagged the need to know if a date was approximate as spurious accuracy should also be avoided. Reference existing CUI guidance: _Design Guidance – Date Display _ _Design Guidance – Time Display _

Emerging themes

Evidence

Date formats can be flexiblebased on situation and
what is available and should reflect to the level of
accuracy or confidence at capture and no more

The level of date and time granularity required is variable, so for fast paced
clinical environments such as acute admissions, users expect to see hours
and minutes
For past statements (for example, Past Medical History), users would like to
see month and year, if available. However, year alone may only be available
for depending on patients’ recall, so the most important point is that the
date information needs to be clear on the accuracy and if it is approximated
DCS096:Could associate problems incorrectly as within the same year and
also a month. Clinician could wrongly assume that treatment has ended or
the problem is no longer occurring. For example, history of medication –
need to know that something was given in the past but didn’t work
**Phone interviews:**Dates are clearer, having less precise dates in first view for
older statements might help with de-cluttering of the screen display

If dates and time data is uncertain (for example,
estimated) this should be indicated

Users in the third risk assessment flagged the need to know if a date was
approximate as spurious accuracy should also be avoided.
Reference existing CUI guidance:
_Design Guidance – Date Display _
_Design Guidance – Time Display _

People, dates and headings – Dates and times

Emerging themes	Evidence
Users find it easier when dates appear in the first column (left hand)in tabular designs	Users found this arrangement easier to read than designs where the dates appeared on the right hand side
Avoid using generic temporal values (such as ‘Past’) as labels. Full headings are safer (for example, ‘Past Medical History’)	Using the word ‘Past’ might carry an inference that a condition was no longer relevant or active
_Future work:_More work required on how users expect to view and interact with session times versus observation time	*DCS112:Clinicians may be confused as to what the date relates to. Is this date of recording or date of the clinical problem occurring? DCS042:*Very confusing as to what the date is referring to – it could be data entry date, referring to the procedure and/or date and time of results. Feedback was that date and time of data entry in the notes is not that critical most of the time. It is felt to be more important to have date referring to a procedure, result or other specific clinical information
_Future work:_What is the best way to show duration through text and timeline views? (out of scope for this Deliverable)	*All sessions:*Users find it difficult to build the story over time with just the date of occurrence or date of entry

People, dates and headings – People

Design exploration and findings to date

Users want access to the data about people associated with an entry (for example, the author or responsible clinician) but do not expect it to appear on every entry in the default view:

  - Having information about people in the default view

created additional clutter which made lists of statements harder to read

Role and location were other fields that users would like to have accessible

Users thought querying by role would be useful (for example, a view where you could click on their name and see all statements associated with them)

It should be made clear whether the name displayed is the author of the entry or the responsible clinician

Users did not expect to see information about people by default (as seen above) but would want to be able to access it or add it into their view.

People, dates and headings – People

Emerging themes	Evidence
When a user is editing or changing a statement,the people, creation and last modified date time should be shown	*Phone interviews: “*Important to see date and author information at this point” (user talking about editing a statement)
Dates, times and people only need to be presented once per session	Users do not want to see repeated information at a session level
Where statements from multiple sessions are presented in the same view, people, date and time information should be easily accessible per statement, but need not be visible	Users need to have this information, but do not necessarily expect to see it immediately, even when statements are shown from different sessions. The user interface could offer different view levels or the option to add data fields into a view to allow the user control over this. It is not mandatory to appear in a default list view. (For example, a user could ask to see this by changing a view level or adding to their view) *DCS095:* Screen noise and clutter but unnecessary information, time wasting for the clinician away from the patient. This is overkill and what does it mean as this could be the responsible clinician, the person who entered the code or a clerk. Associating the name, role (then) and location with the text has some useful significance but need not to be displayed by default. There are appropriate areas within a record where this would be more useful in fast-paced, complex, ever-changing environment
_Future work:_What are the best interface devices to present access or labelling of the author/clinician information?	_Future work:_What are the best interface devices to present access or labelling of the author/clinician information?

People, dates and headings – Visual hierarchy and headings

Design exploration and findings to date 1

Users were able to deduce the meaning of the statements implied by the headings:

    - For example, Family History statements were

correctly identified in the design above left

    - This was reliant on the headings being well

defined and clearly visually associated with the statements

Where headings were clear, users preferred not to see the heading repeated with the statements

In this design above, users used the headings to deduce the meaning of the statements

This design (right) was not preferred as it was harder to read and more cluttered from repeating the contextual label (family history)

People, dates and headings – Visual hierarchy and headings

Design exploration and findings to date 2

Scenario one showed all the statements from one session - so all at the same time by the same person:

  - Here there is a clear desire from users to have them grouped

  - All statements of the same pattern pulled under one heading

  - This allows all the common attributes of the pattern to be in

embedded in the heading

  - This approach is liked by users because it makes economical

use of the space by reducing the need to repeat information at the statement level

Using a header is an effective way of showing common information

Users liked these type of designs because the strong hierarchy made them easier to read:

Use of headings and sub headings to group similar statements together
Users liked to see colour and font differentiation between headings and statements
Indenting the statements under the headings improved comprehension and mirrors paper based note taking

Line spacing aids reading flow:

Close vertical line spacing shown here aided readability too – users could read the blocks of text ‘as a story’

Users found designs with a clear hierarchy easier to use, possible because they closely match paper systems

People, dates and headings – Visual hierarchy and headings

Design exploration and findings to date 3

This design positioned the pattern name after the clinical terms, user found this hard to read and there was a risk of wrongly associating the pattern name with the next statement

Positioning the pattern name after or away (separate column) from the focus clinical terms was confusing to users and risked being overlooked or misread

These designs both addressed scenario two (multiple pattern, multiple sessions), with different authors, times, dates:

This presented more challenges as users needed to see more of the contextual information at the statement level
Several designs were tested, including columnar designs and search-engine style, where information is displayed below the statement (top right)

Position of the contextual information (for example, pattern name) is key to user’s understanding:

A clear theme was that the pattern names for example, Family History, are important to keep with the statement
This information needs to be positioned so as not to be missed or ignored – ideally before the clinical terms
Placing it after the clinical term, or in a separate column, risked confusion or being overlooked
Users expected to read this first as it was key part of understanding the statement
Line spacing is important between statements to avoid the user incorrectly associating heading with statement when the heading appears after the statement. A mitigation here would be use of a background banding

People, dates and headings – Visual hierarchy and headings

Design exploration and findings to date 4

Main design risk here is if the heading is carrying important axis modifiers, and scrolls out of view, the user loses important contextual information:

  - For example, the person it applies to

(subject of record)

Users were not keen to have to scroll to different parts of the record:

  - For example, the user might expect surgical

history to be part of the PMH so would not necessarily scroll down to find it in another section

  - Risk that clinician is not focusing on the

scroll bar but is focusing on reading the data and may miss the scroll bar.

There could be an assumption that the information lower down is less interesting and less of a priority

People, dates and headings – Visual hierarchy and headings

Emerging themes – 1 of 3

Emerging themes	Evidence
Users want and need the interface to intelligently derive contextual labels from statement data and metadata and to use this to build a visual information hierarchy	Two sources of information were identified as sources from which headings or contextual labels could be derived: Pattern names (Past Medical History) Common context wrapper attributes (that is, all the records where the subject is not the patient) can be presented with a Family History heading Users preferred designs which assimilated statements into a hierarchical container using this information.
Users prefer to haveany common attributes, where they exist, extracted from the individual statement and placed into the heading	Users had a clear preference for designs which made effective use of hierarchy and screen space to reduce unnecessary repetition (for example, dates and times, pattern names)
Users find hierarchical designs with clear headings easier to read	Users prefer designs that use font size and colour to provide a visual differentiation between heading and statement Indentation is a good device to help reinforce association between contextual headings such as the pattern name and lists of statement Effective line spacing, which keeps related items in close vertical proximity, aids readability and the user’s understanding of what is related
Users prefer no repetition of words between the original free text and clinical terms	Repetition reduces the users ability to read the statements Risk can be present when the interface presents the clinical terms and the original entered text together on the same line This risk is increased where with negative statements (no history of) because this can then be read as a double negative, which causes confusion

18 December 2009 Slide 49

People, dates and headings – Visual hierarchy and headings

Emerging themes – 2 of 3

Emerging themes	Evidence
Position of the contextual information (for example, pattern name) is key to users’ understanding	In multiple pattern, multiple session lists, users expect contextual information to precede the clinical focus terms. Designs which showed contextual information after or separate from the clinical content were confusing and risky because the context could be overlooked or wrongly associated with the next statement in the list Users process statements by understanding the context first (for example, Family History) and then reading the statement. Designs which supported that processing flow were preferred Context can be derived from a number of data points (for example, the pattern name) or derived from SNOMED CT (for example, inferring family history where the subject of record is not the patient)
Designs that span multiple lines per statement should use background banding or very clear paragraph spacing to ensure the lines are kept together and clear to the user	The search-engine style designs which position author and time information below the clinical terms were shown with and without background banding and were marginally preferred with. The recommendation would be to use this because of the risk of misalignment and misassociation if the interface white space design was not carefully constructed. This was highlighted in the tests where pattern names appeared after the clinical terms: the risk of misassociation was picked up by the users
Users are comfortable usingheadings to infer meaning and context about statements (for example, Family History)	Headings reduce the amount of repetition needed for each individual statement This also assumes that the visual style of the heading is sufficiently different (size, colour, font) from the statements style to allow the inference to be made
Usersprefer designs that avoid word repetition	A number of different designs were tested, those which combined free text and SNOMED CT (and did not repeat the codes) were more favourable Effective use of headings led to less repetition (for example, showing the pattern headings with every statement)

People, dates and headings – Visual hierarchy and headings

Emerging themes – 3 of 3

Emerging themes	Evidence
Using the headings to carry important contextual information increases the importance of having them visible on screen at all times (for example, when a long list is being scrolled)	Users preferred to have headings carry common attributes or pattern information to reduce repetition for each statement. However they also realised that this meant that the heading needed to be visible on screen at all time to ensure that a statement could not be taken out of context. For example, a family history statement could be wrongly associated to the patient if the family history heading was not visible.
_Future work:_Do all users find it harder to construct a care story using statements from multiple sessions and multiple patterns? What can be done with different views (for example, timeline) to help with this?	Some of the users consulted found pure time-based views harder to process, particularly when compared with single session designs with a strong heading design. More work needed on what other content above a single time and date are needed to effectively construct the story
_Future work:_How do users navigate through records with many entries	Users did not like long scrolling screens, so more work is required on the most effective way to show a summary of the record and allow the user to navigate to the statement sets within each heading More work needed on risks, especially with long lists where heading could scroll out of view
_Future work:_Which usage scenarios support showing SNOMED CT only in a separate list from the full, verbose statement	Scenarios that suggest this could be useful are: • Overview of history of current condition • In validation whilst statement coding • As a navigation to a collection of related statements

THEME 3 – VISUAL DESIGN

Introduction to Visual Design Formatting of statements Tables and columns

Introduction to Visual design

This section looks at the visual representation of a statement and investigates which designs are safest and easiest to read:

Users’ preferences for the presentation of free text and encoded terms
Designs that help to indicate a visual structure, such as the presentation of headings
Use of icons and graphics
Using tables and columns to provide structure

Visual Design – Formatting of statements

Design exploration and findings to date 1

There was a preference to have visual differentiation between encoded statements and free text . Most felt it would be too flat and dense if all the same:

For example, use colour and size

Users liked indenting statements below headings, good sense of hierarchy and connection between statement and title:

This also mirrors clinicians’ note taking on paper, so feels more familiar to users

No real strong winner on banding, some like background shading, others said it did not add that much

Differentiate with colour and font size

Indentation was liked

No strong preference for banding

Visual Design – Formatting of statements

Design exploration and findings to date 2

Showing encoded terms in bold encouraged skim reading which could lead to information being overlooked

Users were confused by the use of inline italics to denote encoded attributes

Inline formatting was distracting and made no difference to comprehension

Users found it easier to read encoded statements rendered as plain text with no formatting

Inline formatting increased the risk of skim reading, leading to users overlooking important (unencoded) words

Visual Design – Formatting of statements

Design exploration and findings to date 3

In this design, users can opt to highlight the encoded terms if required

Users did not see a clear need to frequently augment the visual display of the encoded clinical terms:

  - For example, through highlighting with colour

However, where the user is performing encoding validation, a design where highlighting could be switched on or off was liked

Visual Design – Formatting of statements

Design exploration and findings to date 4

In this design, the encoded terms and additional free-text are assembled to form a statement with no inline repetition – this was liked

An additional column can be requested by the users to see the encoded terms separated out – this was thought useful for data validation scenarios

This design was effective at combining encoded terms and additional free text in a way that supported readability and reduced unnecessary repetition:

The ability to add into view an ‘encoded terms only’ column was liked as it was easy to scan and to see where encoded clinical terms were missing
Providing a visual differentiation through font size between encoded terms and free text was liked
In this design the background cell colour and key lines helped link the encoded clinical terms with the statements

Visual Design – Formatting of statements

Design exploration and findings to date 5

Both of these designs were liked by users – easy to read as a statement but also easy to see what was an encoded clinical terms and additional free-text. The difference between them is the separating character (a pipe or a dot)

Designs were preferred which differentiated encoded clinical terms from user entered additional free-text

Font size was the best way of doing this without disrupting reading flow

A separating character was preferred, but a risk-free character has not been identified

Visual Design – Formatting of statements

Emerging themes	Evidence
Minimise inline formatting, such as bold or italics	Users find it harder to read and comprehend statements with inline formatting
Users like to be in control of highlighting or picking out the encoded clinical terms (for example, through highlighting or adding an additional column)	Users do not see a clear need to know which are encoded clinical terms, so having a control to allow them to highlight or separate them out (for example, in a separate column) is more likely to meet user need. Specific scenarios, such as data validation after data input or checking data, would lend themselves to this kind of control
Font size is an effective and non- disruptive differentiator between encoded clinical terms and free-text	Users were favourable towards designs that used a subtle difference in point size between encoded clinical terms and additional free-text The point size difference should not prevent users from scanning both types of data in a single statement. Size difference is not prescriptive, based on the designs tested, a gap of around 4 points created enough differentiation but avoided acute visual disruption
Banding helps users scanning in tabular designs and reduces risk in multiple-line statement designs	*Phone interviews:* Slight preference with the banding *Third risk assessment:*A stronger preference emerged because of the risk of wrongly attributing a pattern name if the line spacing was not clearly designed, or even just equidistant between all statements.
_Future work:_Separator characters are thought to be a useful device, but more work is required on what is a safe device and the exact representation of numerical data in an encoded statement	*Third risk assessment:*Users felt that all the characters used could be confused with numerical readings However, this needs more validation as the examples shown had numerical data incorrectly displayed as free-text where there would actually be encoded values, so this risk may not be true

Visual Design – Tables and columns

Design exploration and findings to date 1

Examples of compound columns. Multiple data fields are positioned in close proximity to make best use of space (for example, date, time, author and location): good for multi-pattern, multi-session based lists (scenario two)

Two columns appeared to be the optimum number that users liked to read:

 - More than two columns scored lower as ‘busy’

 - Fewer columns enabled a wider content column where the main statement text would not wrap or truncate, which users

preferred. They wanted to have as much room as possible for the most important content: the clinical terms and free-text

Compound columns are a useful device to present multiple data fields in small space

Compound columns are effective for multi-pattern, multi-session type lists with more fields of contextual information at the statement level:

 - For scenario one, simple columns were sufficient to show the amount of data required because headings could be used to

group related statements, and the date and author information could be presented once at the composition level

 - Some users were comfortable processing multiple fields in the same column, but this feedback was inconsistent and in the

last session users found this type of design visually cluttered

Visual Design – Tables and columns

Design exploration and findings to date 2

Clinical statements that contained observable entities and values – examinations and findings

were tested. Users were familiar with processing information very quickly with very little need to actually read the full statement

Unanimous preference for columns here:

 - Users found it easier to scan down the test values

because they were not merged in with the test description

 - Skim reading the numbers (you know what the test is

because the value falls within a certain range)

Users wanted to see similar tests grouped together:

 - For example, all the abdominal tests, CVS, and so on

Users preferred values in columns, and would have liked to see headings to group similar tests as this would be easier to read

Visual Design – Tables and columns

Emerging themes	Evidence
A list of clinical statements containing multiple observable entities and values should be presented in table format	The user testing materials presented a set of examinations and findings *Phone interviews:*All users picked the tabular format as their preferred design, because it was easier to scan the values Users also wanted to see headings that grouped similar tests together: they found the flat list presentation harder to read
Compound columns are acceptable for situations where there is a lot of contextual data to present at the statement level	Compound columns are most useful for handling scenario two (multi-pattern, multi-session) where many fields of contextual information needs to be shown with every statement, such as date, author, location For scenario one, simple columns were sufficient to show the amount of data required because headings could be used to group related statements, and the date and author information could be presented once at the composition level Some users were comfortable processing multiple fields in the same column, but in the last user testing session users complained of clutter that was visually disruptive
Designs should look to maximise the width of the column containing the statement and should avoid more than two columns	*Phone interviews:*The statement needs to have as much space (for example, the column width) as possible Fewer columns preferred as more columns add complexity to view. More spread out because there are less columns which means more space available for the statement text Users found more than two columns harder to read
General dislike of designs with perceived repetition	Designs that amplified repetition included aligning clinical terms and the full free-text statements vertically – this was only true when the designs did not de-dupe the clinical terms from the full statement
_Future work:_Test effectiveness of having date and author line below the statement	*Phone interviews:*“Because you can then scan all the important information in one pass down the left, only moving over to the right column with the encoded terms if you needed to” Preferences around displaying encoded terms in separate columns because they are easy to scan and ignore if necessary but, as discussed before, could be good as a validation tool

THEME 4 – TASKS

Introduction to tasks Task-based design Spotting mistakes Editing View controls

Introduction to tasks

This section looks at how the design may need to change depending on the task being performed Some tasks may lend themselves to different designs, for example, a clinician:

In acute care who needs to understand the immediate problems of a patient
Reviewing a patient’s past history collated from multiple sources
Reviewing a set of examination results
Who has seen a mistake in the encoded terms and wants to change it
Who is validating the encoded terms for statements they have created

Spotting mistakes in the encoding

Accessing an editable view

Tasks – Task-based design

This outlines some of the key differences in users needs and goals for these scenarios. This matrix could be used for future work to examine design requirements on a more detailed scenario basis

Scenario	User goals	Patterns
You arevalidating encodingfor statements you have created	• To see the encoding that has been applied in an easy to scan format • To see where encoding is missing or wrong • To ensure that the encoding matches what my understanding is	• All
You are in anacute care situation and need to understand the immediate problems with a patient	• Need to construct the story, what happened and when • Who else has seen the patient? • Every detail is important (for example, severity, relativity, time)	• History of current condition • Presenting complaint
You are reviewing a patient’spast history that has been collected from multiple sources	• To see a summarised list of key events that have happened within their family • Dates/age can be significant because they are risk indicators • Understand which genetic findings are significant because they are a high risk for the patient	• All
You have treated the patient before and arealready awareofexisting conditions	• Be able to see new and/or changed items	• All
You are reviewing a set of examination results	• Be able to compare results around the same body site or type (for example, all CVS, abdomen) • Have abnormalities and/or deviations clearly flagged • See normal readings • See where data has not been received yet and the status	• Examinations and findings

Tasks – Task-based design

Different design goals and risks:

Scenario	Considerations	Risks
You arevalidating encodingfor statementsyou have created	• OK to see ‘stacked’ designs where the clinical terms are repeated below the statement • Viewing all controls is useful here, as well as individual toggles if you just need to tweak it • Column designs overall preferred for this	• Consider who the users of this will be: could be clinical user (Senior Doctor) or administrator (people trained to encode) • How is the individual being ‘measured’ (for example, accuracy, number of terms, do certain conditions score ‘more points’?)
You are in anacute care situation and need to understand the immediate problems with a patient	• ‘Acute’ situation where it is important to know as much as possible of the verbose text as part of working out what is wrong and what to do next	• Skim reading/highlighting key terms in this situation is risky because important detail could be missed • Unbound statements (for example, ‘Feeling strange’) could be critical clues and are no less important in this situation than encoded terms
You are reviewing a patient’spast history that has been collected frommultiple sources	• Reviewing summarised information, a quick skim can be good • Clear context labels (for example, ‘Family History’)	• Requires judicial use of encoding and effective display of the clinical term and additional free-text • Risk of not showing valuable information (for example, date of death of father)
You have treated the patient before and are already aware of existing conditions	• Flagging new	• Complacency, not reading fully
You are reviewing a set ofexamination results	• Need detail, in a quickly scannable format (for example, columns)

Tasks – Spotting mistakes

Design exploration and findings to date

In this design, the encoded terms are for the second statement do not match the full free text.

Only one user spotted the data discrepancy unprompted

One user was confused by ‘No’ and thought it meant ‘Number’

Most users understood once prompted but admitted they would not check in real life

They did not feel responsible for the accuracy of the encoded clinical terms

Many clinicians incorrectly assumed that other people are employed to do the encoding of clinical terms and that it was not within the remit of the clinician to do it, or care about it:

   - A common myth amongst users was that SNOMED CT encoding was the same as that done for payment (ICD-10/OPCS-4)

Tasks – Spotting mistakes

Emerging themes	Evidence
_Future work:_Test an end-to-end scenario where users encode the clinical terms and then view the encoded statements so that they feel more ownership over the encoded terms	Many of the users consulted had low awareness or interest in the encoding process. As a result, they found it difficult to engage with why encoding should matter to them Current practice, particularly in secondary care, is that encoding is delegated to specialist teams or individuals Users did remark in several sessions that if they could see the whole process, and see how the encoding was being assigned, they may connect more with the display of the encoding
_Future work:_More work required on flagging of discrepancies between the original statement and the encoded terms	There needs to be a shift in attitudes, or a compelling reason for the codes to be right, for people to check and spot information which cannot be automatically detected as ‘wrong’
_Future work:_More intelligent systems are required to cross check free-text against encoding and then flag issues	Users were not looking for mistakes, so rarely found them involuntarily This could be tested as part of the end to end process above

Tasks – Editing

Design exploration and findings to date

No strong preference to click inline to edit or use a button

All users agreed there needed to be validation and wanted to understand the auditing and version control process:

- Date/author/change information was important at this point

for the auditing reasons

Users like to see a visual differentiation between the edit mode and display mode:

- For example, a border or colour

All expected to be able to edit both code and free text

Users were more comfortable when there was a label above the fields being edited

No one understood ‘View all fields’ for editing the default values

Inline editing was liked for its fewer clicks, but concerns about editing by mistake or not realising you could edit

Users liked the different colour and form field labels that differentiated the statement in edit mode

Tasks – Editing

Emerging themes	Evidence
Consider using colour or borders to demarcate the statement selected for editing Form fields available for editing should be labelled	Users preferred designs which visually separated the statement being edited from those around it *Phone interview:*“Like the colour to indicate the edit mode - useful if you were interrupted to help prompt you when you returned, or if someone else came to the screen they could see what you were about to do.” “Preferred design, colour makes it very clear what you are editing, helps you to focus on the information. Labels on edit fields are helpful. “
Users need to be able to edit both encoding and free text, and want to see how they can adjust or remove their changes during editing	Users were confused if they thought they could only edit one and not the other. *Phone interview:*“Would expect to edit full text and coding. Would like a clear/delete function to remove coding if incorrect.” “Would want to edit the free text. Expect the computer to just process the coded terms automatically, with an option to override manually if necessary.” “Expects to see free text available for editing, as well as codes. Editing codes would probably require some help/instruction text”
Editing should require a specific action by the user, either clicking an edit button or on saving	*Phone interview:*“I like it. Likes step by step approach, however, not committing, in control of the action. Not forced to make extra clicks.” “Rollover (to reveal the edit button) is a good interaction method but may need instruction text for some users.” “Worry about clicking it accidentally, or if people got click happy. Would prefer a validation/confirmation stage before actually saving something (including delete). Also, an undo function (because even then you might get it wrong)”

Tasks – Editing

Emerging themes	Evidence
Display author and date information in an editing screen	*Phone interview:*“Date and author should be visible. Who entered something (their role, seniority) has influence.” “Date/author information important in edit mode, audit trail” “Concerns about change control, original entry should be locked down, if done by someone else or at a different time. If you are editing in session then you should be able to go back in and adjust the original entry.” “Concerns over the versioning, should you really be able to edit someone else’s statement?”
_Future work:_Different ways to indicate access to editing default values	Users were not very clear on what other fields might be available to edit, and this was linked with their low understanding of SNOMED CT and the concept of default values such as subject of record *Phone interview: “*Not sure what See All fields means or does”
_Future work:_Do users understand and expect inline editing, as opposed to button based access	*Phone interviews:Mixed reactions to this interface, so suggest more testing may be needed. Favourable user comments about inline editing:* “Prefers direct access to editing - just click statement, as opposed to having an edit button.” “Prefer being able to just click in and start editing.” Negative user comments about inline editing “Safety concern that user might not realise the implications. So need some form of confirmation before change is made, or turn off for novice users” “Not preferred, likes the certainty of having to request to edit e.g. Via a button. (although this could be handled through confirmation on submit)” “Not preferred, likes the certainty of an edit button” “Looks like an admin screen, might use in a training, supervisory or auditing reporting capacity, but not clinical. Big leap from current practice/thinking” “Poorer editing experience, would not expect to click on statement and have it become editable, this would need to be learned. Expects to have to initiate the action e.g. Clicking an edit button. Risk that you could accidentally edit something by leaning on the keyboard.”

Tasks – View controls

Design exploration and findings to date

Users liked the ability to add more data into view as needed

Most users understood the plus sign as an expand control. Expected to see fuller detail (not terse encoded clinical terms)

Users like to feel in control, so the ability to add fields to views as needed was popular

‘Plus’ expand control – six of eight users understood it

However, all users thought it would expand to a fuller description and were surprised/disappointed to see a terse set of codes

Tasks – View controls

Emerging themes	Evidence
Avoid using an expansion control for revealing only the encoded terms as this is not expected behaviour – users want to see fuller detail	*Phone interviews:*“Expects this to expand, ” a tree view”, folder structure, to reveal more information. More information includes more verbose text, related statements” “Expects the + sign to expand to show full (more verbose) information, or linked statements e.g. Onset. Indicates a hierarchy, waterfall” “Dated design. Expects to see more information, longer narrative e.g. The story behind the headline”. “Expectation is that the plus sign indicates more information, more detail e.g. Date/author/coding. Maybe more verbose, not sure.” “If date/author was part of expanded view could be helpful” “Assumes will expand to show more information, specific to this patient. Fuller information”
Using a plus sign as an expansion control may cause confusion with some users when used with a negative statement	Mitigation for this would be to ensure that the visual treatment made it look like a control and not a data item*. Phone interviews:***“Odd to use a plus sign next to a negative statement. Thinks the plus sign is an icon, not a control.” “Confusing to have a plus sign next to a negative”
_Future work:_use of controls to show linked statements or more detail	Detailed exploration of view controls was out of scope, so more investigation into best ways of controlling views would be needed (or use past guidance)
_Future work:_different approaches to changing view levels	Detailed exploration of view controls was out of scope, so more investigation into best ways of controlling views would be needed (or use past guidance)

Future work summary

Area	Questions for future work
Encoded terms	What scenarios would favour showing encoded terms in isolation from free text?
Graphics and icons	Exploration of noting using graphics recommended, particularly for examination and findings
Graphics and icons	What is a safe character that can be used between code and free text?
Unbound statements	Guidelines/policies for clinicians on when statements should be encoded, versus left unbound. Test assumptions – are any/all statements to be encoded, including all ward notes? Or just those which are ‘significant’ – in which case, what are the rules for deciding this?
Related statements	Test interfaces which allow users to group and view links between related statements
Date/time	More work required on how users expect to view and interact with session times versus observation time
Date/time	What is the best way to show duration through text and timeline views
Hierarchy	Do all users find it harder to construct a care story using statements from multiple sessions and multiple patterns? What can be done with different views (for example, timeline) to help with this?
Hierarchy	How do users navigate through records with many entries
Hierarchy	What usage scenarios support showing SNOMED CT only in a separate list from the full, verbose statement
Formatting	Separator characters are thought to be a useful device, but more work is required on what is a safe device and the exact representation of numerical data in an encoded statement
Tables	Test effectiveness of having date and author line below the statement
Spotting mistakes	Test an end-to-end scenario where users encode the clinical terms and then view the encoded statements so that they feel more ownership over the encoded terms
Spotting mistakes	More work required on flagging of discrepancies between the original statement and the encoded terms
Spotting mistakes	More intelligent systems are required to cross check free text against encoding and then flag issues
Editing	Different ways to indicate access to editing default values
Editing	Do users understand and expect inline editing, as opposed to button based access
View controls	Use of controls to show linked statements or more detail
View controls	Different approaches to changing view levels

Supporting Materials

The following additional supporting materials were used in the research of this area and creation of this document:

User research detailed documentation

- Hazard log

- Plan of Record

- Design iterations

Reference documents – LRA, SNOMED CT, RCP templates, other guidance To obtain any of these supporting materials please contact cuistakeholder.mailbox@nhs.net

Distribution

Reviewers and Distribution

Name	Position	Version Approved	Date
Mike Carey	NHS CFH Project Manager	0.2.0.0	18-Dec-2009
Peter Johnson	Clinical Architect	0.2.0.0	18-Dec-2009
Frank Cross	Clinical Advisor	0.2.0.0	18-Dec-2009
Lindsey Butler	Clinical Safety Advisor	0.2.0.0	18-Dec-2009
Greg Scott	Clinical Advisor	0.2.0.0	18-Dec-2009
Priya Shah	Clinical Advisor	0.2.0.0	18-Dec-2009

Display of Clinical Statements

Display of Clinical Statements

Design Consultation Document

Executive Summary

Problem Statement

Background for Investigation

Scope Statement

Patient Safety Overview

About this design consultation

Assumptions

Introduction to scenarios

Introduction to the statement structure

CONTENT

THEME 1 - STATEMENTS

Introduction to statements

Statements – Perceptions of SNOMED CT

Statements – Free text and encoded clinical terms

Statements – Free text and encoded clinical terms

Statements – Free text and encoded clinical terms

Statements – Free text and encoded clinical terms

Statements – Free text and encoded clinical terms

Statements – Icons and graphical noting

Statements – Icons and graphical noting

Statements – Icons and graphical noting

Statements – Icons and graphical noting

Statements – Unbound statements

Statements – Unbound statements

Statements – Axis modifiers

Statements – Sequence of text

Statements – Sequence of text

Statements – Related statements

Statements – Related statements

THEME 2 – PEOPLE, DATES AND HEADINGS

Introduction to people, dates and headings

People, dates and headings

People, dates and headings – Dates and times

People, dates and headings – Dates and times

People, dates and headings – Dates and times

People, dates and headings – Dates and times

People, dates and headings – Dates and times

People, dates and headings – Dates and times

People, dates and headings – Dates and times

People, dates and headings – People

People, dates and headings – People

THEME 3 – VISUAL DESIGN

Introduction to Visual design

Visual Design – Formatting of statements

Visual Design – Formatting of statements

Visual Design – Formatting of statements

Visual Design – Formatting of statements

Visual Design – Formatting of statements

Visual Design – Formatting of statements

Visual Design – Tables and columns

Visual Design – Tables and columns

Visual Design – Tables and columns

THEME 4 – TASKS

Introduction to tasks

Tasks – Task-based design

Tasks – Task-based design

Tasks – Spotting mistakes

Tasks – Spotting mistakes

Tasks – Editing

Tasks – Editing

Tasks – Editing

Tasks – View controls

Tasks – View controls

Future work summary

Supporting Materials

Distribution

Reviewers and Distribution
