2 CONCEPTUALISATION OF CARE PATHWAYS

Electronic care pathways integrated into clinical systems are one of the key deliverables of Connecting for Health and its supplier community. These, by their very nature, span carer types, organisations, health communities and even clusters. To achieve the aims of integrated care pathways, it is necessary to define a framework which ensures that clinical best practice propagates across the NHS and facilitates the interoperability of disparate clinical systems to achieve seamless healthcare across boundaries.

The purpose of the National Electronic Care Pathways High Level Conceptual Vision {R1} document is to provide suppliers of NHS clinical IT systems with a strategic overview of the National Integrated Care Pathway architecture and define the components that make up the electronic care pathways service. This document will also describe the expected local interactions with National elements at a conceptual level.

This document is written on the premise that IT systems deployed to the NHS will vary in both capability and NHS Care Records Service (NHS CRS) compliance, and that the NHS will operate in such a heterogeneous environment for the foreseeable future. Any framework for electronic care pathways must therefore both:

Accommodate systems delivering basic electronic care pathways integration (recognising that this will add value to care professionals)
Support their transition to advanced integration with electronic care pathways and the patient record

2.1 Overview of Care Pathways

A care pathway maps out a consistent set of decisions and activities relating to one or more issues or problems. The aim is to define a structured process of care in order to achieve specified goals. Care pathways present current best practices supported by an evidence base. A care pathway enables the variance between proposed and actual care to be audited, and best practice to be refined accordingly.

In essence, a care pathway comprises a set of stages of care. Each stage of care has associated bundles of care activity, which defines what should be recorded about the care. In addition, it should be delivered in such a way that any variance between proposed and actual care can be audited, and local practice refined accordingly. Once a stage of care is assigned to a patient, it becomes a care pathway in-use, which is recorded in the patient record.

A care pathway may specify the goal and/or expected outcome of the care. In achieving this, the care pathway determines:

The stages of care
The bundles of care activity
The items of care activity within each bundle
The data required to complete the prescribed care
The decisions and choices that may be appropriate (with supporting arguments)
The actions to be carried out, by when, and by whom

At any point through a care pathway, there may be references to prescribed guidance or care protocols.

Page 2

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

For further information on electronic care pathways, please refer to National Electronic Care Pathways High Level Conceptual Vision {R1}.

Page 3

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

3 APPROACHES EXPLORED

Research conducted on the visualisation of the care pathways has looked at a number of different approaches as listed below:

Gantt chart view
Long term conditions
Logic and key decision points
Sub pathways
Variant triggers

This list is not exhaustive and further research will need to be undertaken as highlighted in section 3.3

The aim of this document is to explore one example of visualisation style for care pathways that can be seen in section 4.This is an initial investigation, and further research, user testing, patient safety assessment and supplier participation are required to define the final guidance.

The work described in this document follows on the past work completed on care pathways as detailed in NHS CUI Toolkit Demonstrator Release Build 3.2.161.001{R2}. This earlier work produced a prototype of care pathway in use, for one approach of how a care pathway could be manifested within a clinical application. This initial approach focused on a simple linear care pathway which was limited in functionality but revealed some of the complexities of attempting to integrate the disparate elements of care within one single view. The model described later in this document builds on this initial approach and adds further complexity.

3.1 High Level Objectives

The high level objectives were to:

Show visible long term, cyclical pathways
Show more than one pathway simultaneously
Show pathways within pathways
Show interaction between pathways

3.2 Design Exploration to Date

3.2.1 Gantt Chart View

Approach Explored

The approach explored in this visualisation was one based on Gantt chart structure evident in many project plans.

Reasons for Exploration

The Gantt chart approach was considered for two main reasons:

Different pathways can be presented vertically, at the same moment in time
Gantt Charts are an accepted way of illustrating long term plans

Page 4

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

Nature of Exploration

The key premise for this approach was the intent to structure a care pathway in a vertical layout that utilised best practice structuring of plans using tasks, milestones and bar charts to visualise the time element of the plan.

Advantages and Disadvantages of Approach

The Gantt chart approach seemed superficially attractive from the point of view of storytelling. It is a cognitive style that was recognised as an option, and it seemed obvious as a potential solution.

However, as soon as an attempt was made to make parallel pathways sit on timelines, all of the benefits of the pathways they currently provide disappeared:

Items might get forced off the screen because a user chooses to look at another time on a parallel pathway
Display of sequence and causality are more important than time
It would be hard to display and print a long Gantt chart
It is not possible to use the full width of the screen to display the maximum amount of information

Outcome of Exploration

Following the initial analysis and exploration, the Gantt chart approach was stopped due it its unsuitability for representing the complexities of care pathways.

3.2.2 Long Term Conditions

Approach Explored

Long term conditions provide an overview of care and emphasise the nature of repetition. That is why the suggested visual designs use the circular diagram as an addition to the conventional pathway.

Reasons for Exploration

The view of long term conditions is cyclical. Therefore there is a need for these conditions to be shown as circles as they are often visualised as such.

Advantages and Disadvantages of Approach

This approach attempts to give overall context of the current care within phases, to show that phases repeat an indeterminate number of times, and to provide access to previous phases.

The level of detail that can be shown on these views is rather limited. In addition, they give the impression that the kind of stages and bundles of care items on a long term pathway are fundamentally different in nature to those on a linear pathway, which in practice, is not true. Patients still do get investigated, assessed and treated.

Everything a user learns about using a linear pathway should apply to care that happens over a long term period.

Page 5

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

Outcome of Exploration

As a separate concept, this exploration was stopped due to its unsuitability for representing care pathwaysin a similar way to that produced for a linear care pathway. However, elements of the cyclical exploration have been carried forward into the visualisations presented later in this document.

3.2.3 Logic and Key Decision Points

Approach Explored

The approach explored in this visualisation was one based on the flowchart-like nature of care pathways currently in use across health care.

Reasons for Exploration

The care pathway prototype created during Release 3 did not include the logical flow, the decision points or the flowchart-like nature that is inherent in the authoring and design of care pathways.

Nature of Exploration

At the point of delivery of care, Health Care Professionals (HCPs) already know the decisions they are making. Because they have learned this during their training, they do not need a system to record their ongoing decision-making process. Furthermore, they continually make assessments of the patient’s condition.

Advantages and Disadvantages of Approach

A simple visual aid should not make the pathways look like flowcharts, but it would help in flagging key assessment moments.

It is clear that there are key decisions that result in pathways being joined or not being joined, and pathways that show a little more of this logic could be very helpful. That is why a simple, visual way of doing this could be useful.

Outcome of Exploration

The key aspect of this exploration was revealing the need for simplicity in the manifestation of care pathways. This element was carried forward into the visualisations presented later.

3.2.4 Sub-Pathways

Approach Explored

It is clear that viewing multiple pathways in parallel is only one aspect to consider. Essentially, some pathways run in parallel, and some are enchained, such as rehabilitation following surgery.

Reasons for Exploration

It may be that at the XML level, a parent pathway has children and that pathway contains subpathways. But what happens in reality is that rehabilitation follows discharge from the ward, and is required the moment the recovery milestones are missed.

Nature of Exploration

This exploration assessed the concept of paused and suspended pathways.

Page 6

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

Advantages and Disadvantages of Approach

The reality is that HCPs need to be aware of the existence of a long term condition, and will either manually adjust care, follow other routes, or add sub-pathways because they can see that a patient is on a long term pathway. This approach allows them to do that.

Boundaries of care often sit at the junction of sub-pathways which was revealed during this investigation.

Outcome of Exploration

As a separate concept, this exploration was stopped due to its unsuitability for representing care pathways in that the view should be similar to that produced for a linear care pathway. However, elements of the need to ‘pause’ a care pathway have been carried forward into the visualisations presented later in this document.

3.2.5 Variant Triggers

Approach Explored

Investigation into triggering changes, variants to existing pathways or additional pathways though adding a care pathway.

Reasons for Exploration

Trigger and variant changes to existing pathways that resulted from adding a new care pathway were investigated.

Advantages and Disadvantages of Approach

The current care pathway schema does not support the business logic for ’If pathway Y is added, modify pathway X in the following way’.

This approach would also have an impact on decisions made by clinicians and nursing staff.

Outcome of Exploration

This approach was briefly explored but was rejected as an option, through audience design iteration. It was suggested that this is explored in the next phase of care pathway visualisation.

3.3 Further Exploratory Work Required

The aim of the care pathway investigation in Release 4 of the NHS CUI Design Guide Workstream was to produce a set of initial visualisations of care pathway models for clinical applications.

Having produced this document, the activities listed below are suggestions which aim to evaluate the requirements in terms of accuracy and completeness:

Review, enhance and conduct comparative design for the visualisation requirements during Phase 2
Perform extensive user research and user testing to determine the most appropriate design paradigm for care pathway guidance, covering questions such as:
- What is the most appropriate way to display a care pathway on screen?
- How much of the care pathway can be integrated into a clinical application?

Page 7

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

Can a view of the pathway be opened at the same time as working within the clinical system?
How do users know that an item (for example, a task) that they receive belongs to a pathway?
How does automated messaging interact between HCPs on different pathways?
How is automatic flagging of identical actions on different pathways managed?
How is zoom used to view different levels of detail (both high level and detailed)?
Develop designs further:
- Provide visible mechanisms for starting and stopping pathways, for shifting phases, for deleting or varying items, and so on
- Show the hierarchy of justification
Select the appropriate design paradigm from the comparative design activity
Refine selected designs
Produce Design Guide guidance for care pathways

Page 8

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

4 VISUALISATION OF CARE PATHWAYS

In this section, examples of care pathways used within clinical applications are demonstrated. The designs presented are illustrative only and show one potential design paradigm that can be used to manifest care pathways within a clinical application.

4.1 Design Goals

The design goals are to:

Achieve simplicity for the user. Although the care pathways inevitably become complex, it is important to keep the cognitive load low for the user.
Maintain key benefits of user experience design, such as lack of scroll bars, content and window management. The environment should adapt to the user’s focus, and not vice versa.
Provide both a high-level overview and a low level of detail, for example, understanding what the situation is with this patient, as well as what has just happened, or what is about to happen with this patient. Both high-level and low-level views are necessary.
Create a visual representation of the structure of care that matches the view of a healthcare professional.

4.2 User Requirements

The user requirements are to:

Provide information to answer questions such as:
- Where is the patient on the pathway?
- How far along is the patient from the start of the pathway?
- How far is it for the patient to the end of the pathway?
- How many pathways is the patient on?
View only a pathway that is of interest, whilst diminishing other pathways (letting them fade to the background)
Communicate clearly when something goes wrong within the pathway, and when and where abnormalities for a patient occur
Communicate the stages and bundles that have gone right
Provide historical information to answer questions such as:
- How did this patient arrive on this pathway?
- Who is delivering this care?
- What is the team’s responsibility?
Show clearly any national guidance that drives a particular pathway

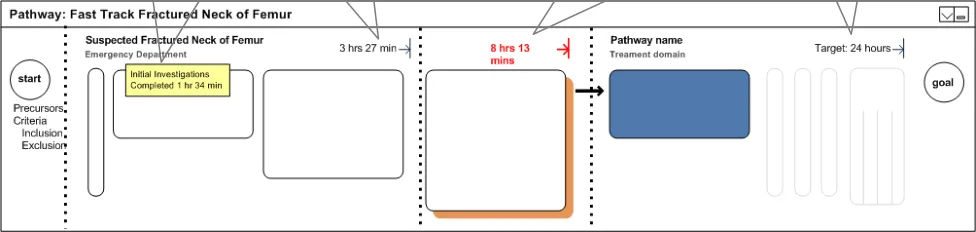

Show the key time targets, if they have been met, or if they will be missed
Make information on geographical locations of the care being delivered easily accessible

Page 9

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

Show how pathways (in cases where a patient is on more than one pathway) are joined together, and the key decisions or assessments that have sent a patient down those particular routes

4.3 Visual Vocabulary

The aim is to show the range and variety of states that have to be dealt with in a live implementation. The suggested designs are wireframes only and not pixel-level designs.

The assumption taken during the design stage was that the colour, pixels and particular widget-sets are part of that level of implementation.

However, the designs enumerate the features and elements that such an implementation would have to cover, which are:

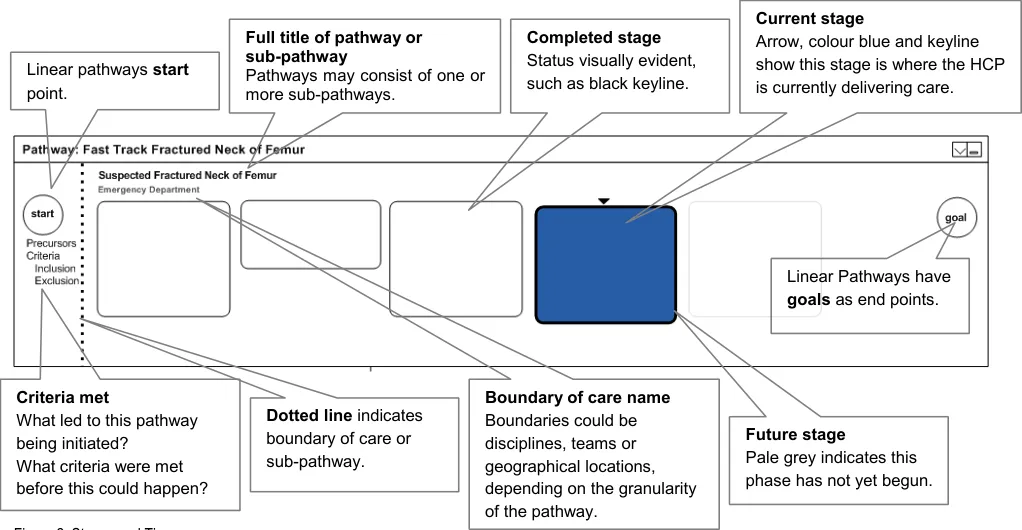

Pathway title
Pathway stage title
Pathway status icon, colour, description
Pathway minimise, maximise and ‘mediumise’ icons

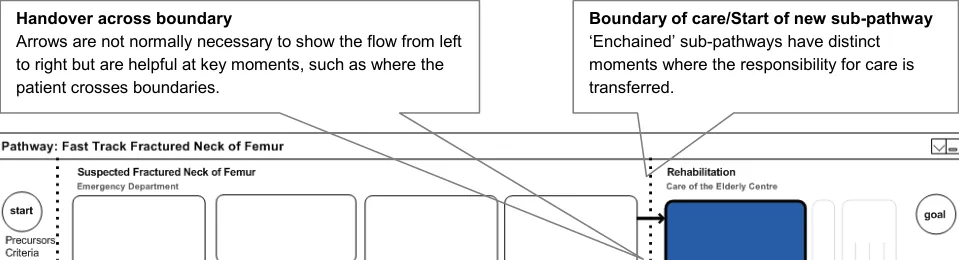

Boundary of care separator, title
Boundary of care collapse and open widget

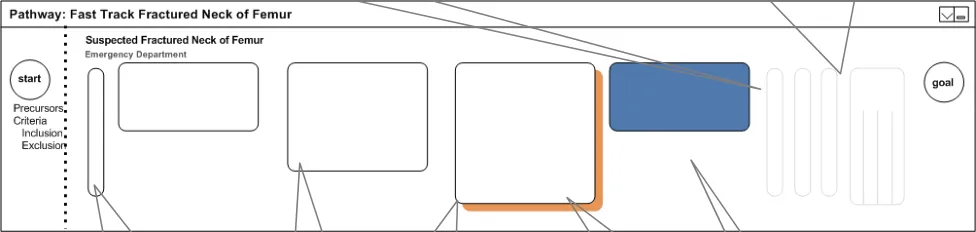

Stage container
Stage container past, current, future

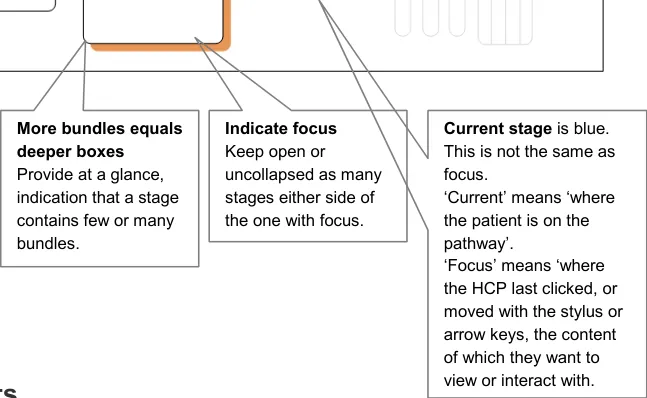

Focus for stage
Current stage indicator icon
Bundle typography, iconography: past, completed, failed, future, unattempted, variant, warning, and so on
Start of linear pathway
End of linear Pathway
Goal for pathway
Outcome for pathway
Crossing care boundary arrow

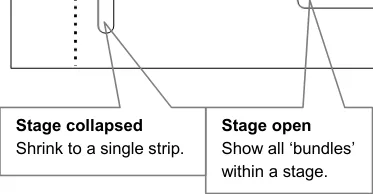

Collapsed stage
Collapsed multiple stages container
Stage status icon - success, failure and warning
Stage mouse-over - extra information
Team icon
Info icon
Target time icon
Time typography for actual, target, and missed target statuses
Splitter drag pointer icon

Page 10

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

Group stages begin, end icons and description (for example, day of operation)
Key decision point
Key decision typography
Other routes, sub-pathways heading and arrow, with and without focus, in past, current and unattempted modes

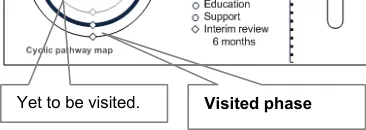

Phases (cycles)

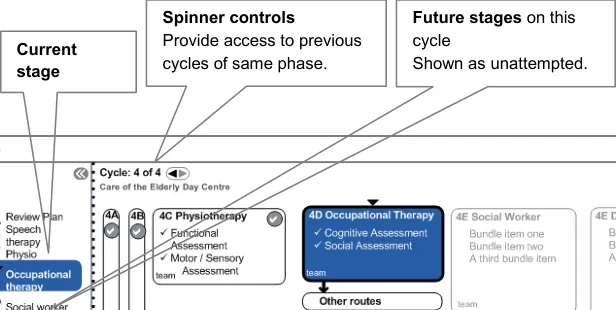

Milestones, reviews and care stages on cycles

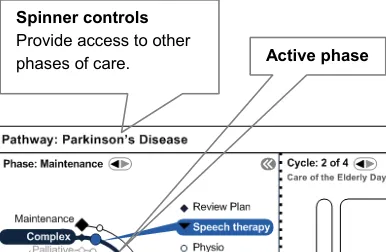

Spinner controls to advance and retard phases and cycles
‘You are here’ indicator
Cycle focus is here indicator
Cycle repeats indicator with periodicity
Collapsed mini version of the cycle diagram

Page 11

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

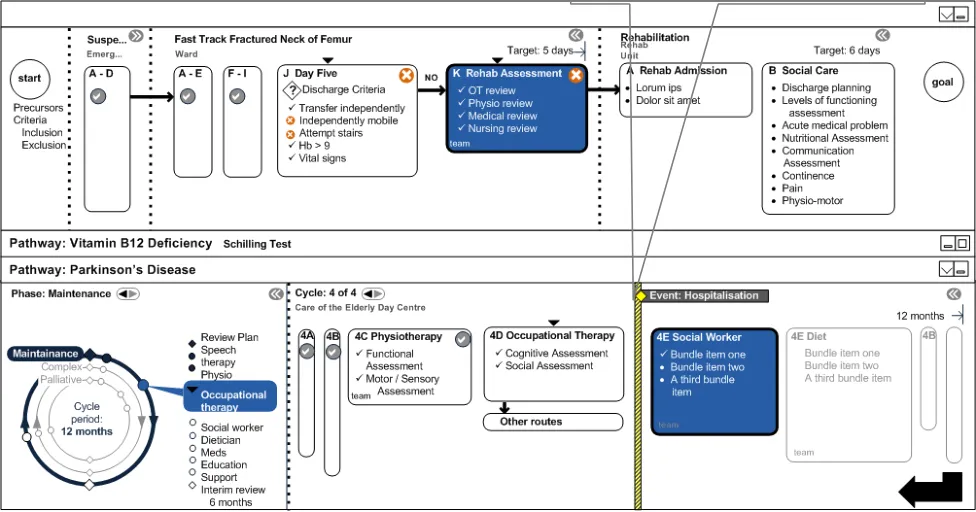

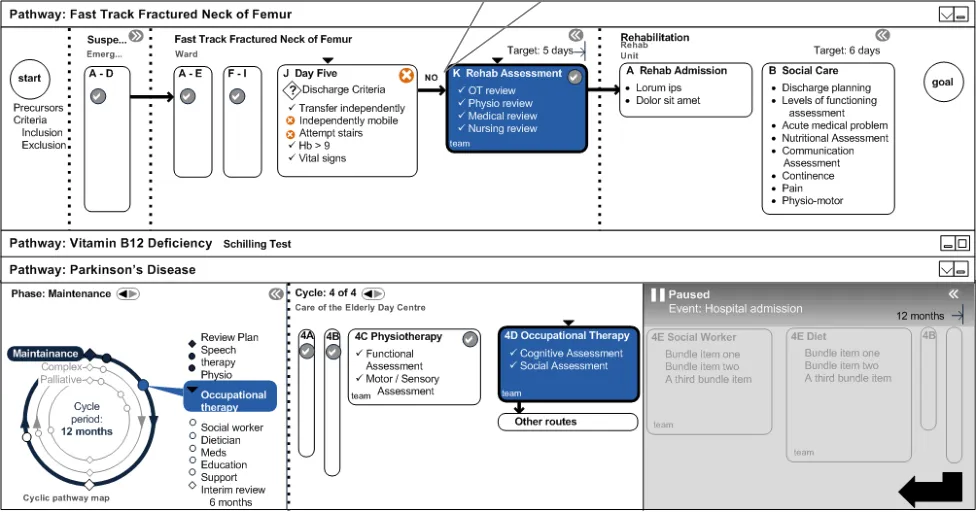

4.4 Designs Discussion Wireframes

4.4.1 Multiple Pathways

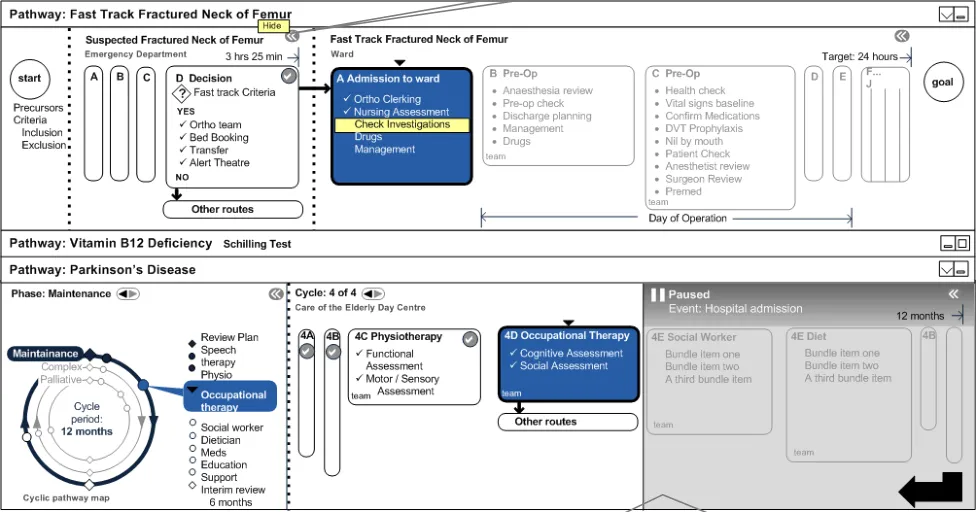

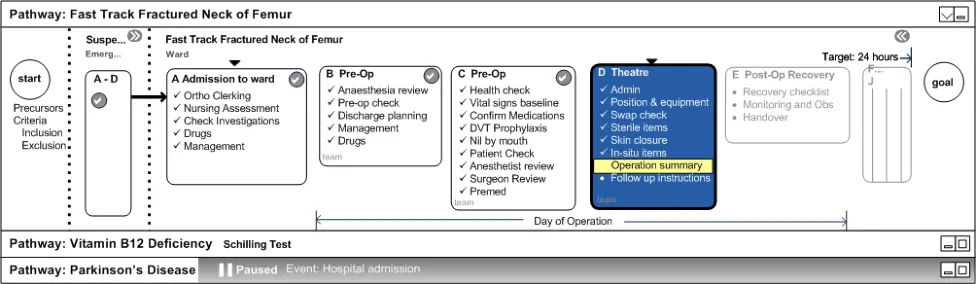

The suggested design of wireframes supports user needs by providing information related to the following (as illustrated in Figure 1):

Title bar with name of pathway
Stack pathways vertically (if there is more than one pathway)

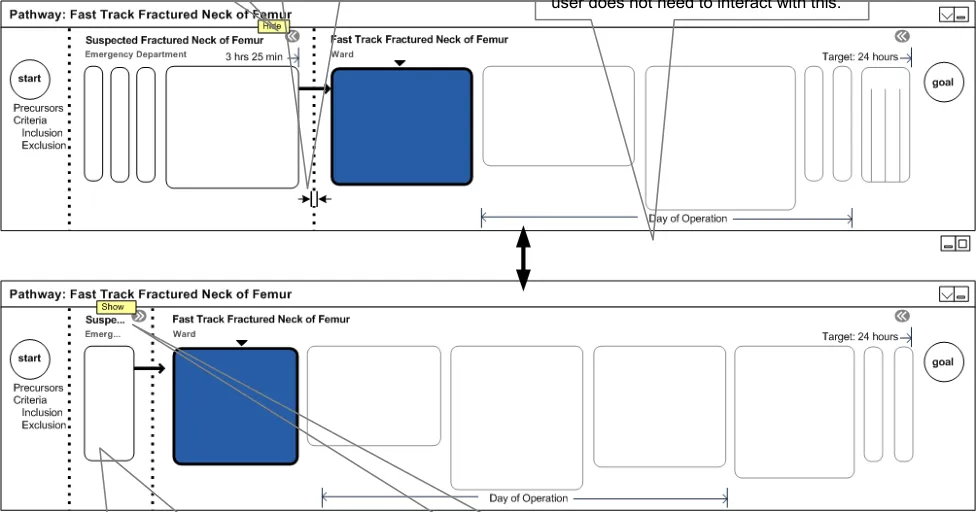

Provide access to expanding and collapsing on the right (as window controls)
Show minimal state information for collapsed pathways
Show pathways that are in an abnormal state together with the reasons
Show the number of pathways that the patient is currently on
Allows users to shrink (but not entirely forget) the pathways that are not relevant to their immediate tasks
Provide minimal (but some) context about other pathways
Enable users to get to more detail if they require
Show anything abnormal so that the user can decide if it’s relevant

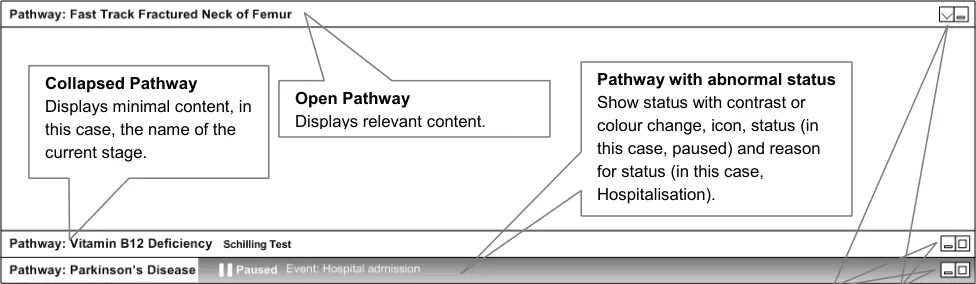

Figure 1: Multiple Pathways

4.4.2 Stages and Time

The following list of statements is taken into consideration for stages and time designs of wireframes and is illustrated in Figure 2:

Pathways are displayed left to right
Pathways consist of a set of stages
The expected sequence of stages runs left to right
Linear pathways have distinct start and goal points
Stages are either completed, current or future

Page 12

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

The Graphical User Interface (GUI) attempts to create visual precursors to what led to a patient being placed on a pathway
It shows if a patient is on a linear pathway
Enables the user to see how many stages a patient’s pathway comprises
Shows where and by whom (geography, team, trust, and so on) the care is principally being delivered to
Provides info about how far along the pathway the patient is
Clearly displays what is completed and what remains to be done

Page 13

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

4.4.3 Care Boundaries

The care boundaries demonstrate the key patient handover periods. From the user’s perspective, it shows when a patient leaves the team’s care as well as provides an overview of the different teams, locations and disciplines that comprise this patient’s care. Figure 3 shows an example of care boundaries:

Figure 3: Care Boundaries

4.4.4 Showing Everything

The key design objective is to be able to show all stages on a pathway at all times, as shown in Figure 4. In addition to this, it is important to avoid the use of scroll bars.

In many interactive environments, scroll bars allow users to move a portion of the document off the screen. A pathways interface should avoid this, in preference, by shrinking stages to thin sections, or by shrinking groups of adjacent stages to composite blocks. A moving focus should expand and collapse stages to provide a relevant view.

A screen should always be able to show the detail for at least three stages:

What has happened
What is happening
What will happen next

It is important that the context of where the patient is, within the overall pathway, is not lost.

Furthermore, the HCP always needs to be aware of the stages that have passed, those that are to come, as well as the location of the patient within the overall pathway progress.

Page 14

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

Figure 4: Showing Everything

Another use for care pathways is to objectively provide information on met and missed targets. These targets do not refer to the time a patient takes to respond to a treatment, but rather the actual time the HCP takes to complete the well-understood procedure.

Displaying these targets will allow the user to have a clear idea of how long a pathway will take before it is completed. In addition, it will allow the user to understand that targets that have been missed and/or successfully achieved as shown in Figure 5:

Full details Displaying full details for every stage would be distracting but they should be accessible, such as on mouse-over

Figure 5: Met and Missed Targets

Actual times (target time achieved) Indicating the time taken to complete this sub-pathway.

Missed targets Knowing that a sub-pathway or key target time was missed might warrant a different visual display.

Target times The target times for the final stage of a pathway.

Page 15

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

4.4.6 Sub-Pathways

From a clinician’s point of view, a pathway is only closed when a patient reaches the end of a pathway, dies, or moves to a completely different pathway. Taking this into consideration, the following designs avoid the concept of a closed pathway.

The suggested designs, as shown in Figure 6, put the control of collapsing sub-pathways firmly in the user’s hands. It provides widgets for expanding and contracting a pathway. It also removes the detail of the pathway, whilst maintaining visibility of existing sub-pathways. All this will allow more space for the sub-pathway, where care is being delivered, or where detailed content is being viewed, to be shown.

Group stages that belong together, such as Day of Operation. This is a concept that is neither a sub-pathway, nor a stage, nor a care boundary. However, it needs to be visible but the

Figure 6: Sub-Pathways

4.4.7 Status of Stages

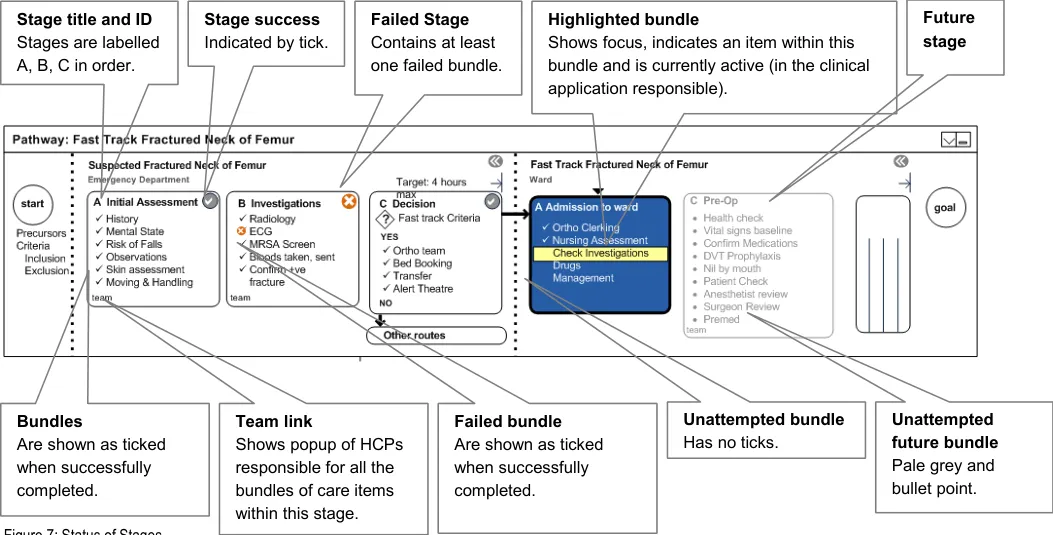

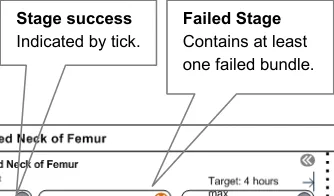

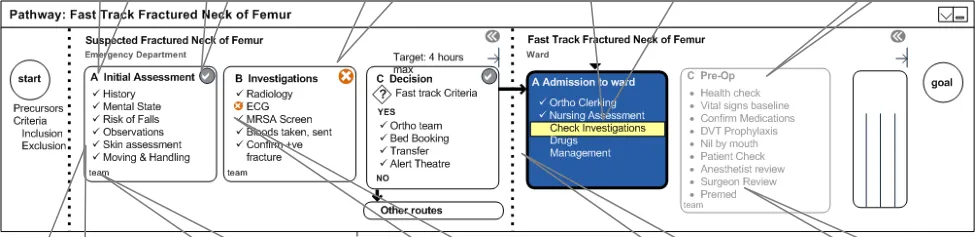

Stages and bundles display their status through colour, contrast and symbols.

The explored design, shown in Figure 7, uses the tick and cross icons to provide status for stages at a glance. Similarly, for the status of bundles, the design uses a tick, a cross or a bullet icon.

It also uses, but does not rely solely upon, colours. It shows the currently attempted task in high contrast.

Page 16

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

The use of colour, contrast and symbols helps the user to focus on what is to be done immediately. It also helps to inform the user that there is a problem, to show which bundle within the stage has caused the problem and to depict that a whole stage has completed successfully.

The display of these statuses also provides the feedback on what has been done for a patient, thus preventing a clinician repeating the work of others. In addition, it provides information on who provided the care for this patient in the past.

4.4.8 Decision Making

Pathways involve many decisions. An interface that showed all decision points would be overwhelming. The following designs purposefully restrict the amount of logic that is displayed (for example, other routes).

There are some key decision points where some kind of triage or assessment occurs, that should be visible at a glance. There is no special design for a stage that contains a decision point. Instead, a flag symbol displays, in place of the tick or the cross, to indicate that a bundle is actually a decision point.

Typical decision stages might involve sending the patient on another pathway (sub-pathway). These might involve more that two possible outcomes. Figure 8, design key decision or branch points are clearly visible, whilst hundreds of smaller, implicit decisions are hidden from the user.

Page 17

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

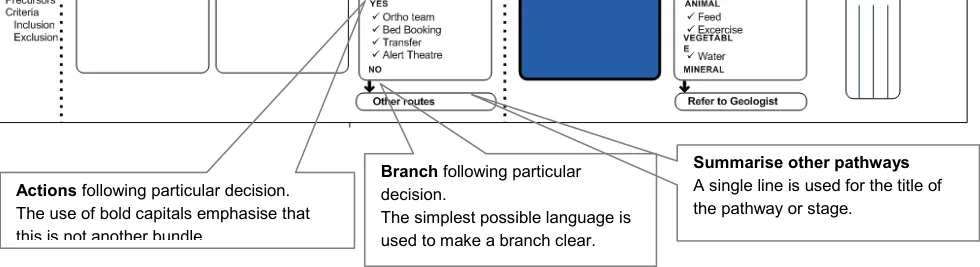

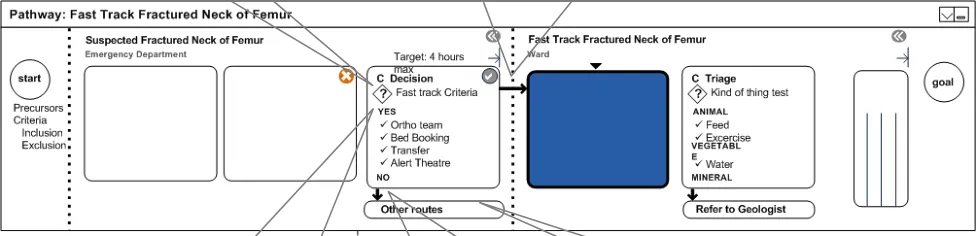

Arrows Used only when (i) stage contains key decision or (ii) flow could pass to other (sub)pathway.

Key decision point

Figure 8: Decision Making

4.4.9 Long Term Cycles

Long term conditions are typically cyclical where the care repeats periodically. As the condition progresses, patients typically shift to more intense, complex patterns of care. The example used in the Parkinson’s disease scenario has three cycles or phases:

Maintenance
Complex
Palliative

A patient might go round a maintenance cycle several times. The phases as shown in Figure 9 are represented as concentric circles.

Each cycle has a review, and a set of care episodes (stages). The same visual vocabulary as conventional linear pathways is used throughout, but without the start and goal symbols.

The benefit to the users is that they understand from this that care, in this instance, is long term and that it repeats over a set period of time. It makes the progressive nature of disease/care phases evident.

However, the delivery of care is still serial, linear, and compartmentalised: previous stage, current stage, next stage.

It also allows the user to visually see the relationship between assessment and care episodes and provides easy access to previous cycles and other phases through use of spinner controls. On click of the spinner control, a user will be presented with completed stages/bundles from the previous cycle.

Page 18

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

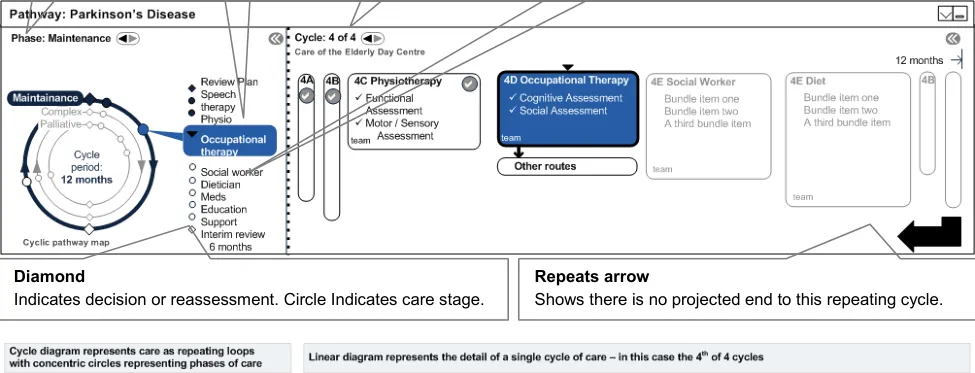

Current Phase Provides access to other phases of care.

Figure 9: Long Term Cycles

4.4.10 Phases of Care

A phase is a major shift in the patient state which warrants a major shift in a patient’s care plan. Long term conditions typically have more than one phase, for which a care could be cyclical. Repeating an acute event causes another shift in the care phase.

Figure 10 shows visual mechanisms for visited and unvisited phases:

Figure 10: Phases of Care

Page 19

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

4.4.11 Linked Focus

Shifting focus in the linear diagram shifts focus on the cyclical diagram. This is also true for shifting the focus from the cyclical diagram to the linear diagram.

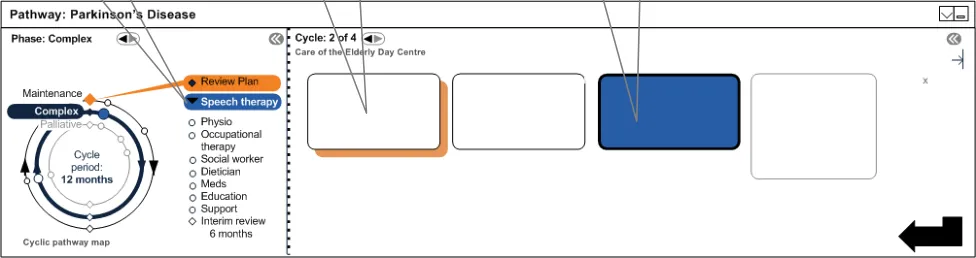

This feature allows the user to explore other phases and other stages of the pathway, and helps them to understand implicitly that the two interfaces are representations of the same thing. This is illustrated in Figure 11:

Show focus Stage with focus Stage patient is at

Figure 11: Linked Focus

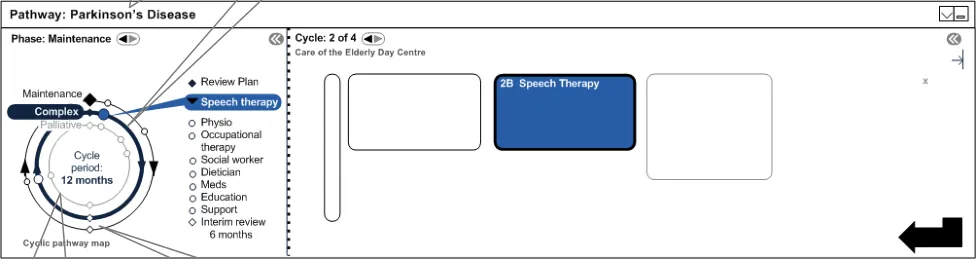

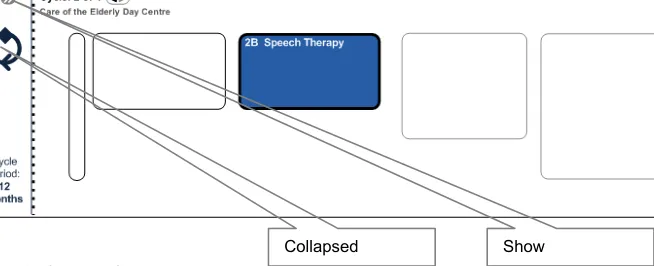

4.4.12 Collapsing Cycle Diagram

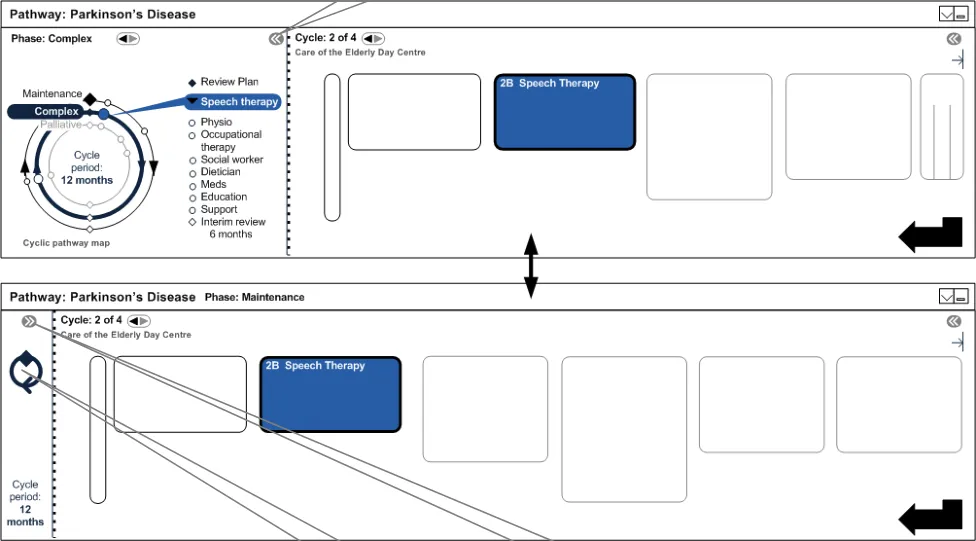

Given that the user’s screen is limited in terms of space, it is important that the cyclical diagram in the pathway can be collapsed, thus making more space for stages to be displayed. Figure 12 explores this option: Hide

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Page 20

Microsoft and NHS Connecting for Health Confidential

4.5 Scenario

The following scenario describes a patient’s journey from the moment the patient was involved in an accident. It also takes into consideration the patient’s medical history.

The steps that the patient moves through are listed below, highlighting the key moments that best demonstrate how the features and elements are used to visualise the use of the suggested designs. Not all steps are visualised.

Patient’s journey steps:

Note

The steps in bold are the examples that are demonstrated in section 25.

Patient is diagnosed with Parkinson’s Disease (PD) and placed on a long term pathway (maintenance phase)
Patient is diagnosed with vitamin B12 deficiency and is placed on a long term pathway
Patient repeats PD annual cycle four times
Patient has completed physiotherapy and is due for occupational therapy (OT)
Patient falls at home, 999 is called
Paramedics attend
Patient is admitted to the Emergency Department
Patient record is accessed by the doctor
Existing pathways are opened
Patient is placed on suspected fractured neck of femur (fast track) pathway
Parkinson’s pathway is placed on pause
Parkinson’s HCPs are messaged with new patient status – planning and scheduling activities occur
Patient is assessed and confirmed for fast track (sub-pathway)
Patient is moved from Emergency Department to Ward (Orthopaedic) – boundary crossing
Orthopaedic team collapses view of Emergency Department activities to focus on their stages of care
Patient is assessed for surgery
Patient is prepared for surgery
Patient goes to theatre for hip replacement
Patient spends five days in post-op recovery
Patient fails day five milestones for recovery
Patient is referred to rehabilitation unit
Patient is assessed for rehabilitation
Patient is admitted to the rehabilitation unit and is placed on the rehabilitation sub-pathway – boundary crossing
During rehabilitation, Parkinson’s HCPs open pathway to see the state of the patient. Hospitalisation event is clearly visible within PD pathway.
Parkinson’s disease HCPs reassess patient, and place or restart patient on a new version of the Parkinson’s pathway

Page 21

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

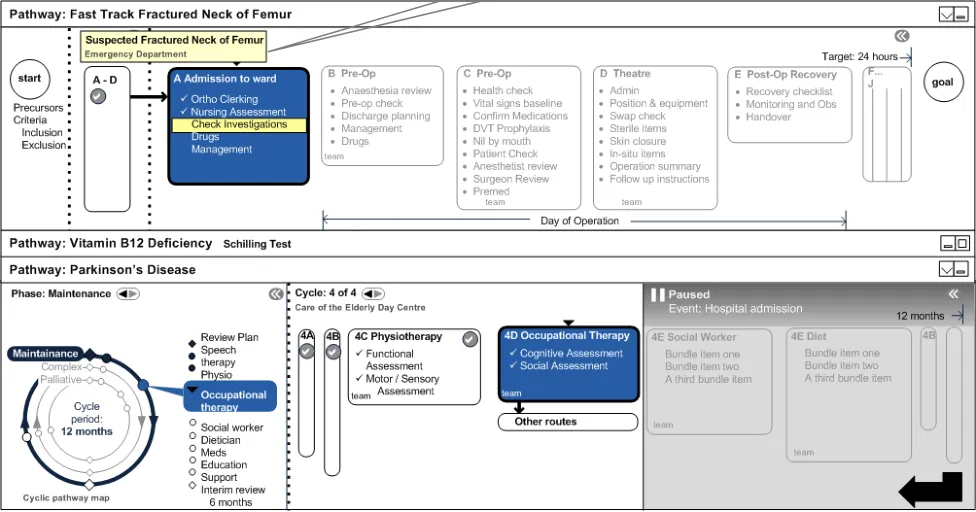

4.6 Scenario Illustration Wireframes

4.6.1 Patient Arrives at Emergency Department

The Senior House Officer (SHO) opens the patient record and discovers that the patient has been placed on two pathways, as shown in Figure 13. He collapses the Vitamin B12 pathway and takes a moment to check and see from the system that the patient has recently seen the OT, and is due for an assessment with the social worker.

Figure 13: Patient Arrives at Emergency Department

4.6.2 Start Neck of Femur (NOF) Pathway

The SHO initiates the fast track pathway. The fast track is the Suspected Fractured Neck of Femur Pathway. The long term pathway that the patient is on, displays as paused due to a Hospital Admission Event as shown in Figure 14:

Figure 14: Start NOF Pathway

Paused (automatically or manually)

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Page 22

Microsoft and NHS Connecting for Health Confidential

4.6.3 Patient Admitted to Ward

The patient passes the fast track criteria in the Emergency Department and is admitted to the care of the Orthopaedic team in a ward, as illustrated in Figure 15: Click

Figure 15: Patient Admitted to Ward

Orthopaedic team can contact social work/Parkinson’s team to let them know of patient’s admission to hospital. This could be automatic, but would depend on planning/scheduling/messaging architecture which is beyond the scope of this document.

Page 23

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

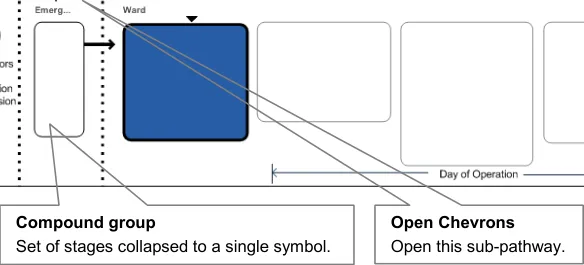

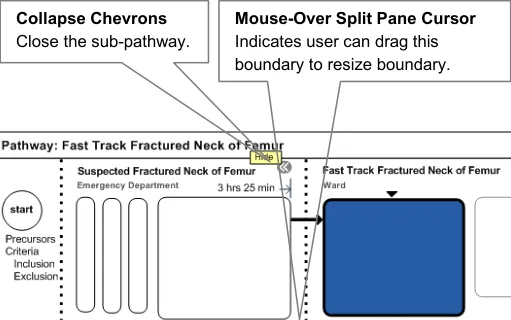

4.6.4 Sub-Pathway Collapsed

Enchained sub-pathways that the patient is following are shown in Figure 16 as sequential steps, and are also shown as joined on the same ‘parent pathway’.

On mouse-over, it is possible to see full details of shrunk sub-pathway.

Figure 16: Sub-Pathway Collapsed

4.6.5 Surgery

In the example in Figure 17, the patient undergoes surgery and the Parkinson’s pathway is collapsed.

Note

A Day of Operation marker for a grouped set of stages displays within a sub-hierarchy.

Figure 17: Surgery

Page 24

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

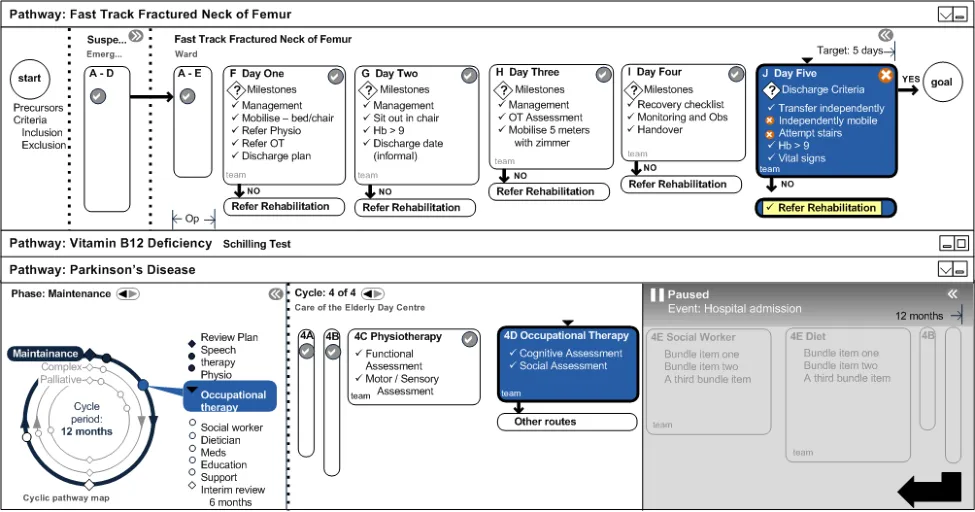

4.6.6 Post-Operation Stage

The patient reaches the Day Five stage post-op, which may or may not be five numerical days after surgery. The example is illustrated in Figure 18:

Figure 18: Post-Operation Stage

Page 25

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

4.6.7 Rehabilitation Assessment

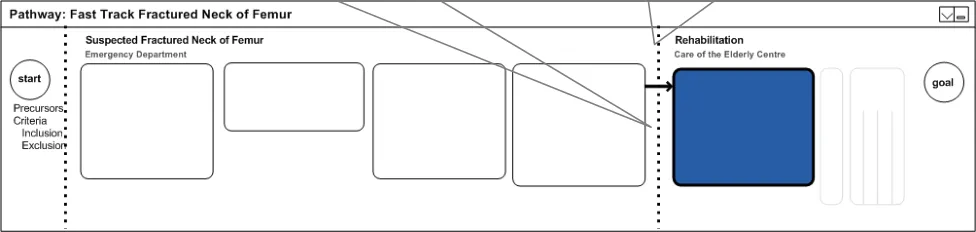

The following designs, illustrated in Figure 19, suggest the first stage of rehabilitation. Any decision making by the clinician at this time might reveal an extra phase.

Stage K is new, based on discharge criteria failure.

Figure 19: Rehabilitation Assessment

Page 26

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

4.6.8 Rejoin Long Term Parkinson’s Disease Pathway

During rehabilitation, the patient’s long term Parkinson’s Disease pathway is restarted. The social worker is able to pay visits to the patient in the rehabilitation unit. The design in Figure 20 also demonstrates the use of the hospitalisation event to indicate that something happened between the stages.

If PD HCPs check the system, they may not automatically see the NOF pathway or its recorded outcome once it has been closed. However, they should see the hospitalisation event which should link them to the relevant pathway/records.

Long term care resumed PD team can reassess their care plan and pathways/phases of care at this point.

Figure 20: Rejoin Long Term Pathway

Page 27

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

5 DOCUMENT INFORMATION

5.1 Terms and Abbreviations

CRE Care Record Elements

CUI Common User Interface

GUI Graphical User Interface

HCP Health Care Professional

NHS National Health Service

NHS CFH NHS Connecting for Health

NHS CRS NHS Care Records Service

NOF Neck of Femur

NPfIT National Programme for Information Technology

OT Occupational Therapy

PD Parkinson’s Disease

SHO Senior House Officer

Table 1: Terms and Abbreviations

5.2 Definitions

NHS Entity Within this document, defined as a single NHS organisation or group that is operated within a single technical infrastructure environment by a defined group of IT administrators.

The Authority The organisation implementing the NHS National Programme for IT (currently NHS Connecting for Health).

Current best practice Current best practice is used rather than best practice, as over time best practice guidance may change or be revised due to changes to products, changes in technology, or simply the additional field deployment experience that comes over time.

Table 2: Definitions

5.3 Nomenclature

This section shows how to interpret the different styles used in this document to denote various types of information.

Body Text

Code, script and other markup languages within the main text are denoted with monospace text.

Interface dialog names, field names and controls are denoted with bold text.

Folder and file names are denoted with Title Case text.

Page 28

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007

Microsoft and NHS Connecting for Health Confidential

Cross References

Cross references to other sections in the current document comprise a section number. Cross references may also be to figures and tables, where the caption number only might be shown.

References to other Project documents are shown in italics. Footnotes with additional details may also be used.

References to sections in publicly available documents are shown in italics and the document referred to will be given as a footnote.

References to other external Web-based content are shown in italics and a hyperlink will be given as a footnote.

Code Fragments

This document uses courier font plus a shaded background to denote code fragments. For example, the following shows part of the standard header included in a Visual Basic script file:

hwnd = 0 ’** window handle **

hwndHelper = 0

debugx = 0

Set objArgs = WScript.Arguments

Command Lines

This document uses courier font plus a shaded background to denote command line entries – text to be entered is highlighted in bold. For example, the following shows the command to be executed to display the cmd help text:

C:> CMD.exe /?

5.4 References

R1. National Electronic Care Pathways High Level Conceptual Vision 0.4 31-Jan-2007

R2. NHS CUI Toolkit Demonstrator Release Build 3.2.161.001

Table 3: References

Page 29

NHS CUI Design Guide Workstream, Care Pathways Conceptual Modelling Prepared by NHS CUI Programme Team, Version 1.0.0.0 Baseline Last modified on 28 March 2007
